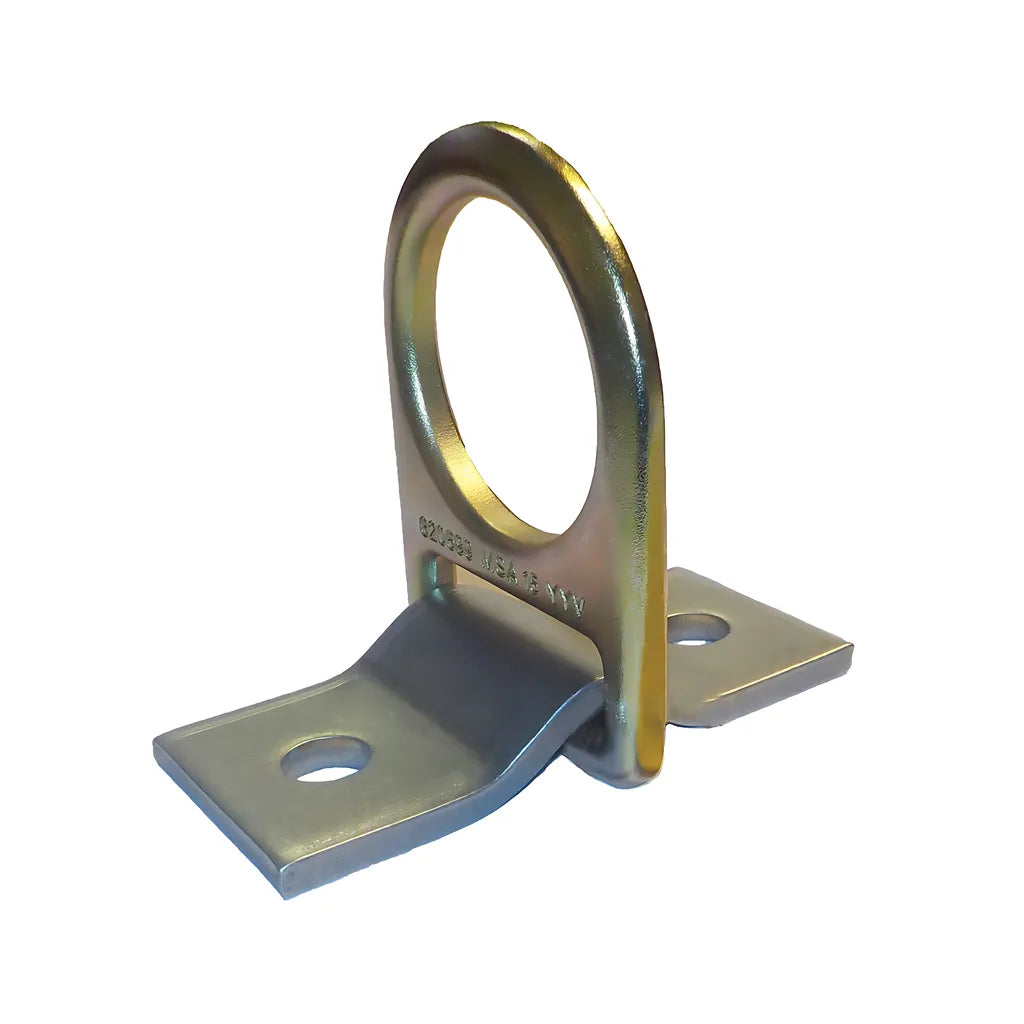

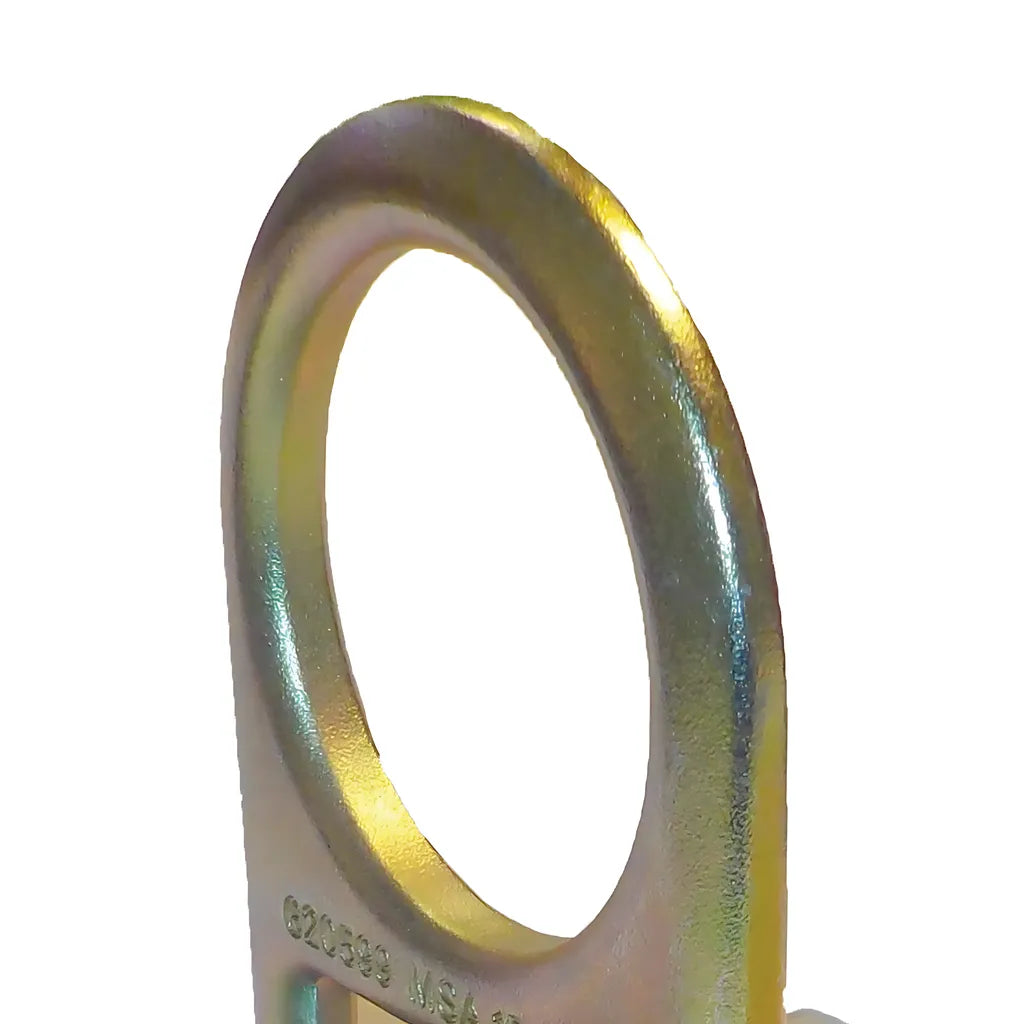

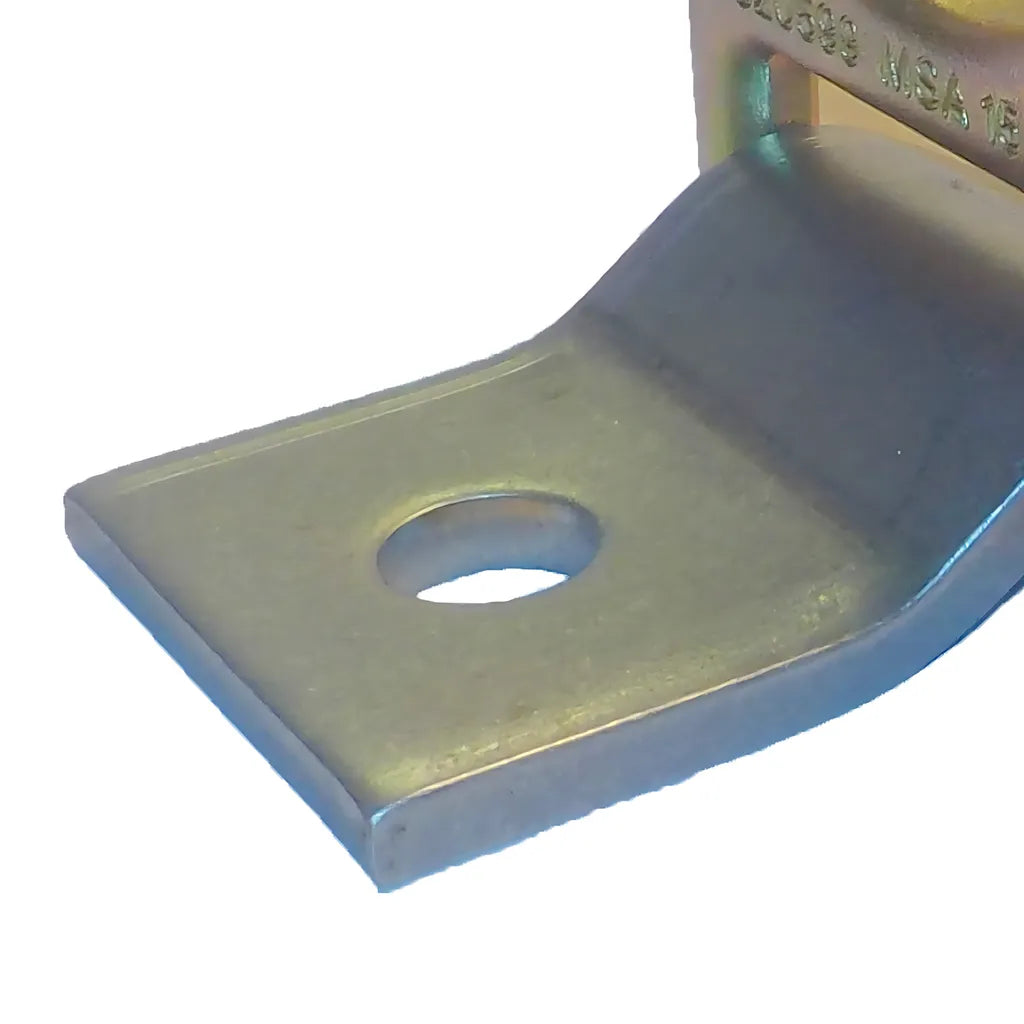

The Bolt On D-ring Anchor can be used in temporary or permanent applications. Design allows for free movement of D-ring after installation. Ideal for use as a single point anchor or as part of a horizontal lifeline system.
Free moving movement of D-ring after installation
Can be bolted or welded on


Materials: Zinc plated steel D-ring, forged steel eye
Weight: 1.2 lbs. (.5 kg)
Overall Length: 8.5"
Minimum Breaking Strength: 5,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.1, A10.32
OSHA Standards: 1926.502
