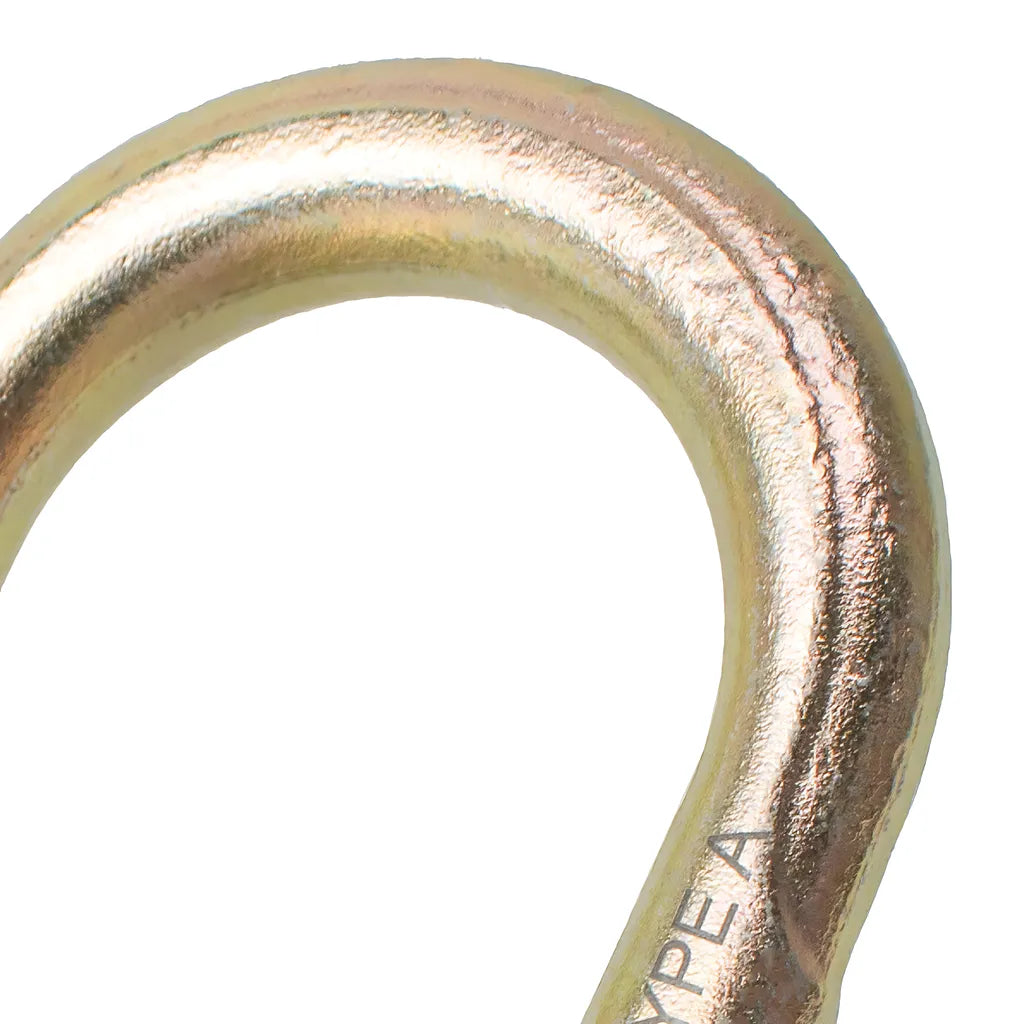

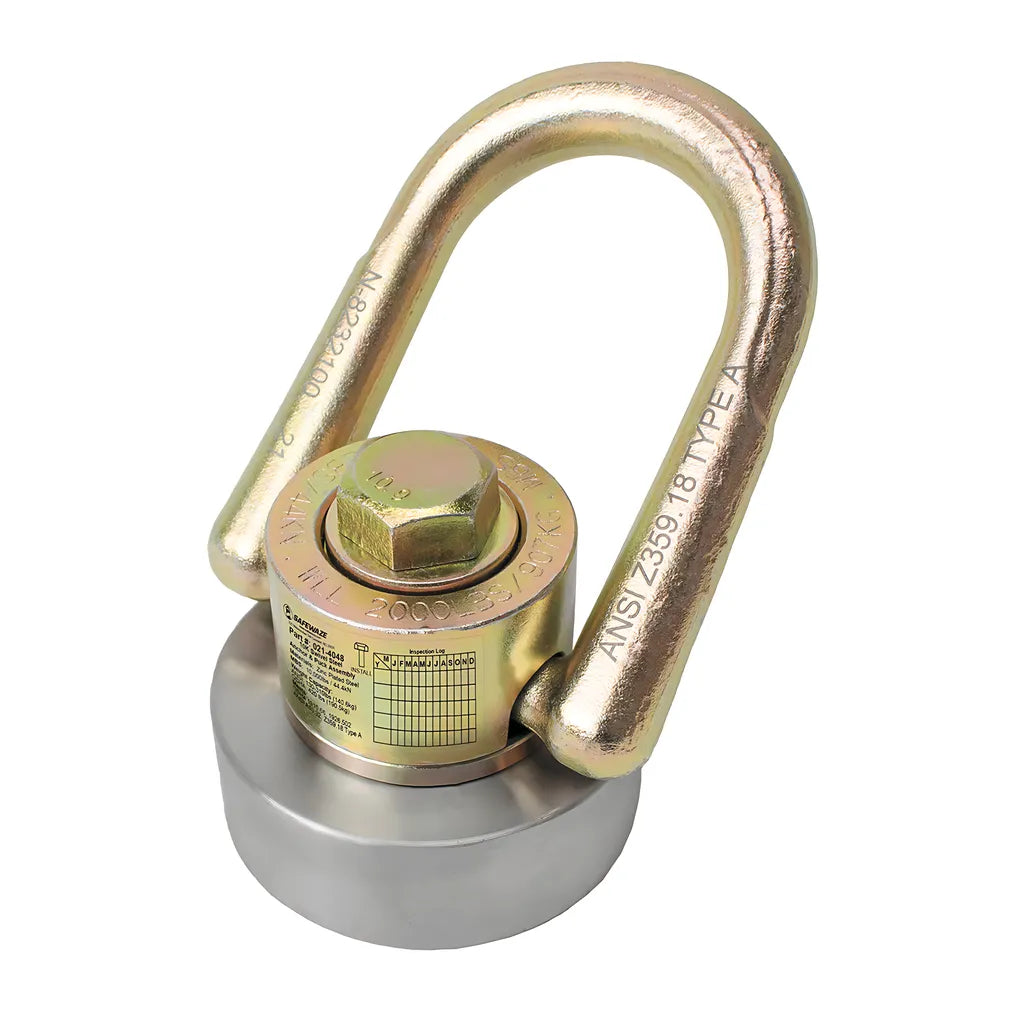

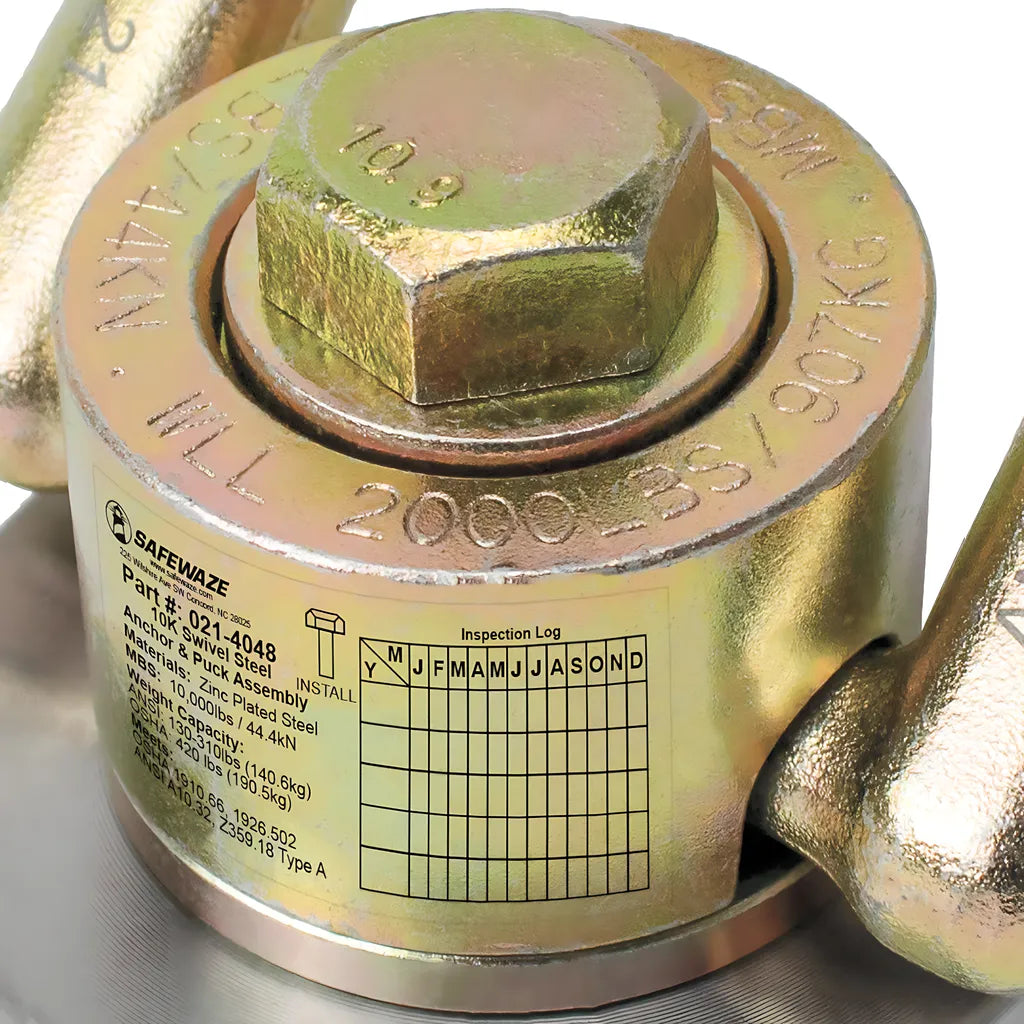

The 10K Swivel Anchor & Puck Assembly is a heavy duty steel-only anchor solution, used in temporary or permanent installations. Built with corrosion resistant steel and equipped with a non-plated weld on puck plus 5/8" fastener.
180° / 360° rotating connection point for increased mobility
Built with heavy duty forged steel
Easy welding installation
Temporary or permanent
Materials: Zinc-plated steel anchor, steel puck
Weight: 4.1 lbs. (1.9 kg)
Dimensions: 4.5" x 3.5"
Diameter: 0.6" (15.2 mm)
Minimum Breaking Strength: 10,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.18 Type A, A10.32
OSHA Standards: 1926.502, 1910.66
