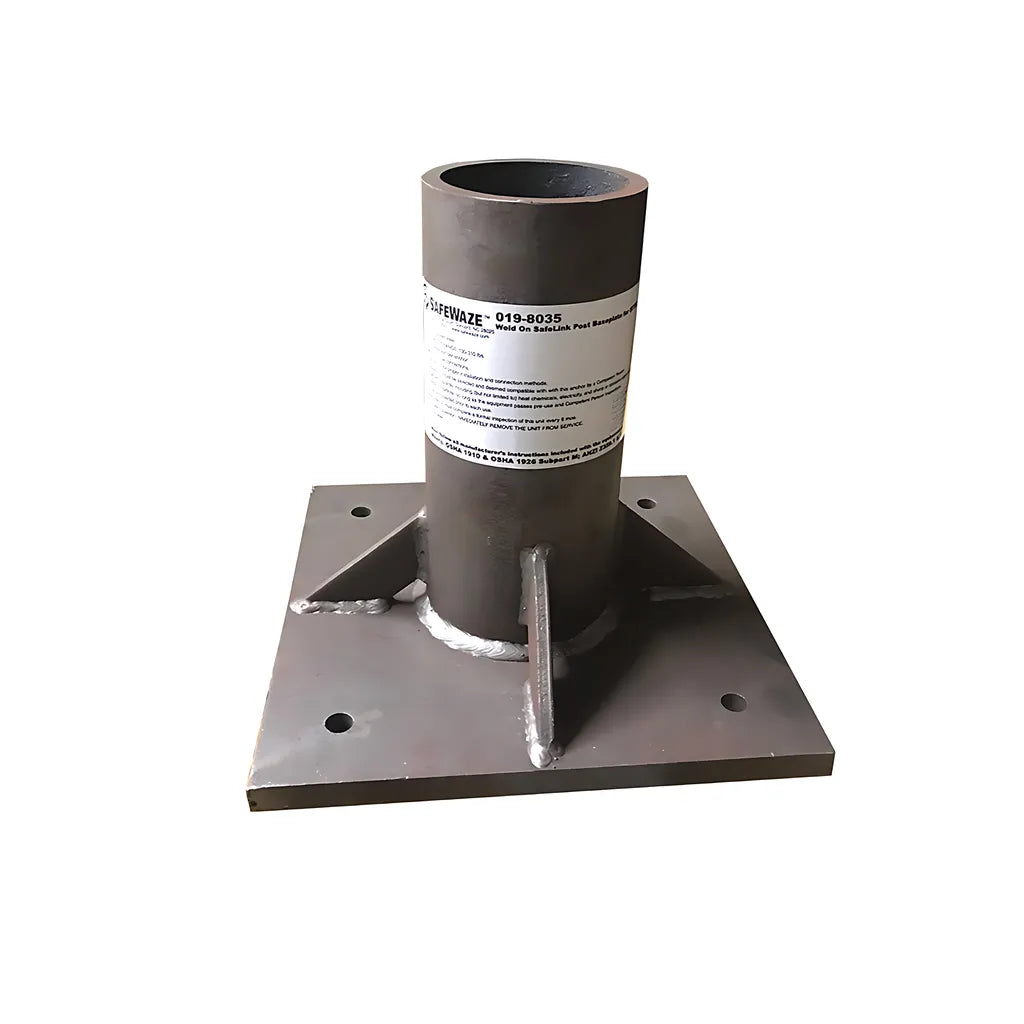

The Weld-on SafeLink Post Baseplate is designed for use with the Safewaze SafeLink HLL System. Mounts securely to steel structures and is used with our 7.5' aluminum post.
Use with FS-EX5501-5 aluminum post
For steel bolt installation:
– (4) 1/2” grade 8 bolts with locking hardware
For steel weld installation, must be installed by an AWS certified welder
Materials: 3/4" (19.1 mm) Unplated steel
Weight: 53 lbs.
Height: 12.75"
Base Dimensions: 12" x 12"
ANSI Weight Capacity: 130-310 lbs. (59- 141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.1, A10.32
OSHA Standards: 1926.502
Mounting Surface: Steel
