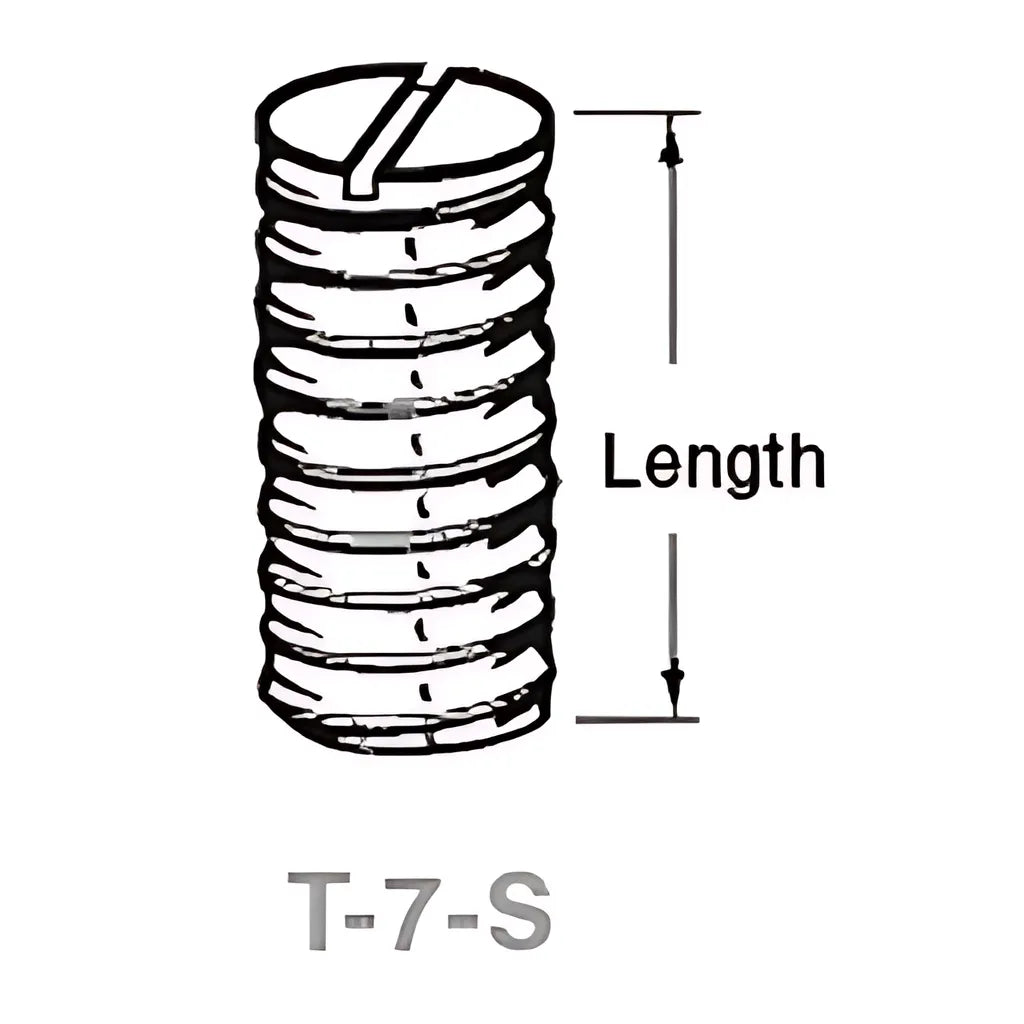

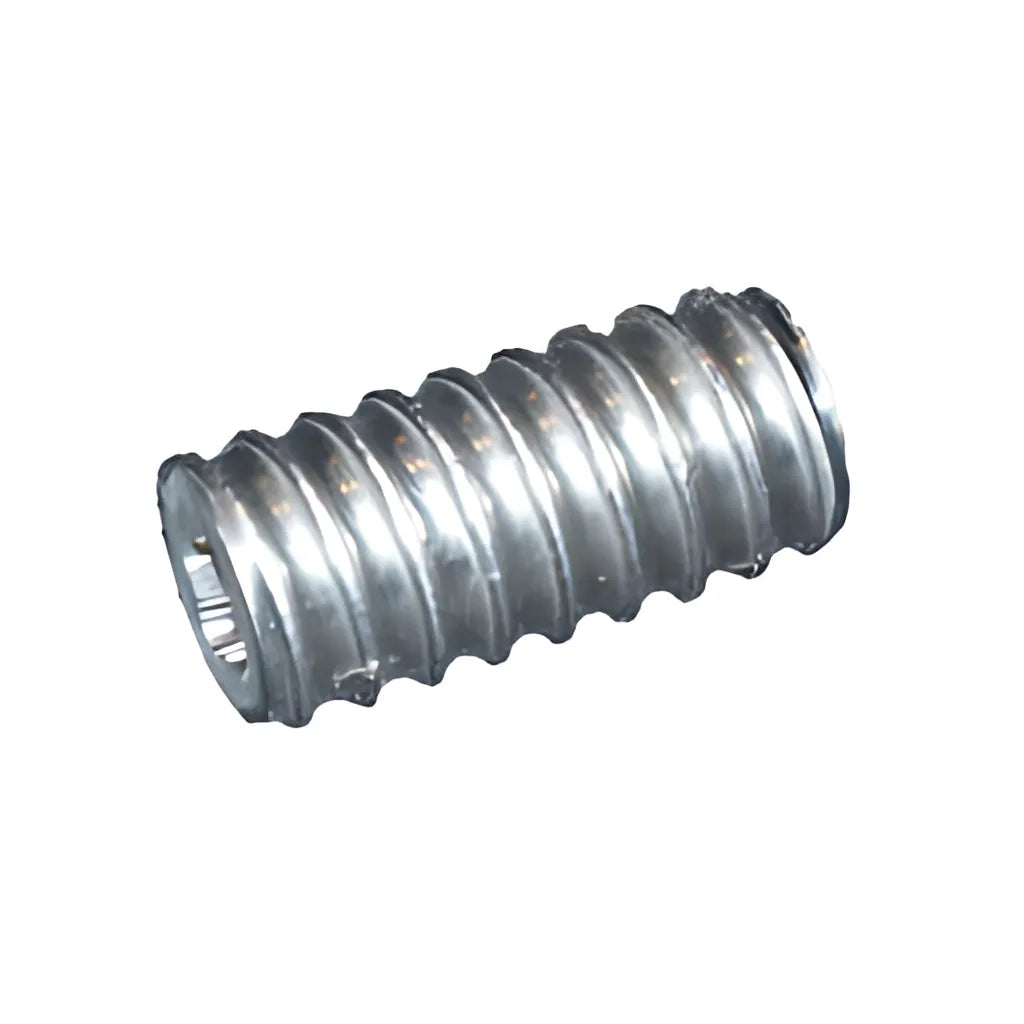

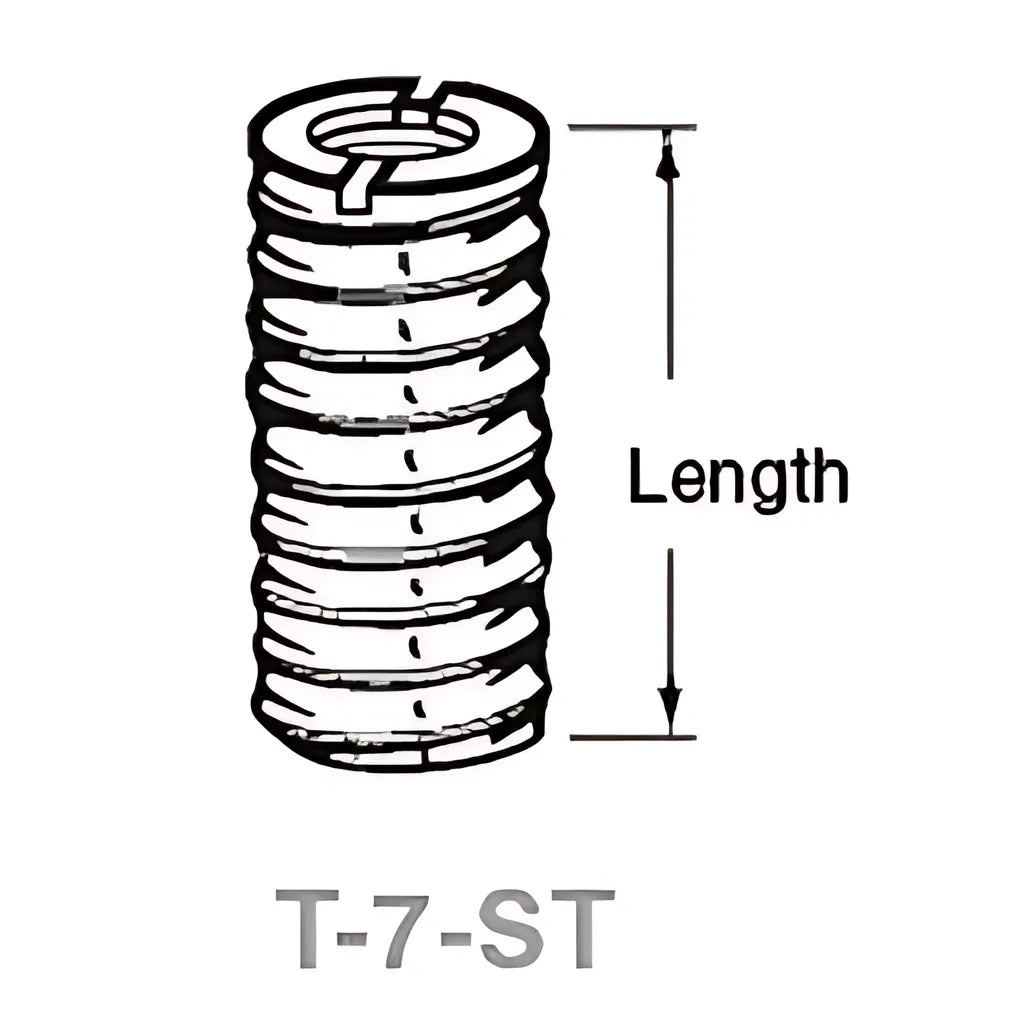

The Dayton Superior T7S Slotted Setting Stud has a slot to facilitate installation and removal. The T7ST stud has a slot and is drilled 1" deep and tapped with 1/4"-20 threads to allow the stud to be used as an insert setting plug.
• Used with standard coil-threaded inserts to provide void for B14 Coil Bolts.
• Made from continuous threaded steel rod.
• Top is cut off square so screed can pass over.
• Threads and slot should be coated with non-staining lubricant to prevent bonding.
• Loosen studs within 2 to 12 hours after concrete placement to ease removal when ready to lift.
• Standard steel sizes are 1/2", 3/4", 1", 1-1/4" and 1-1/2" diameter x 4" long. Other lengths available on request.

The T7S and T7ST Slotted Setting Studs are made to order products only. Please call for lead timing, pricing, and availability.
