LIFT BRACKET
Unique design straddles the tie boxes or crossmembers. The 2,000 pound capacity means that two brackets will typically lift a 400 square foot gang.

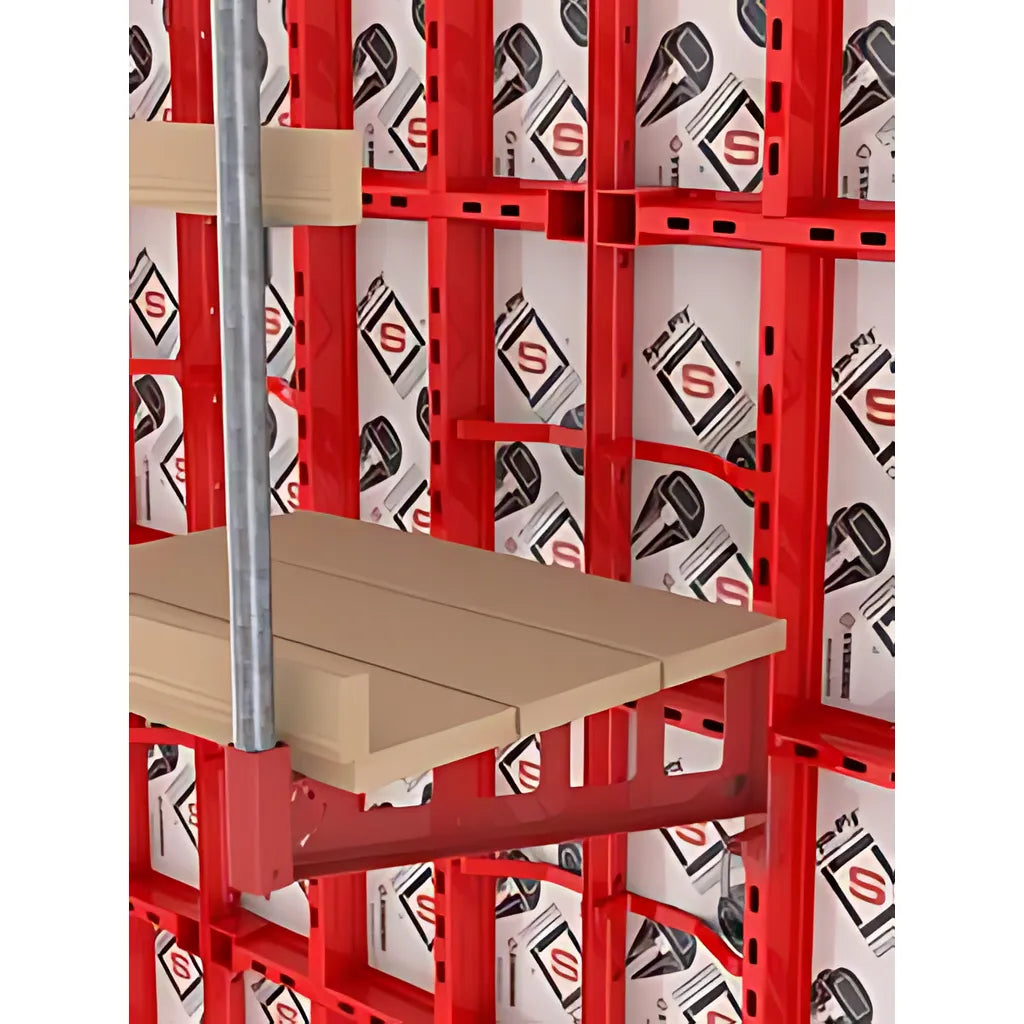

WALKWAY BRACKET AND GUARDRAIL POST
The Walkway Bracket accommodates three 2" x 10" lumber planks. It has a capacity of 500 lbs at a 4:1 safety factor, and can be spaced up to 8' on center. The connecting hardware is fully integrated so there is no loose hardware. Strong steel pipe slides into the end pocket of the Walkway Bracket to create a guardrail post that facilitates guardrail lumber attachment.

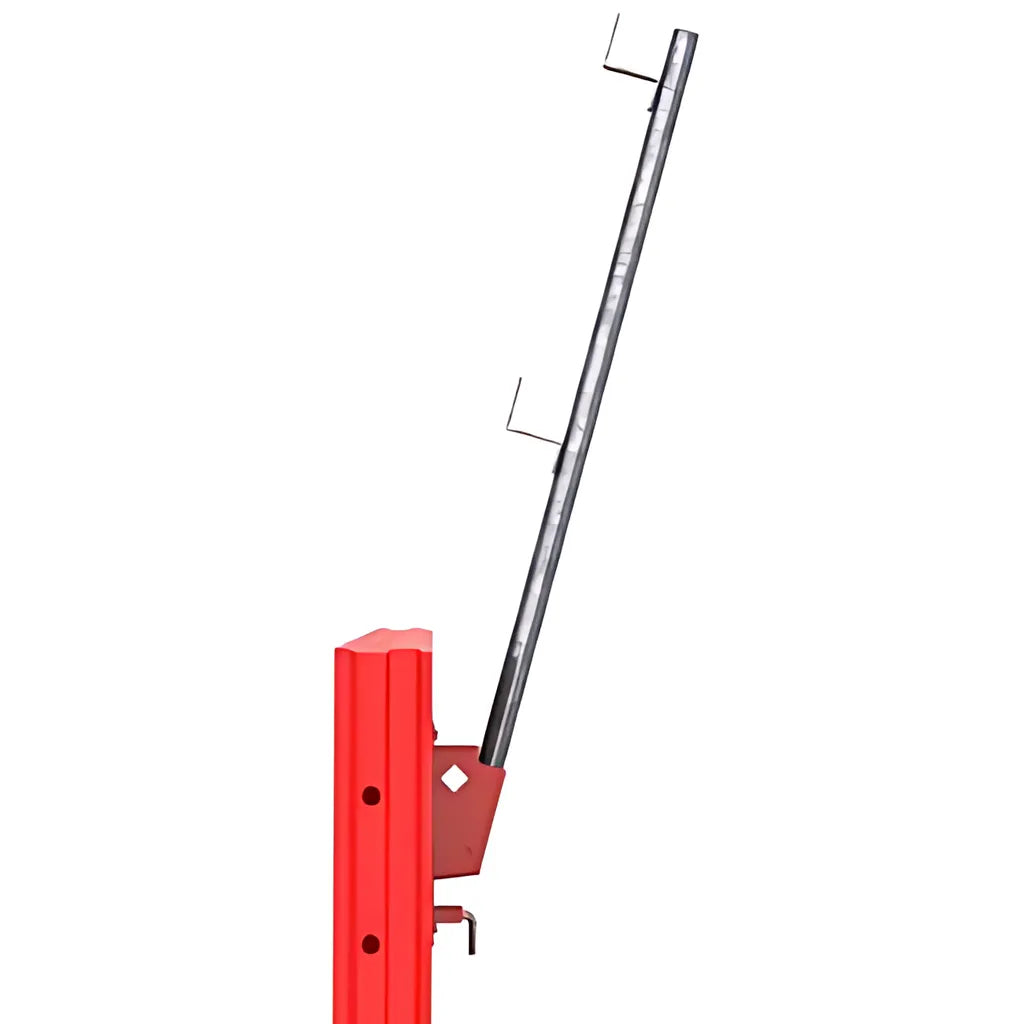

FALL FORWARD BRACKET
The Fall Forward Bracket is designed to provide guardrail protection on the side of the wall opposite from the walkways. It can be used when the Walkway Brackets are located less than 42" from the top of the form. It features the same integrated hardware as the Walkway Bracket. The guardrail post pocket is angled at 15' to avoid interference when placing concrete by bucket.

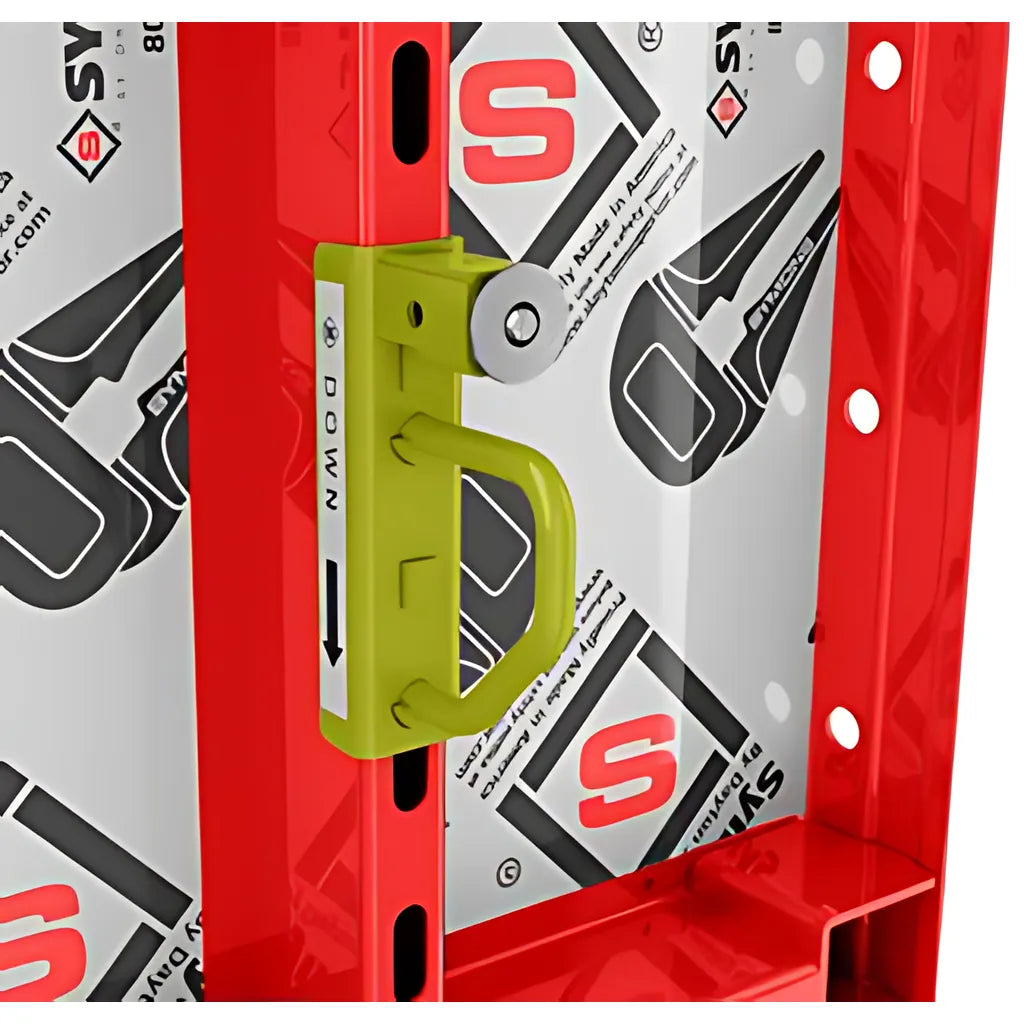

SYM-PLY TIE-OFF BRACKET
The Sym-Ply Tie-Off Bracket meets OSHA requirements for fall protection. The connecting hardware is fully integrated so there is no loose hardware. The bracket can be placed during gang assembly and the spring loaded connection allows it to be moved quickly and easily if required.

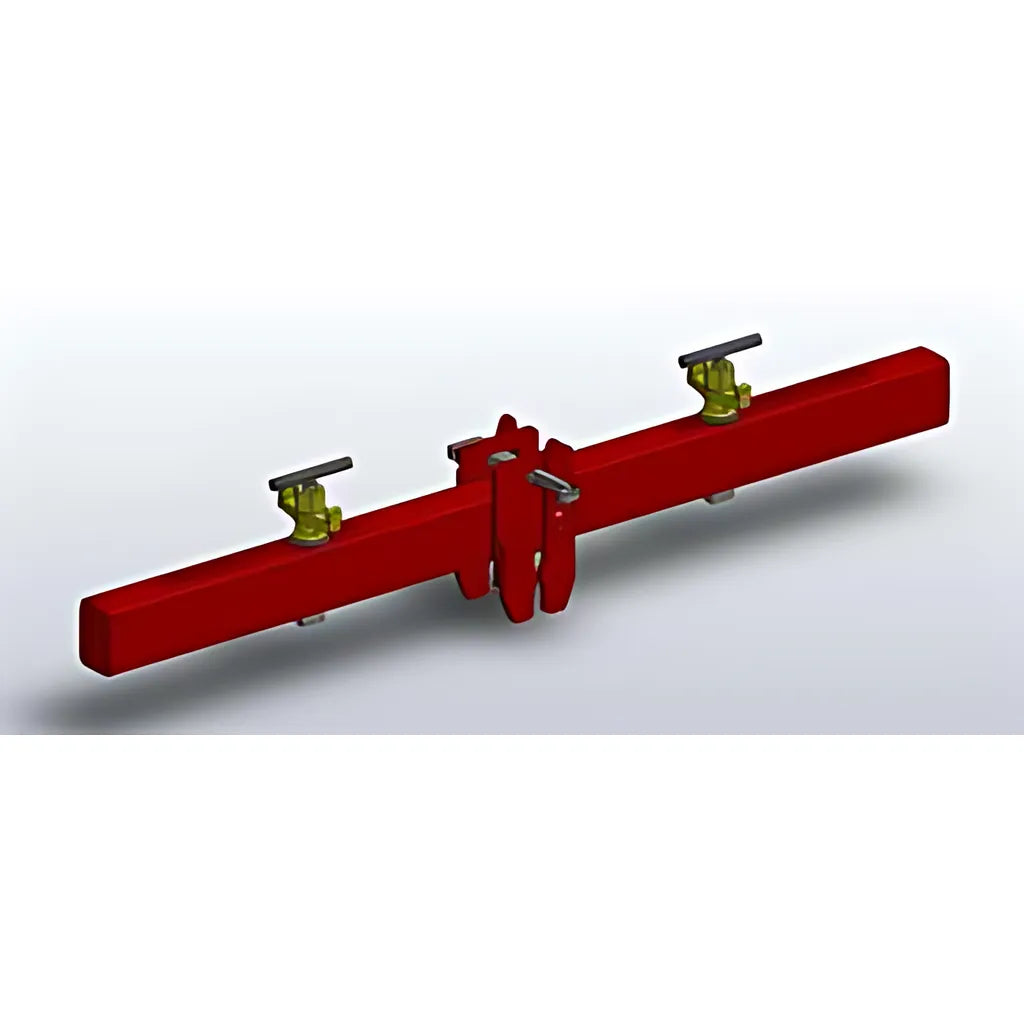

SYM-PLY STACKING CLAMP
The Stacking Clamp provides stiffness and alignment for Sym-Ply gangs in a single, stream-lined assembly. Both connecting T-Bolts have over 9” of adjustment and are part of the full assembly, and there are no loose parts. The center Clamp fits over end rails, cross-members, and tie-boxes for maximum versatility and strength. The clamp can also take the place of a standard Sym-Clamp.
