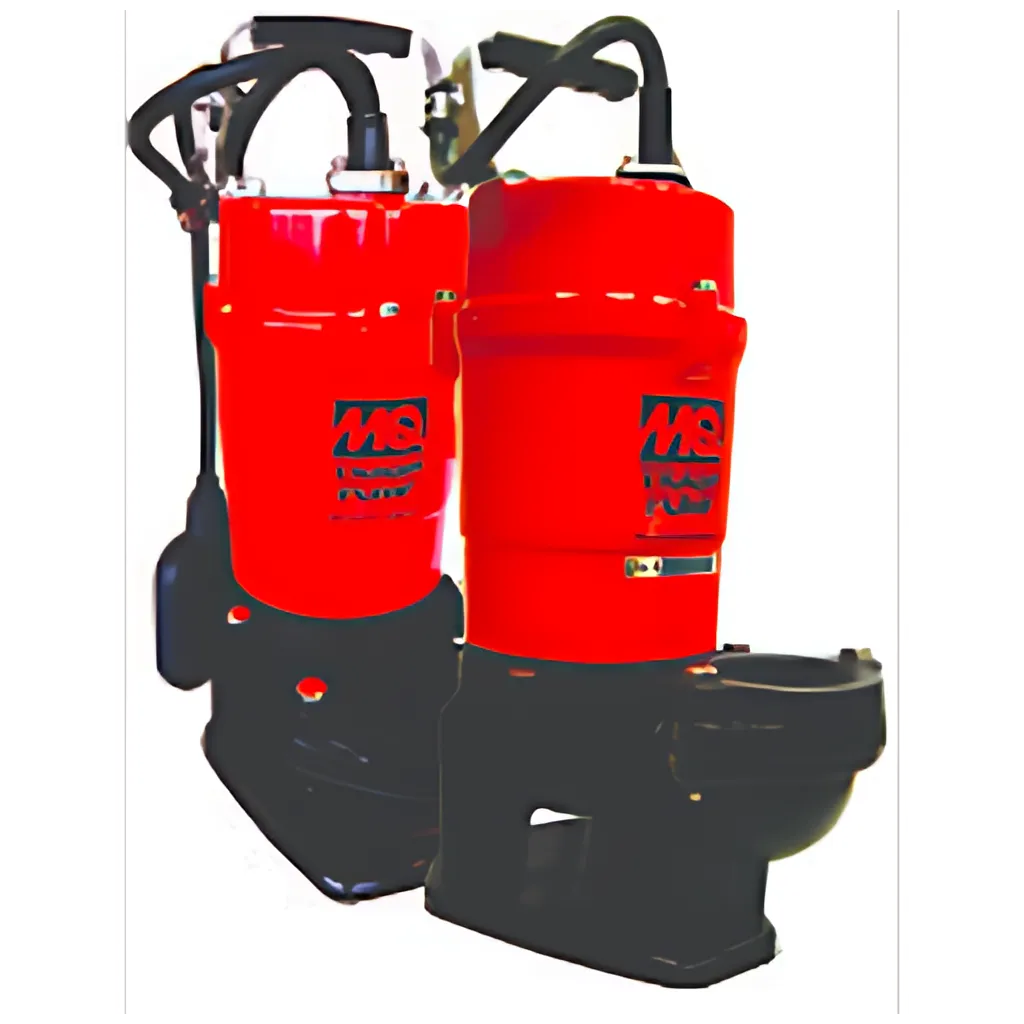

MULTIQUIP COMPACT SUBMERSIBLE TRASH PUMP

-1.0HP, 115V/6.5A, 1Ø, UL & CUL Listed Electric Motor.
-Built-in Overload Protection.
-2” (NPT) Female Discharge.
-Total Head: 40 ft.
-MAX Capacity: 79 gpm.
-Pumps Liquid Up To 120° F.
-Heavy-duty Cast Iron Housing construction.
-Dewaters Flat Surfaces Up To 2” Levels.

UNIT SPECIFICATIONS
Impeller Type: Neoprene Rubber over, Cast-Iron
Impeller Disc Size: 2 in 51 mm
Total Head: 40 ft 12.2 m
Water Capacity: 79 gpm 299 lpm
Max. Solid Intake: 1 in 25.4 mm

ELECTRICAL SPECIFICATIONS
Power: 1 HP 0.75 kW
Phase: Single
Voltage: 115 V
Starting Amperage: 34 A
Running Amperage: 6.8 A
Cable Length: 25 ft 7.6 m

DIMENSIONS & WEIGHTS
Pump Diameter: 10.3 in 26.7 mm
Overall Height: 16.8 in 427 mm
Operating Weight: 34 lb 15.4 kg
