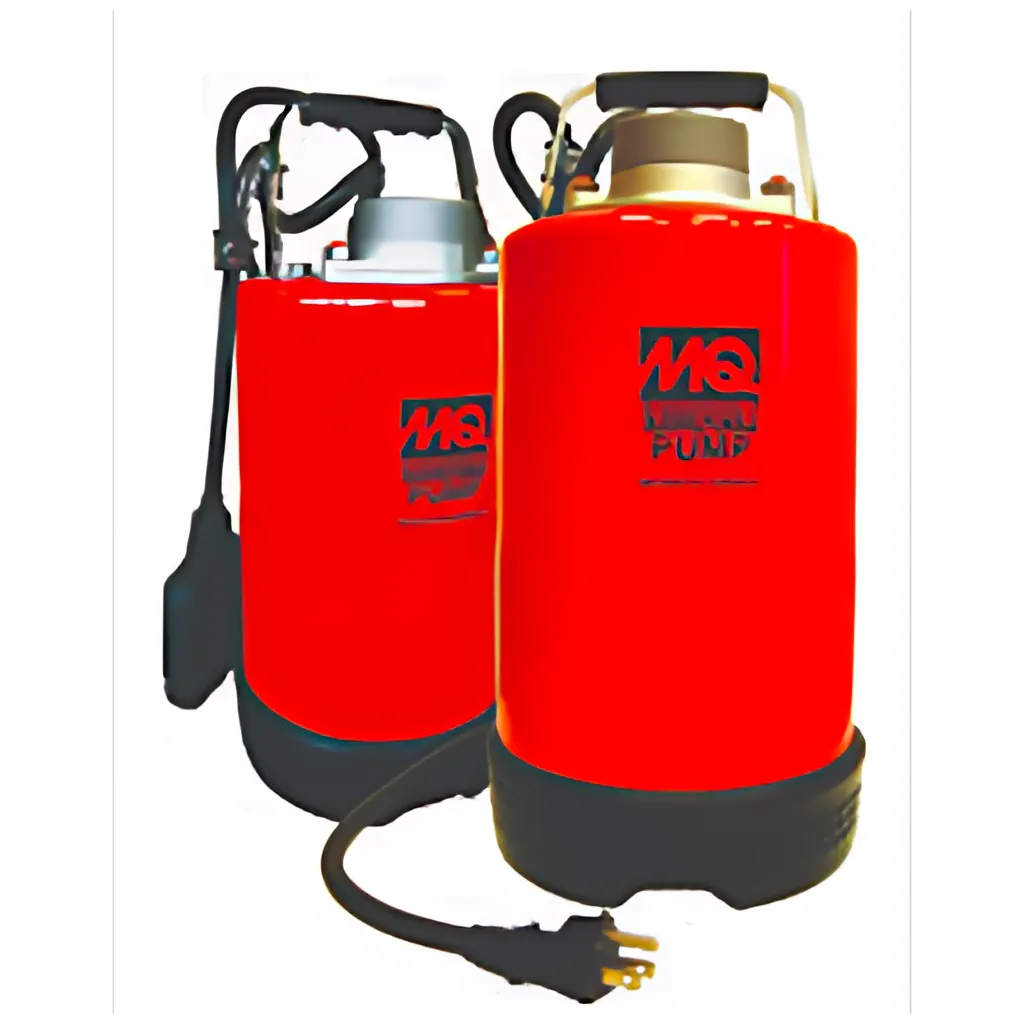

ST2037 2 INCH DISCHARGE, 115V 1Ø, 1.0 HP, 73 GPM, 37' TOTAL HEAD
ST2037 2 INCH DISCHARGE, 115V 1Ø, 1.0 HP, 73 GPM, 37' TOTAL HEAD
ST2037 2 INCH DISCHARGE, 115V 1Ø, 1.0 HP, 73 GPM, 37' TOTAL HEAD
--
-1.0HP, 115V/9.8A, 1Ø, UL & CUL Listed Electric Motor.
-Built-in Overload Protection.
-2” (NPT) Female Discharge Port.
-Reliable double mechanical oil-filled seals.
-Cast iron/steel motor casing serves as heat conductor.
-Pumps Liquid Up To 120° F.
-25’ of molded power cord w/strain relief
-Dewaters Flat Surfaces Up To 1/2” Levels.
UNIT SPECIFICATIONS:
Impeller Type: Neoprene Rubber over, Cast-Iron
Impeller Disc Size: 2 in 50 mm
Total Head: 37 ft 11.3 m
Water Capacity: 73 gpm 276 lpm
Max. Solid Intake: 0 in 0 mm
ELECTRICAL SPECIFICATIONS:
Power: 1 HP 0.75 kW
Phase: Single
Voltage: 115 V
Starting Amperage: 34.5 A
Running Amperage: 6.9 A
Cable Length: 25 ft 7.5 m
DIMENSIONS & WEIGHTS:
Pump Diameter: 7.4 in 188 mm
Overall Height: 15.4 in 391 mm
Operating Weight: 31 lb 14 kg
