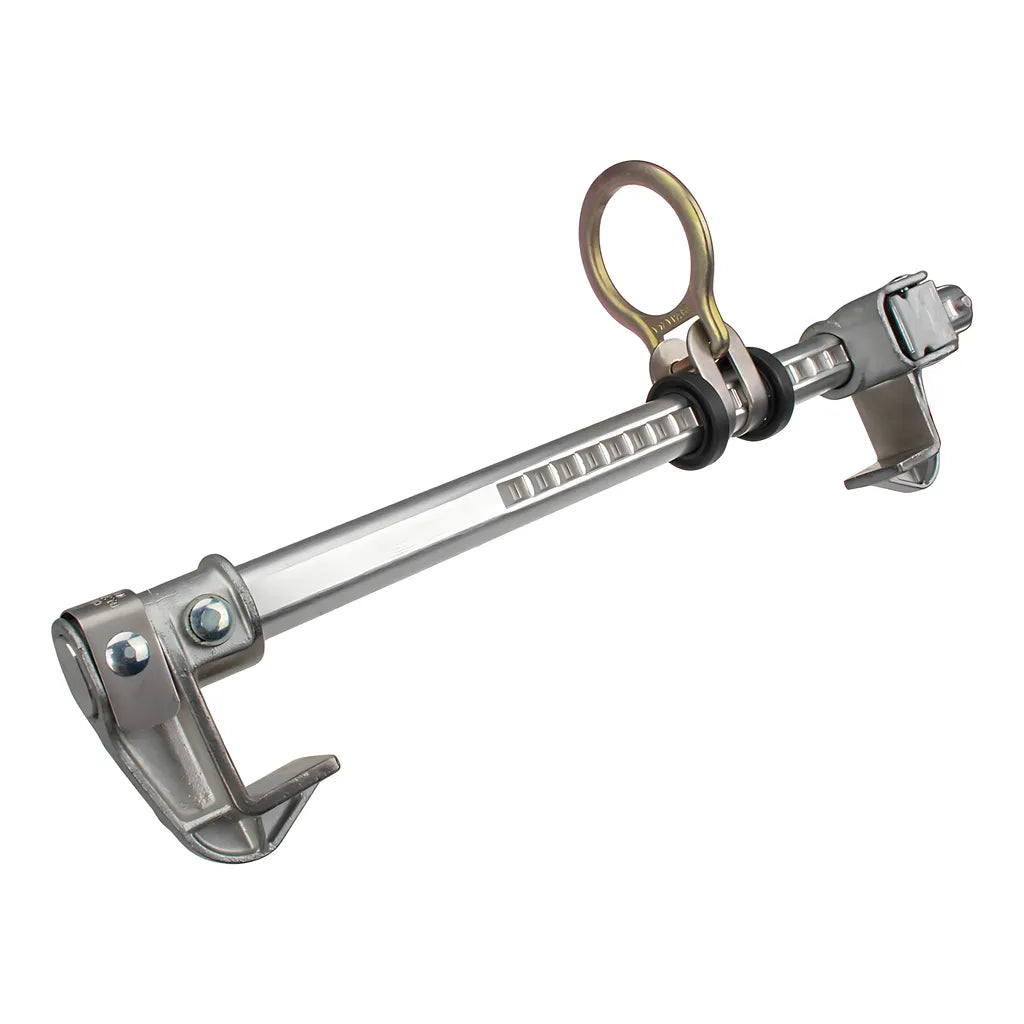

The Sliding Beam Anchor is a versatile trailing anchor solution, for use in horizontal applications. Built to last with rugged, corrosion resistant materials.

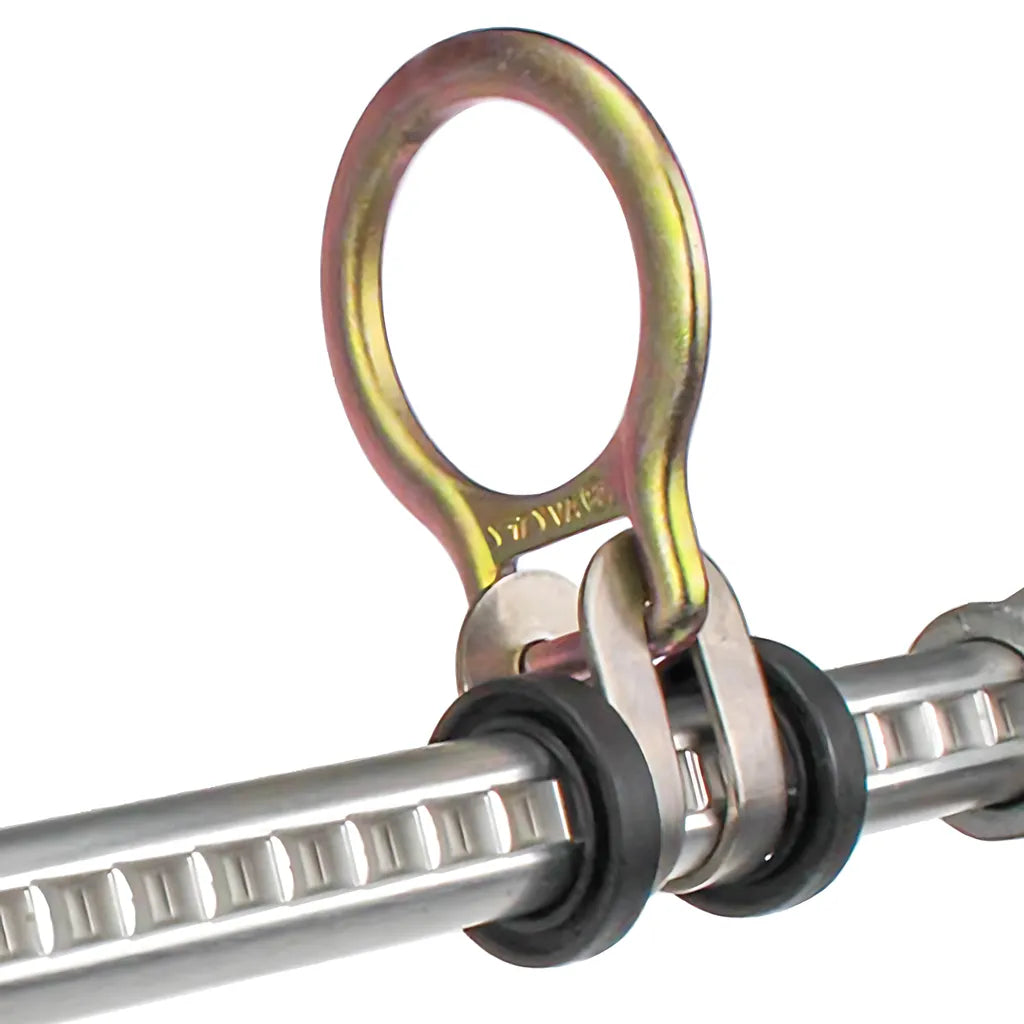

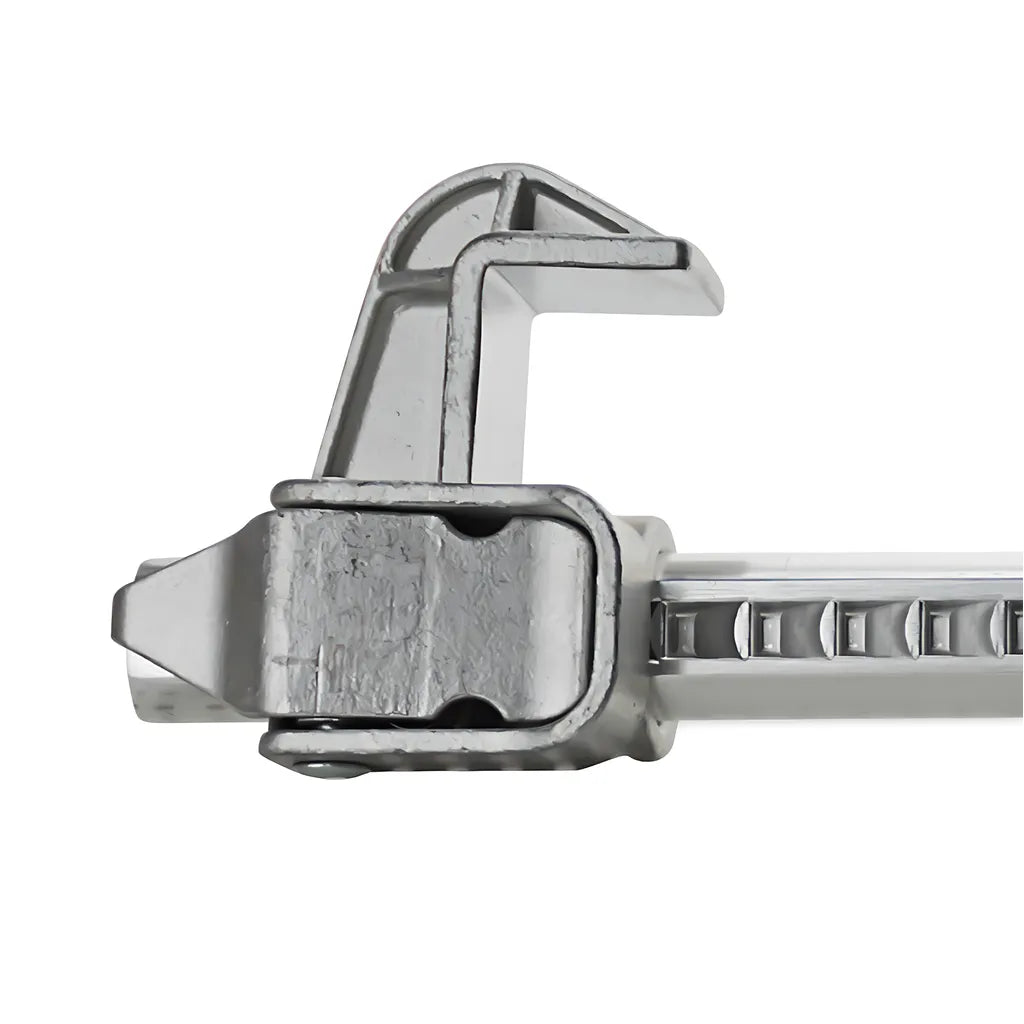

Center positioning retainer prevents jambing on beam
Lightweight durable construction
Materials: Forged anodized aluminum cross bar, stainless steel clamps, latches and springs, carbon steel D-ring
Weight: 3.8 lbs. (1.7 kg)
Overall Length: 19"
Beam Flange Width Range: 3.5"-14"
Breaking Strength: 5,000 lbs. minimum
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.1, A10.32
OSHA Standards: 1926.502
