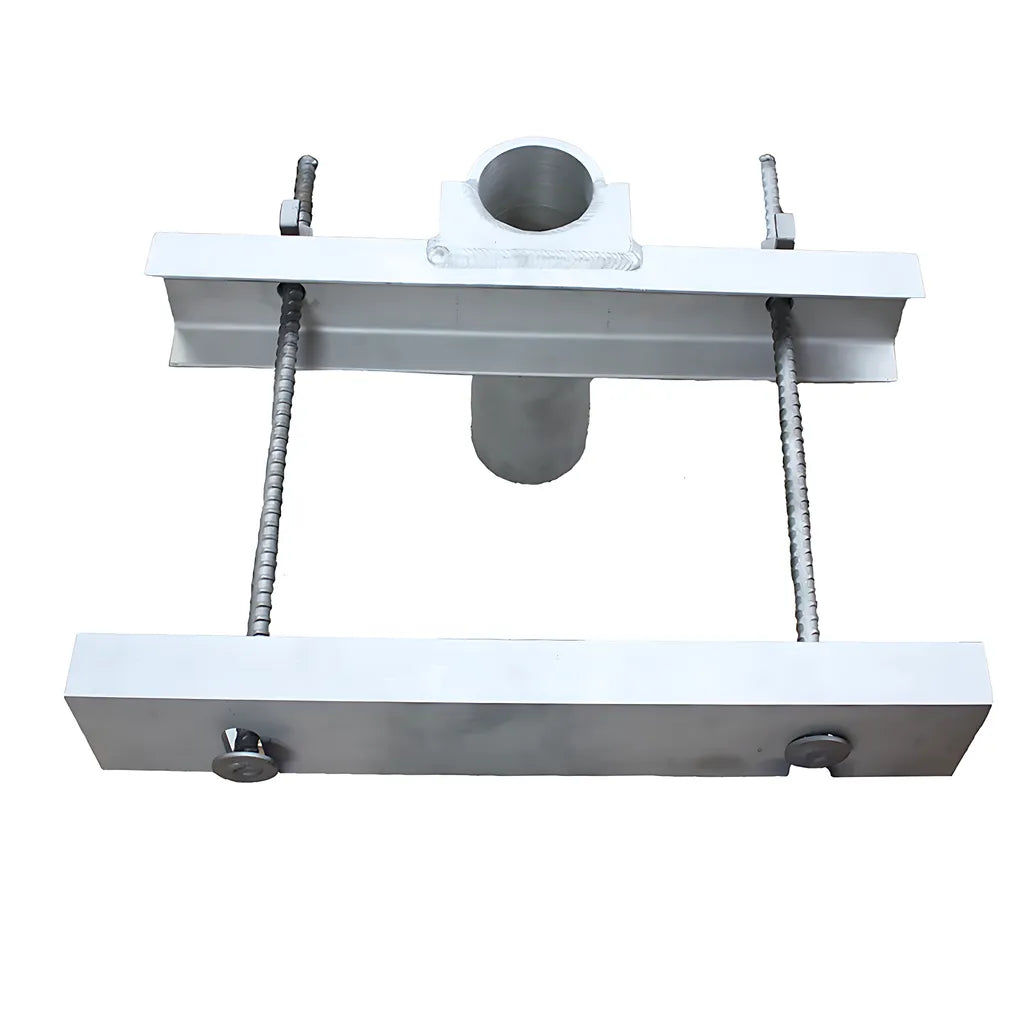

The SafeLink Form Link Anchor is a base designed for use with the the Safewaze SafeLink HLL System. Easily installed on various structures and used with our 7.5' aluminum post.
Includes 2-piece aluminum bracket kit, 2 steel threaded rods and 2 wing nut brackets
Versatile mounting:
- (6) #9 rebar or larger
- Finished wall (min. 8? thick)
- Clamped around a finished column
Use with FS-EX5501-5 aluminum posts
Materials: 6061-T6511 aluminum
Weight: 26 lbs. (11.8 kg)
Length: 28" (711.2 mm)
Weight Capacity: 130-310 lbs. (59-141 kg)
System Capacity: Up to 1240 lbs. (562 kg)
OSHA Standards: 1926.502
Mounting Surface: Rebar
