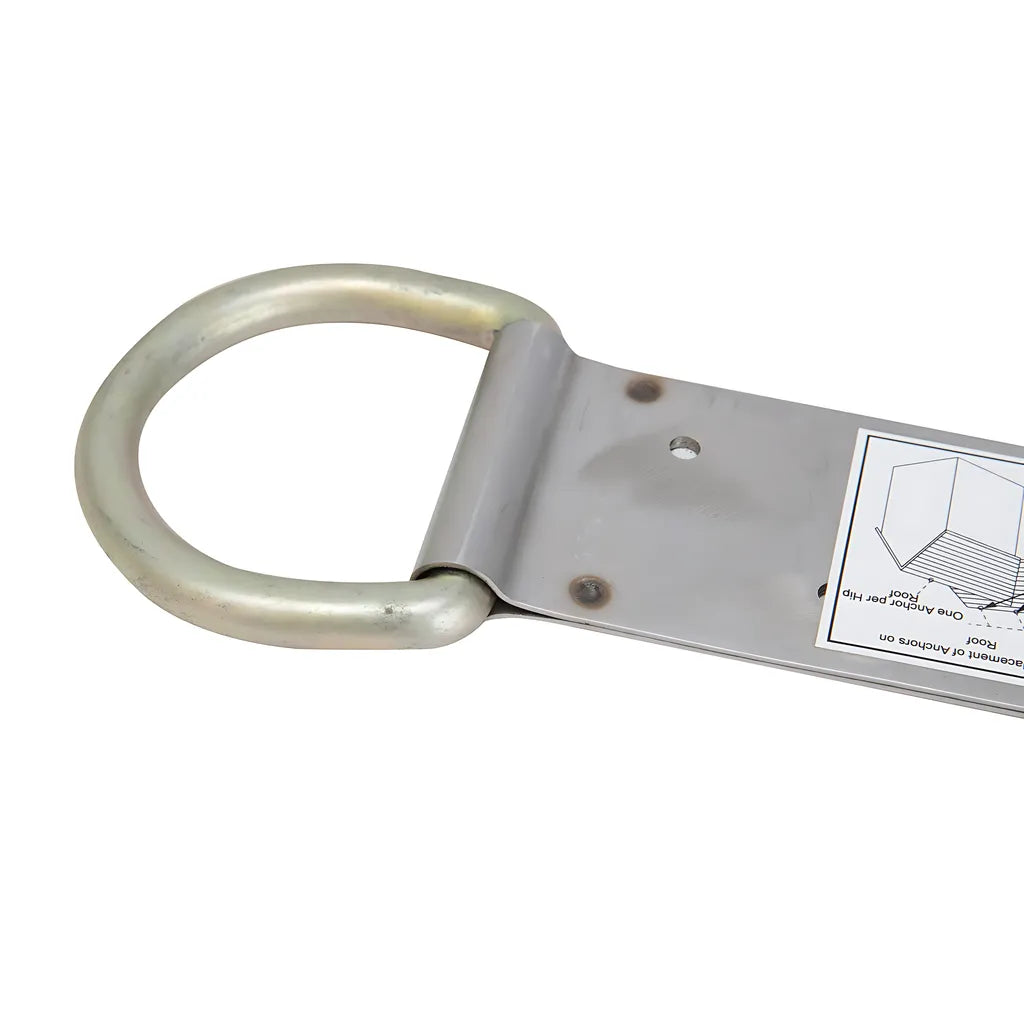

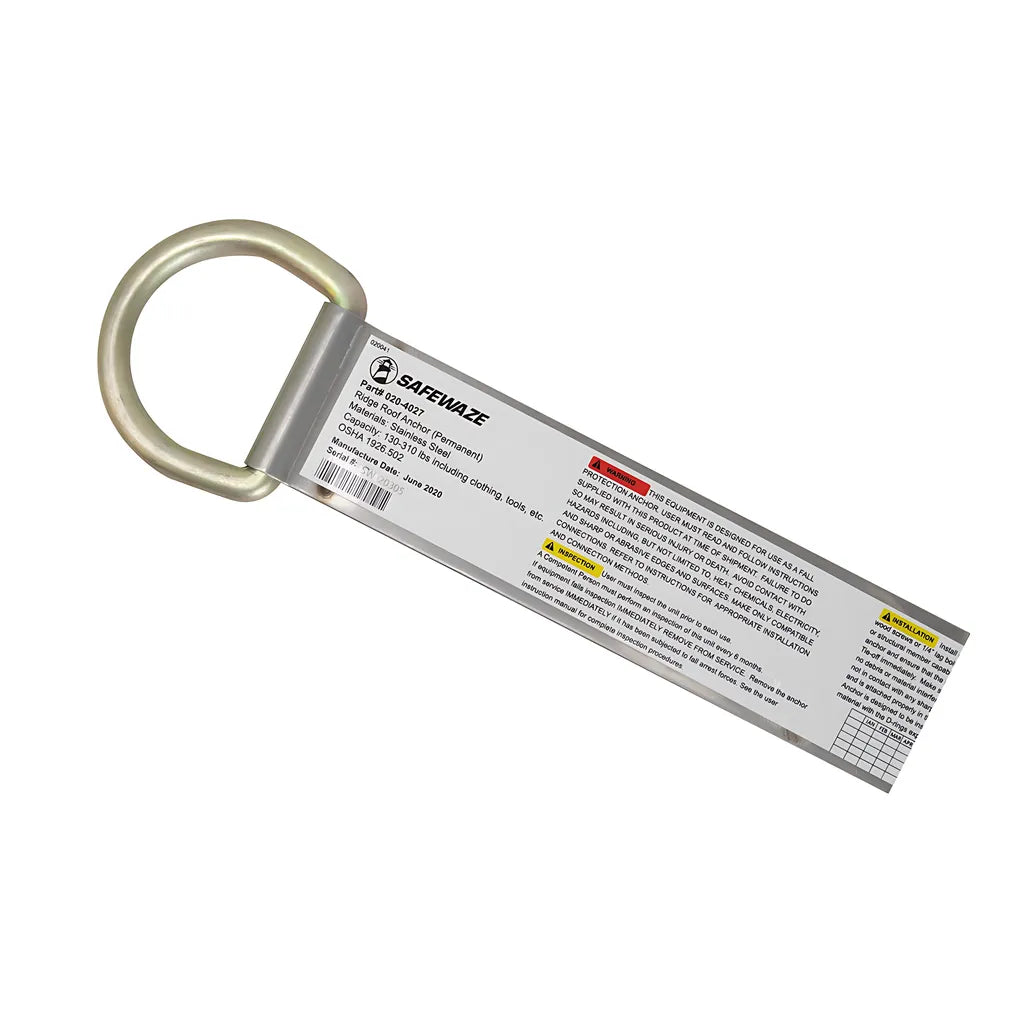

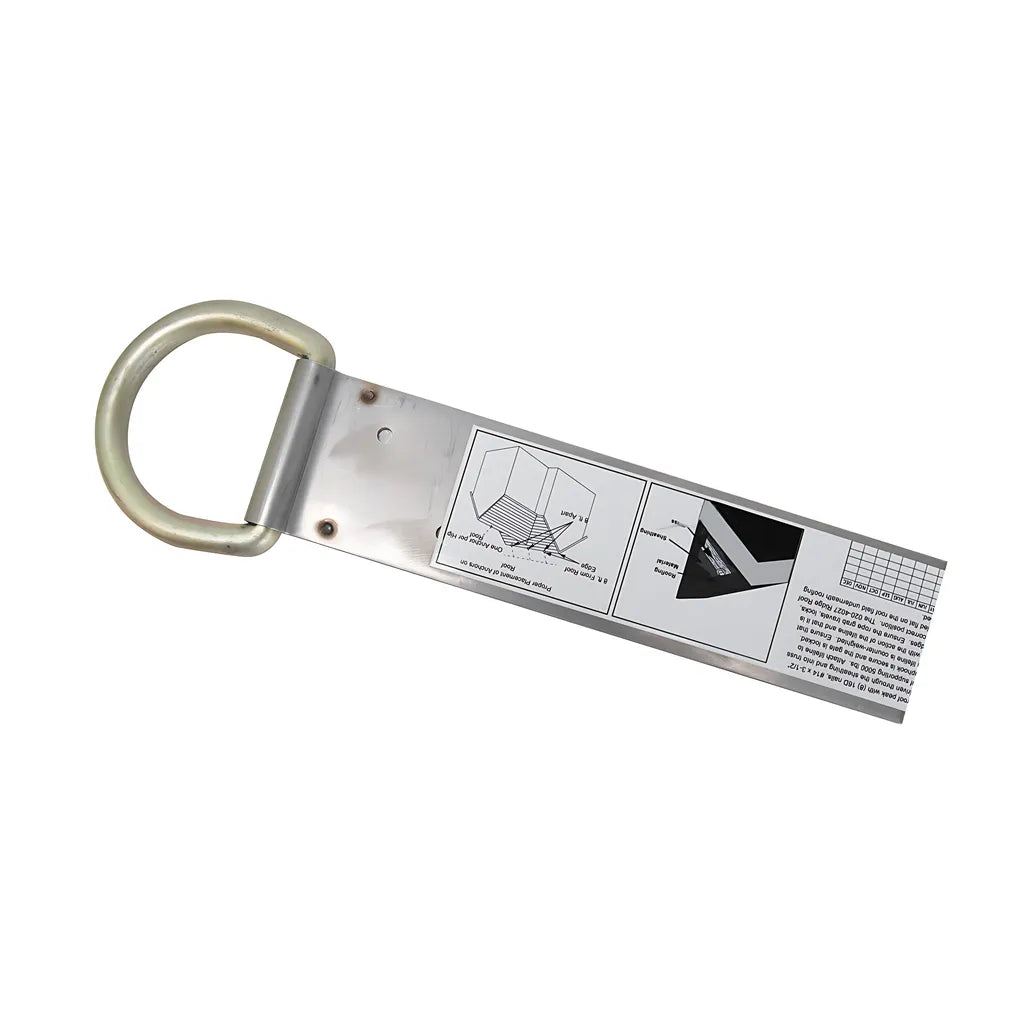

Ridge Roof Anchor
Ridge Roof Anchor
The Ridge Roof Anchor is designed for permanent use on residential wooden roof structures.
Installs easily between roof peak and eves
Low profile, minimalistic design
Constructed with durable stainless and zinc-plated steel
(8) 16D Roofing nails included
Materials: Yellow zinc-plated steel, stainless steel
Weight: 0.83 lbs. (0.4 kg)
Length: 7.5" (19.5 mm)
Material Thickness: 0.04" (1 mm)
Plate Width: 1.9" (48 mm)
Number of Holes: 8
Hole Diameter: 0.18 in (4.5 mm)
Minimum Breaking Strength: 5,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
OSHA Standards: 1926.502, 1910.66
