Plate 2000 Steel Concrete Bucket - 3/4 Cubic Yard

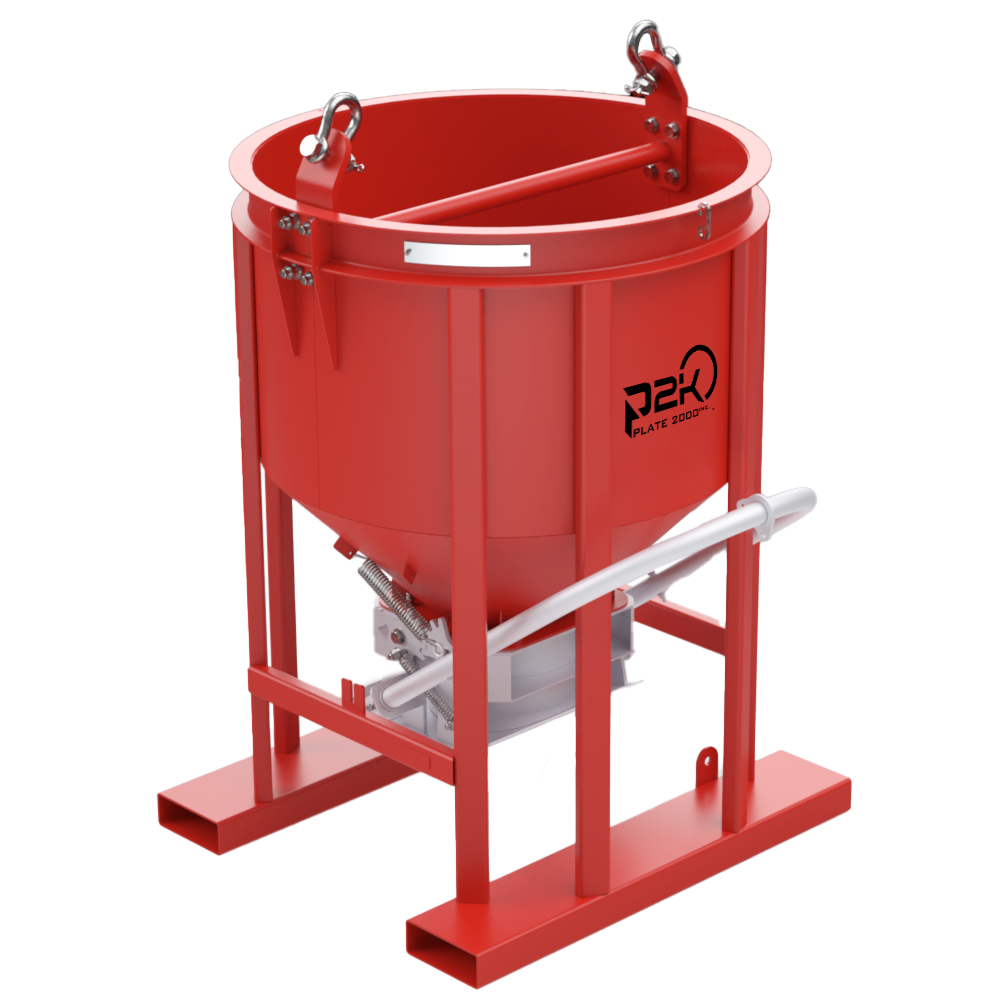

Plate 2000 Steel Concrete Bucket - 3/4 Cubic Yard
The Plate 2000 P2K-CBS-075 steel concrete bucket has a ¾-cubic-yard nominal capacity and is designed for controlled placement of concrete on the jobsite.
Key features
- High-quality steel construction.
- Trapdoor-style opening system designed for smooth concrete discharge.
- Opening mechanism, lifting bar, and related accessories can be replaced separately from the bucket frame.
- Optional aluminum or steel chute attachments are available separately.
Technical specifications
| Part number | P2K-CBS-075 |
|---|---|
| Nominal volume | 0.75 cu yd |
| Empty bucket weight | 600 lb |
| Manufacturer stated carrying capacity | 2,940 lb |
| Bucket diameter | 40.875 in |
| Bucket height | 55.8125 in |
