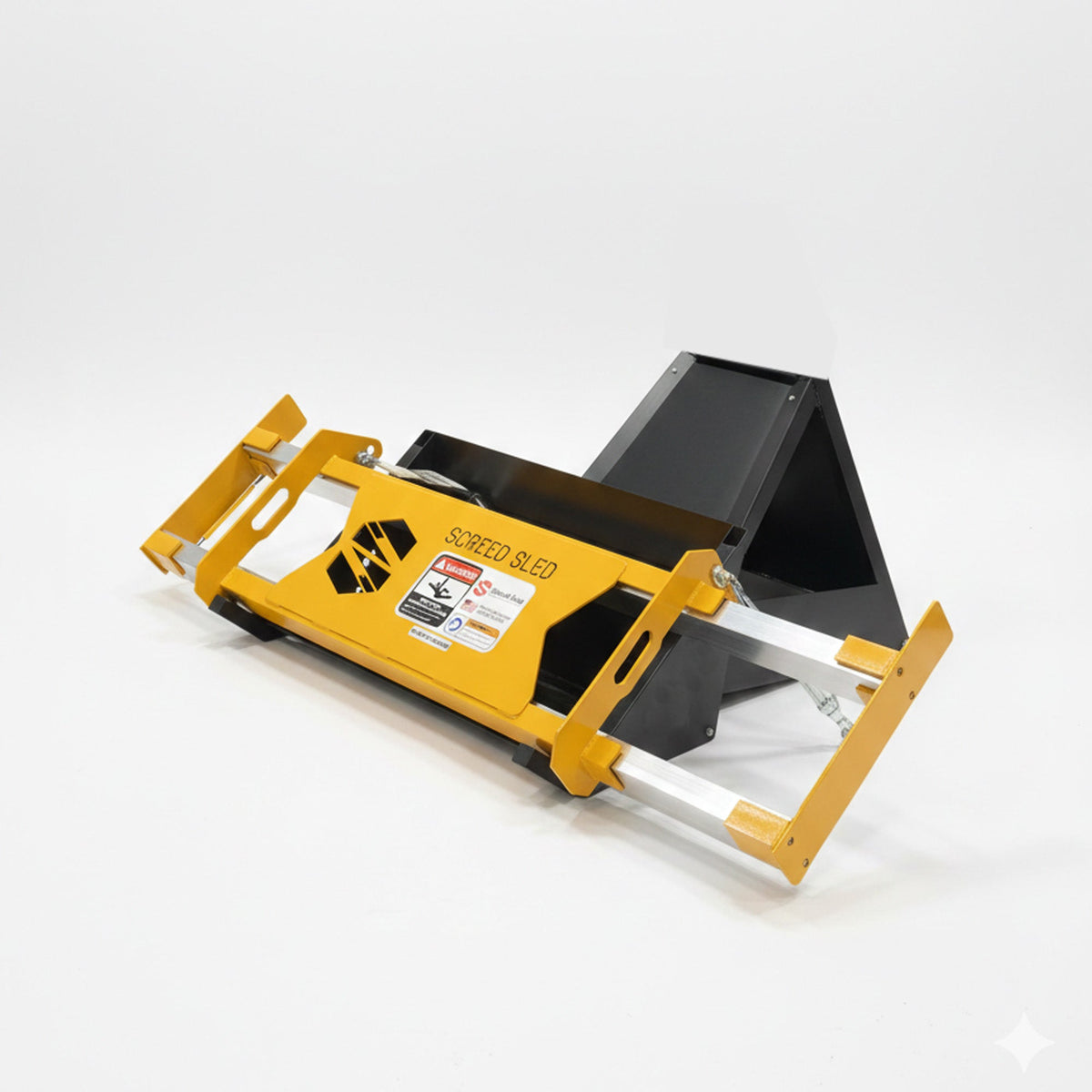

Plate 2000 Screed Sled System
Plate 2000 Screed Sled System
The Plate 2000 Screed Sled System is a concrete floor finishing attachment designed for bump cutting slabs with a ride-on power trowel. The system uses screed boards to help improve slab flatness over large placements.
Key features
- Designed for use behind a ride-on power trowel on large concrete placements.
- Accepts screed boards; boards are not included in the stated system weight.
- Can be used alongside Plate 2000 Big Foot finishing solutions.
- Manufacturer brochure and demonstration video available below.
Technical specifications
| Manufacturer part number | SCREED_SLED |
|---|---|
| System weight | 135 lb (excluding screed boards) |
| Overall width | 21 in |
| Minimum overall length | 96.5 in |
| Overall length | Screed board length + 0.5 in |
| Straightedge lengths | 8–12 ft |
| Recommended straightedge | 2 in × 4 in × 10 ft |
| Recommended power trowel | 8–10 ft hydraulic ride-on, pan-style |
Product resources
Super Flat Booster Pack brochure - Screed Sled and Big Foot System
Screed Sled in action
