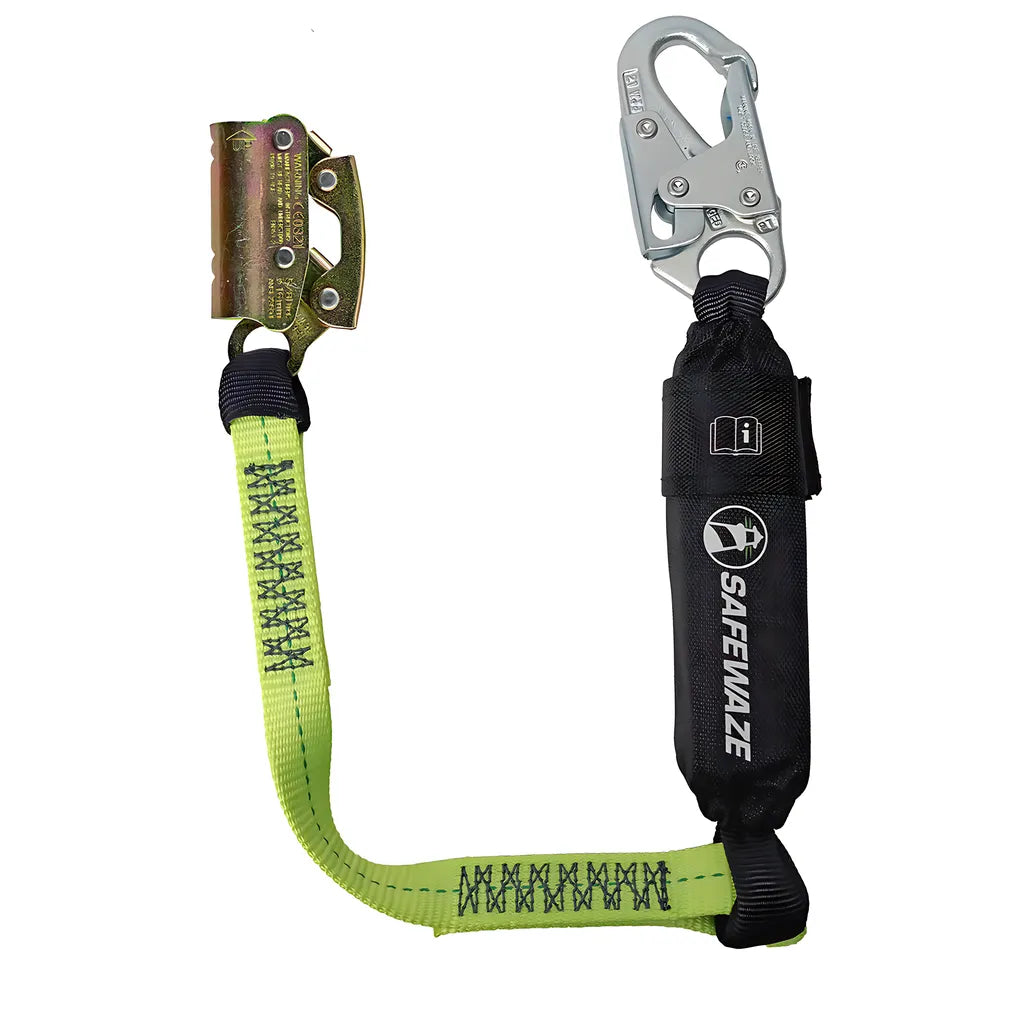

The Manual Rope Grab Assembly works on most VLLs with 3 strand twisted rope. Installs at the rope end and locks automatically to reduce shock during a fall. Built with a 3' polyester web energy absorbing lanyard, steel snap hook and manual rope grab.
Removable / trailing grab
Anti-panic feature
Fits 5/8 in (16 mm) rope
Web energy absorbing lanyard
Minimum breaking strength: 5,000 lbs.
To be a compliant ANSI Z359.15-2014 system, fall arrester must be used in conjunction with a compatible and approved vertical lifeline. See user manual for additional restrictions and specifications.
Materials: Polyester webbing; Zinc plated alloy steel hardware; Stainless steel hardware
Fall Arrest Point: 1 Snap hook
Weight: 2.8 lb. (1.3 kg)
ANSI Weight Capacity: 130-310 lbs. (59-140.6 kg)
OSHA Weight Capacity: up to 420 lbs. (190.5 kg)
ANSI Standards: Z359.13-2013, Z359.15-2014*
OSHA Standards: 1926.502, 1910.66, 1910.140
Energy Absorber: Yes
Trailing: No
Material: Steel
