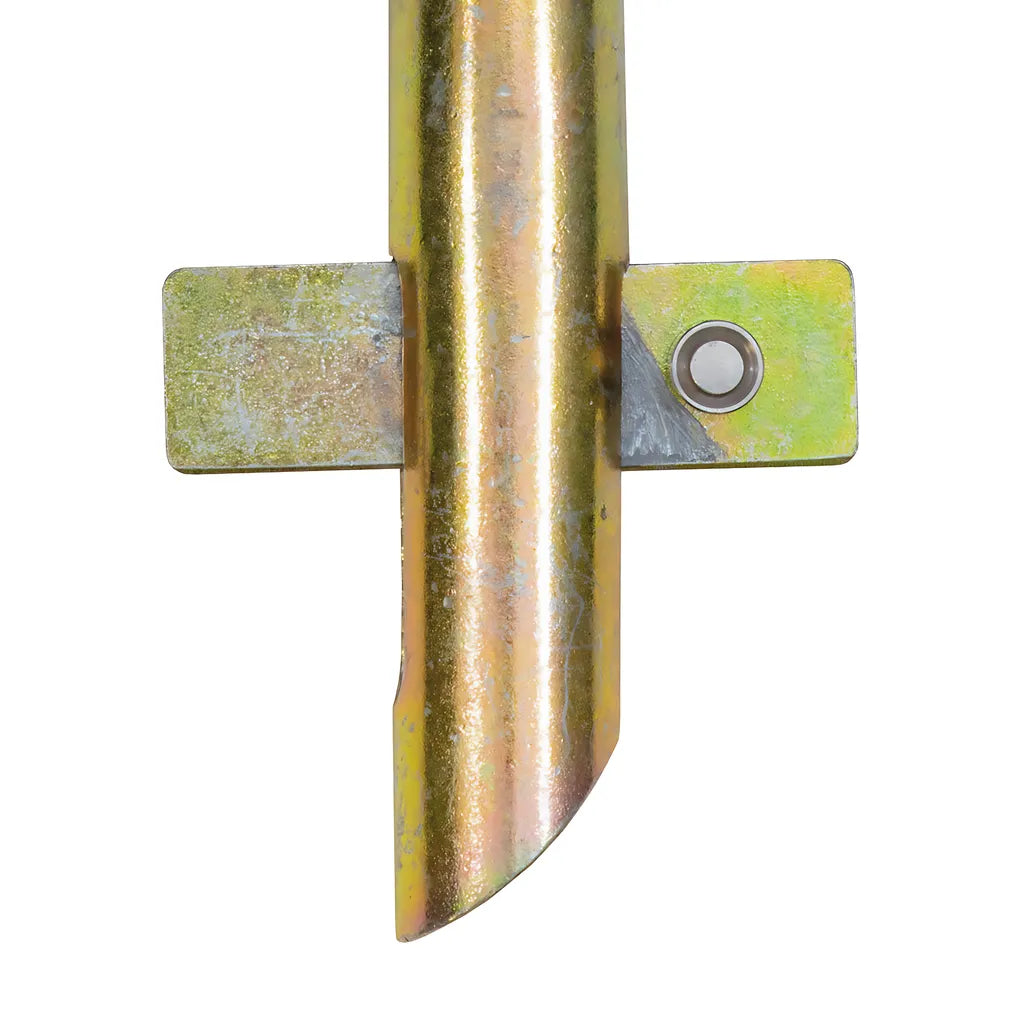

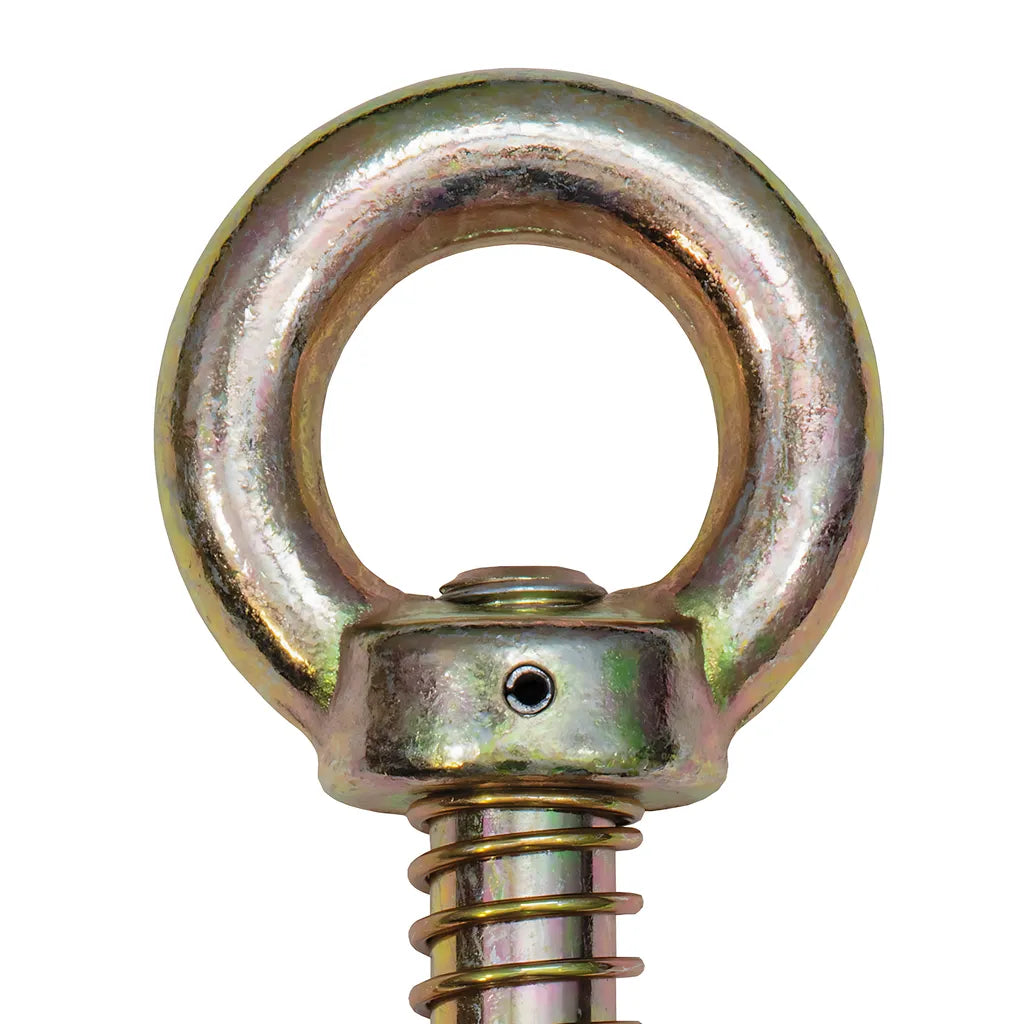

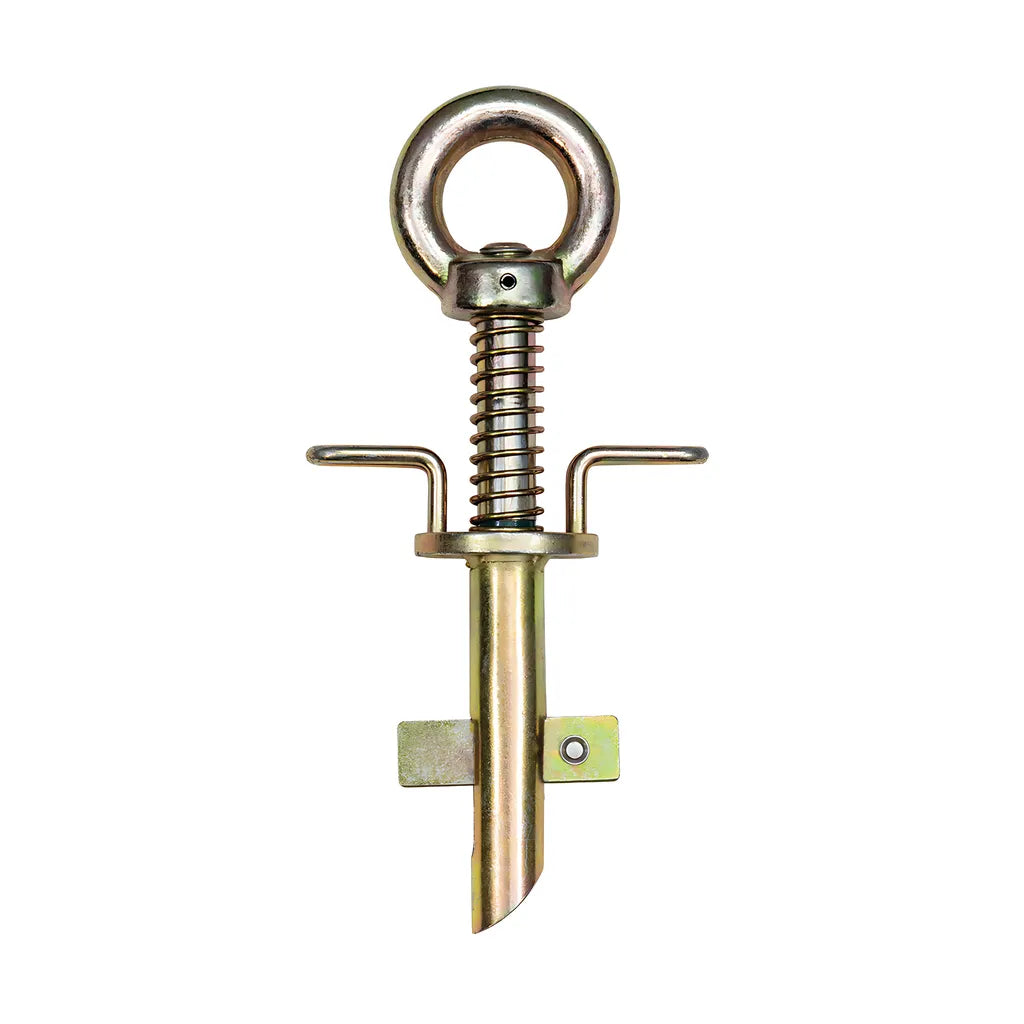

The Girder Grip Anchor is an economical anchorage solution, easy to install and transport. Built for quick installation and removal from rated metal or steel structures.
For metal and steel structures
Used horizontally or vertically
Fits hole diameter minimum 13/16" min. up to 1-1/4"
Installs into steel substrate with a maximum thickness of 1-1/4"
Materials: Zinc plated steel
Weight: 0.6 lbs. (0.3 kg)
Dimensions: 0.25" x 2" x 4.5"
Minimum Breaking Strength: 5,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.1, A10.32
OSHA Standards: 1926.502
