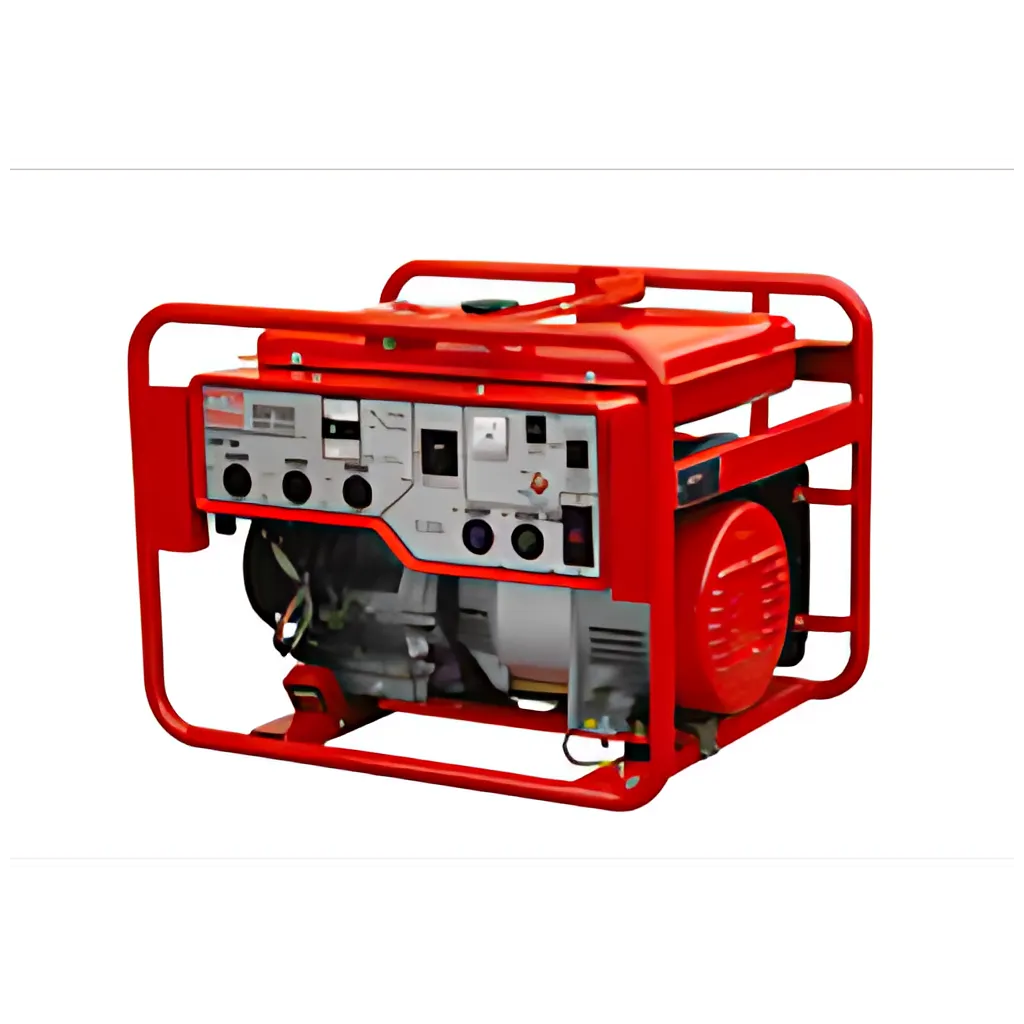

GDP5HA GENERATOR 5kW/180Hz-4kW60Hz, 11-HP HONDA

-Powers up to three 2-inch (50 mm) FXA-series high cycle vibrators
-Control panel has separate 60Hz and 180Hz outlets
-Folding lifting bale is standard equipment
-Standard voltmeter assists in troubleshooting
-Produces 3.6kW of continuous 120/240-volt 60-cycle power for standard power tools
-Full panel GFCI protection - OSHA and NEC compliant

UNIT SPECIFICATIONS:
Alternator Design: Brushless Revolving Field Type
Fuel Tank Capacity: 5 gal 19 L
Frequency: 60/180 Hz

60HZ POWER OUTPUT
Phase: Single
Continuous Outpu:t 3.6 kW
Maximum Output: 4 kW
Voltage: 120/240 V
Continuous Amps: 30A @ 120V 15A @ 240V
Maximum Amps: 33A @ 120V 16.5A @ 240V

180HZ POWER OUTPUT
Phase: 3-Phase
Continuous Output: 5 kVA
Voltage: 230 V
Continuous Amps: 12.5 A

RECEPTABLES & CIRCUIT BREAKERS
Circuit Breakers: 60Hz - 30 A 180Hz - A
Number of Poles: 60Hz - 2 180Hz - 3
1 Receptacle of Each: L6-20R 250V T-Lock 20A, L5-30R 125V T-Lock 30A
3 Receptacles of Each: NEMA 7410 230V T-Lock 12.5A

Dimensions & Weights
Overall Length: 28.34 in 72 mm
Overall Width: 22 in 55.88 mm
Overall Height: 21.25 in 54 mm
