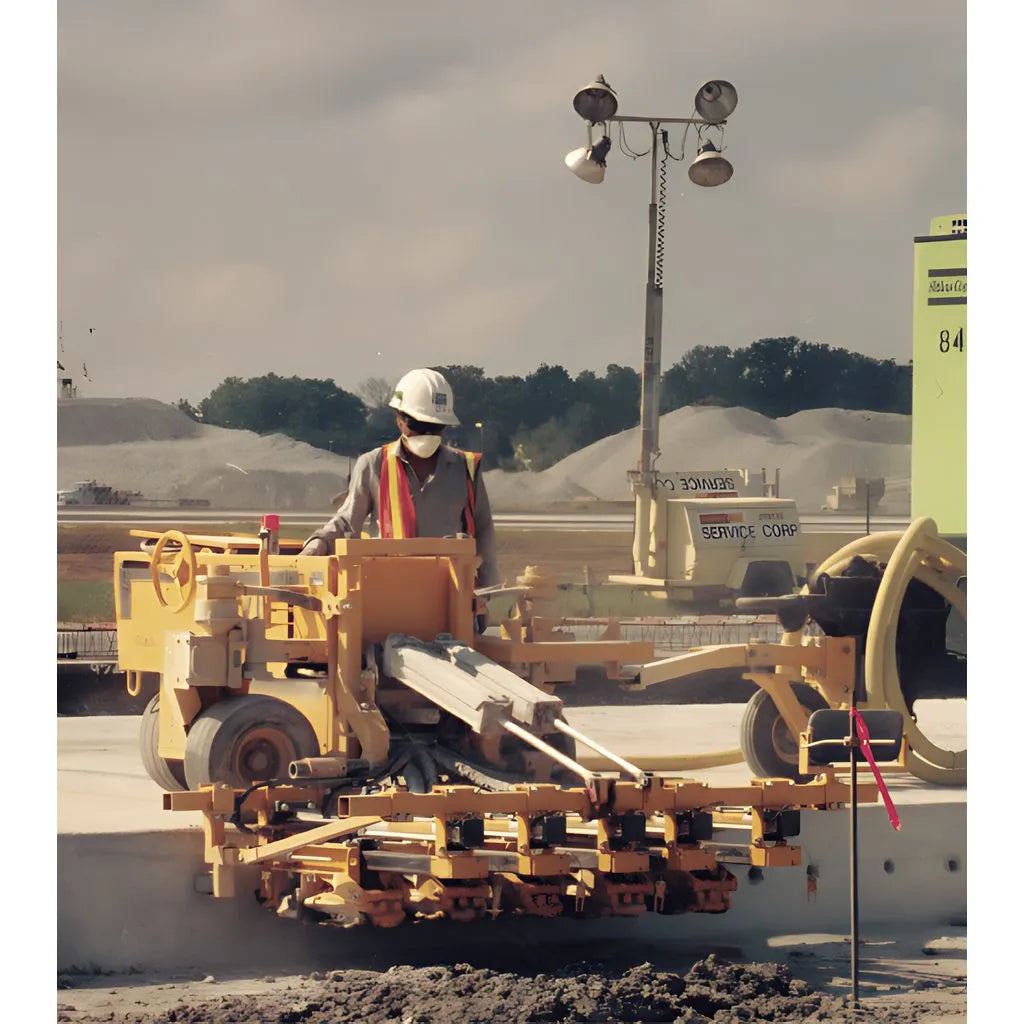

Get the most gang for your buck with the 210B-5 SRA. With this machine, your crews can drill as many as five holes at once to meet even the tightest deadlines. It’s self-propelled for easy maneuverability, and it auto-aligns for accurate and fast repositioning. The fully pneumatic 210B-5 SRA requires 500 cfm and can tow the air compressor, which eliminates the need for a separate vehicle and saves space on the jobsite. Whether your projects are large or small, the 210B-5 SRA can handle it all.

Horizontal Position

• Lower Length (A): 47 in (119.4 cm)
• Overall Length (A) + (C): 117 in (297.2 cm)
• Cart Length (C): 70 in (177.8 cm)
• Wheel Base (D): 58 in (147.3 cm)
• Width: 60 in (152.4 cm)
• Height: 44 in (111.8 cm)
• Weight: 2400 lbs (1089.6 kg)
• Drill Distance From Corner: 6 in (15.2 cm)
• Drill Distance From Ground: 3 in (7.6 cm)
• Drill Depth (std.): 18 in (45.7 cm)
• Drill Bit Diameter: 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
• Distance From Wheel to Center of Bit: N/A
• Drill Motor (pneumatic): CP 32A
• Drill Motor Weight: 54 lbs (24.5 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 500 cfm (14 m^3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 36 fpb (49 J)
• Hammer Speed: 2200 bpm
• Speed: 288 rpm

Vertical Position

• Lower Length (A): 47 in (119.4 cm)
• Overall Length (A) + (B): 91 in (231.1 cm)
• Frame Length (B): 44 in (111.8 cm)
• Width: 47 in (119.4 cm)
• Height: 35 in (88.9 cm)
• Weight: 1500 lbs (681 kg)
• Drill Distance From Corner: 6 in (15.2 cm)
• Drill Distance From Ground: 3 in (7.6 cm)
• Drill Depth (std.): 18 in (45.7 cm)
• Drill Bit Diameter: 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
• Drill Motor (pneumatic): CP 32A
• Drill Motor Weight: 54 lbs (24.5 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 300 cfm (8.4 m^3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 36 fpb (49 J)
• Hammer Speed: 2200 bpm
• Speed: 288 rpm
