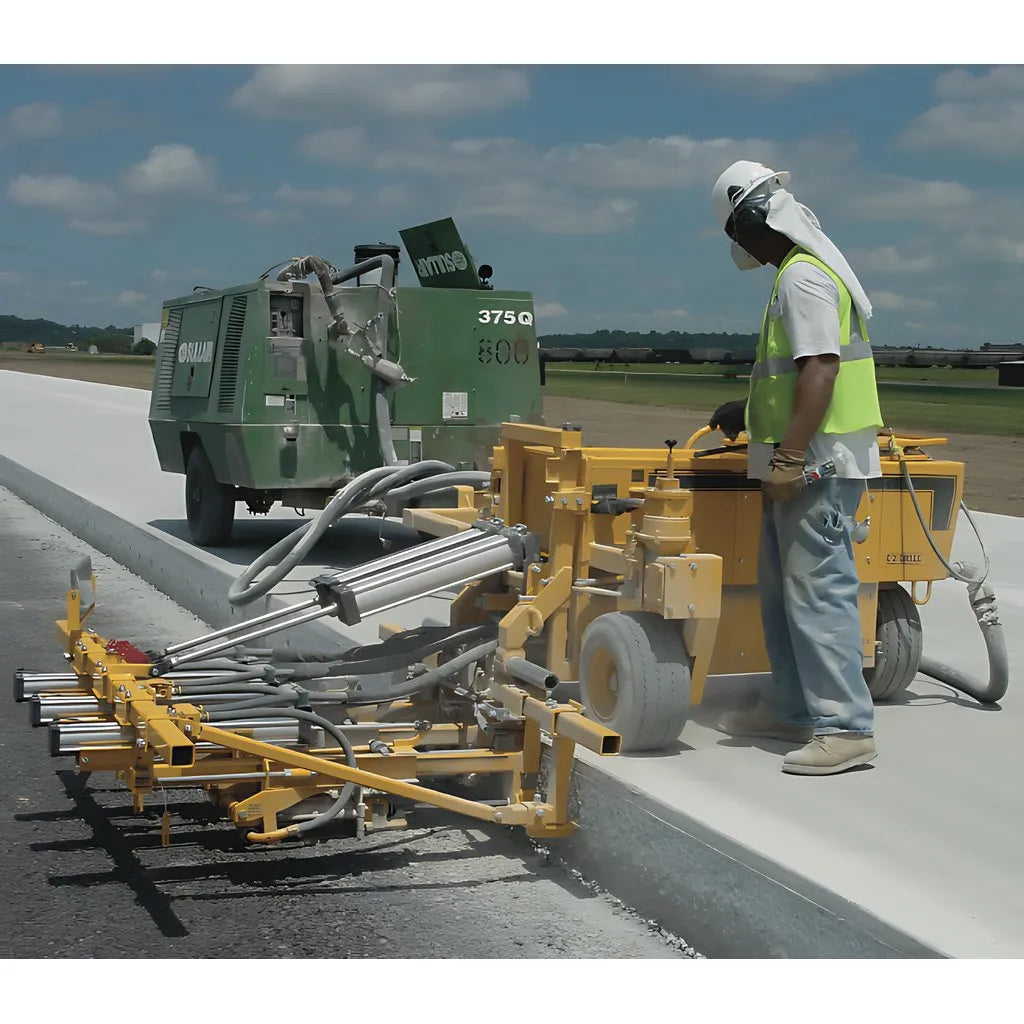

Drill up to three holes at once with the 210B-3 SRA slab rider. It features individually adjustable drill systems for drilling holes every 12 to 36 inches on center, and you can operate within a 4-foot patch and drill into slabs as thick as 24 inches. The 210B-3 SRA requires 300 cfm and is self-propelled for hassle-free maneuverability. To easily tow the air compressor, equip it with the optional tow bar package.

Horizontal Position

• Lower Length (A): 47 in (119.4 cm)
• Overall Length (A) + (C): 117 in (297.2 cm)
• Cart Length (C): 70 in (177.8 cm)
• Wheel Base (D): 58 in (147.3 cm)
• Width: 60 in (152.4 cm)
• Height: 44 in (111.8 cm)
• Weight: 2000 lbs (908 kg)
• Drill Distance From Corner: 6 in (15.2 cm)
• Drill Distance From Ground: 3 in (7.6 cm)
• Drill Depth (std.): 18 in (45.7 cm)
• Drill Bit Diameter: 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
• Distance From Wheel to Center of Bit: N/A
• Drill Motor (pneumatic): CP 32A
• Drill Motor Weight: 54 lbs (24.5 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 300 cfm (8.4 m^3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 36 fpb (49 J)
• Hammer Speed: 2200 bpm
• Speed: 288 rpm

Vertical Position

• Lower Length (A): N/A
• Overall Length (A) + (C): 91 in (231.1 cm)
• Cart Length (C): 70 in (177.8 cm)
• Wheel Base (D): 58 in (147.3 cm)
• Width: 60 in (152.4 cm)
• Height: Varies
• Weight: 2000 lbs (908 kg)
• Drill Distance From Corner: N/A
• Drill Distance From Ground: up to 12 in (30.5 cm)
• Drill Depth (std.): 18 in (45.7 cm)
• Drill Bit Diameter: 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
• Distance From Wheel to Center of Bit: 23 1/2 in (59.7 cm)
• Drill Motor (pneumatic): CP 32A
• Drill Motor Weight: 54 lbs (24.5 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 300 cfm (8.4 m^3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 36 fpb (49 J)
• Hammer Speed: 2200 bpm
• Speed: 288 rpm
