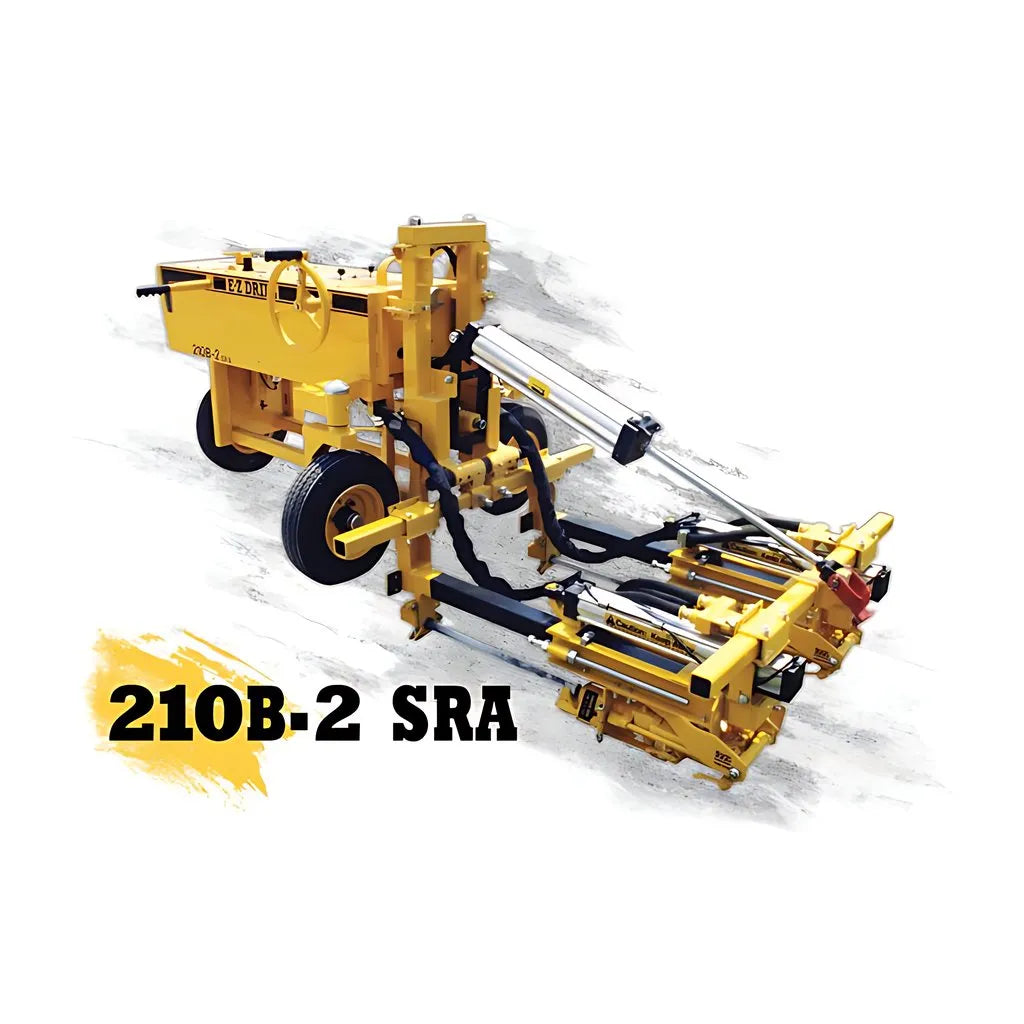

EZ Drill 210B-2 SRA Slab Rider Double Drill

Achieve greater efficiency when drilling on slab with the 210B-2 SRA. It’s equipped with two-gang drill system that operates simultaneously and are adjustable to drill every 12 to 36 inches on center. It also can be customized to meet wider spacing requirements. The 210B-2 SRA requires 200 cfm and fits within a 4-foot patch. It also can be configured for on-grade drilling. With its patented tri-steering system, the drill repositions quickly and moves easily.

Horizontal Position

• Lower Length (A): 46 in (116.8 cm)
• Lower Length (A) + (C): 100 in (254.0 cm)
• Cart Length (C): 54 in (137.2 cm)
• Wheel Base (D): 48 in (121.9 cm)
• Width: 54 in (137.2 cm)
• Height (E): 39 in (99.1 cm)
• Weight: 1,150 lbs (522.1 kg)
• Drill Distance From Corner: 6 in (15.2 cm)
• Drill Distance From Ground: 3 in (7.6 cm)
• Drill Depth (std.): 18 in (45.7 cm)
• Drill Bit Diameter: 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
• Distance From Wheel to Center of Bit (F): N/A
• Drill Motor (pneumatic): CP 32A
• Drill Motor Weight: 54 lbs (24.5 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 200 cfm (5.6 m^3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 36 fpb (49 J)

Vertical Position

• Lower Length (A): N/A
• Lower Length (A) + (C): 73 in (185.4 cm)
• Cart Length (C): 54 in (137.2 cm)
• Wheel Base (D): 48 in (121.9 cm)
• Width: 54 in (137.2 cm)
• Height (E): Varies
• Weight: 1,150 lbs (522.1 kg)
• Drill Distance From Corner: N/A
• Drill Distance From Ground: Up to 12 in (30.5 cm)
• Drill Depth (std.): 18 in (45.7 cm)
• Drill Bit Diameter: 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
• Distance From Wheel to Center of Bit (F): 21 1/2 in (54.6 cm)
• Drill Motor (pneumatic): CP 32A
• Drill Motor Weight: 54 lbs (24.5 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 200 cfm (5.6 m^3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 36 fpb (49 J)
