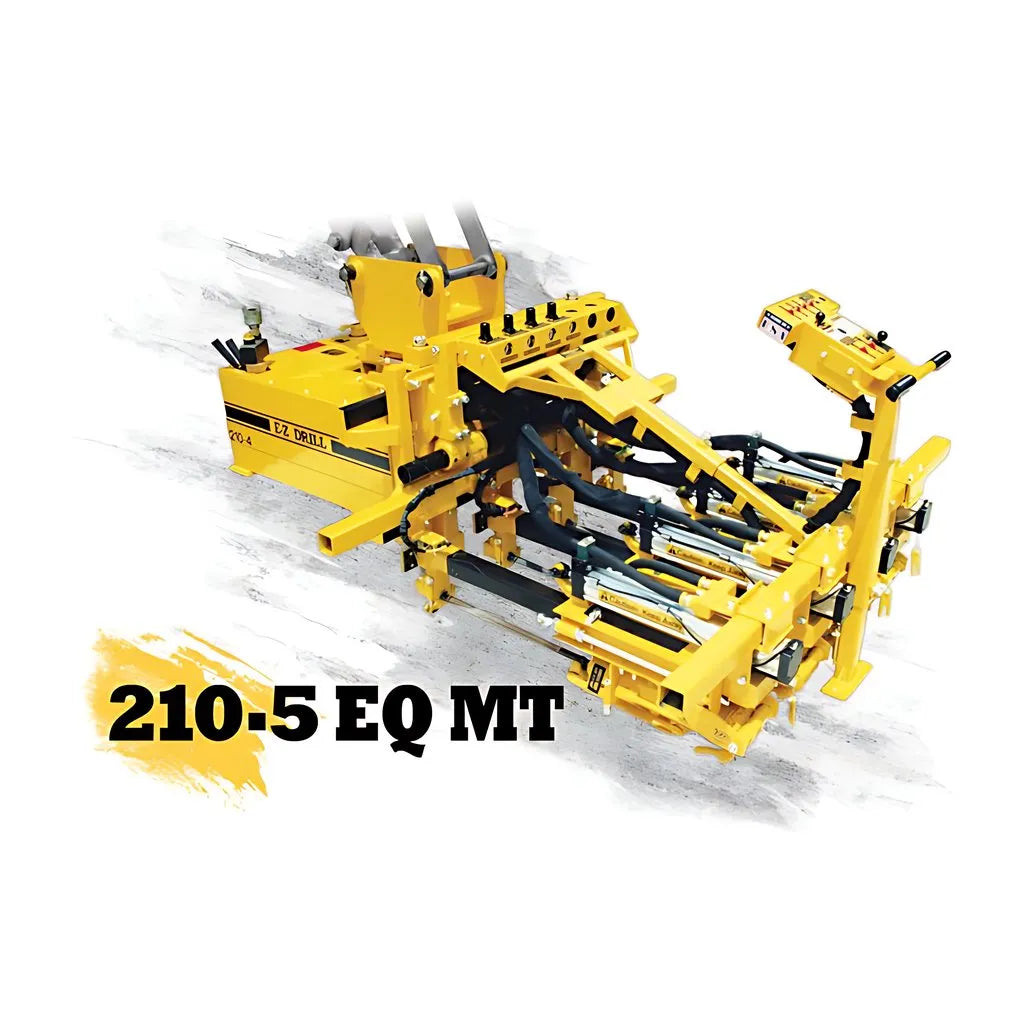

With the 210-5 EQ MT you can drill five holes at once and quickly reposition the drill using the fingertip controls to shift it left or right. Like all of E-Z Drill’s equipment-mounted models, the 210-5 EQ MT can drill to 18 inches deep. You can power it with a 500 cfm air compressor or with our 120-gallon air tank and a 375 cfm air compressor. The drill features a safety swivel lock that secures it for safe transportation from patch to patch.

Horizontal Position

• Lower Length (A): 47 in (119.4 cm)
• Overall Length (A) + (B): 91 in (231.1 cm)
• Frame Length (B): 44 in (111.8 cm)
• Width: 47 in (119.4 cm)
• Height: 35 in (88.9 cm)
• Weight: 1900 lbs (862.6 kg)
• Drill Distance From Corner: 6 in (15.2 cm)
• Drill Distance From Ground: 3 in (7.6 cm)
• Drill Depth (std.): 18 in (45.7 cm)
• Drill Bit Diameter: 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
• Drill Motor (pneumatic): CP 32A
• Drill Motor Weight: 54 lbs (24.5 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 500 cfm (14.0 m^3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 36 fpb (49 J)
• Hammer Speed: 2200 bpm
• Speed: 288 rpm
