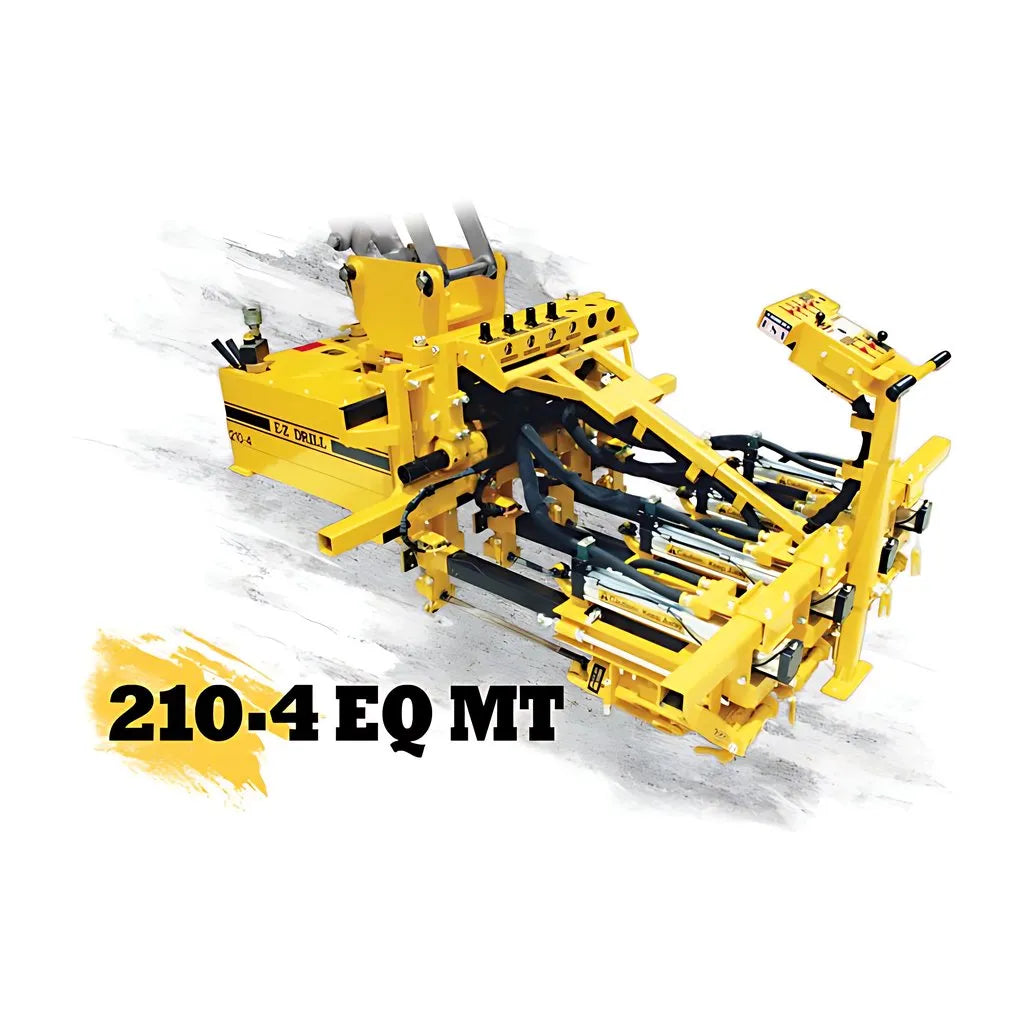

Attach the 210-4 EQ MT to nearly any backhoe or excavator for drilling four holes at once. You can drill to depths of 18 inches and adjust the height of the gangs for accurate drilling in areas with extreme asphalt overlay. The unit’s “floating” bucket curl pin helps level the drill, which saves you time by eliminating the need for manual leveling or positioning.

Horizontal Position

• Lower Length (A): 47 in (119.4 cm)
• Overall Length (A) + (B): 91 in (231.1 cm)
• Frame Length (B): 44 in (111.8 cm)
• Width: 47 in (119.4 cm)
• Height: 35 in (88.9 cm)
• Weight: 1700 lbs (771.8 kg)
• Drill Distance From Corner: 6 in (15.2 cm)
• Drill Distance From Ground: 3 in (7.6 cm)
• Drill Depth (std.): 18 in (45.7 cm)
• Drill Bit Diameter: 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
• Drill Motor (pneumatic): CP 32A
• Drill Motor Weight: 54 lbs (24.5 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 400 cfm (11.2 m^3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 36 fpb (49 J)
• Hammer Speed: 2200 bpm
• Speed: 288 rpm
