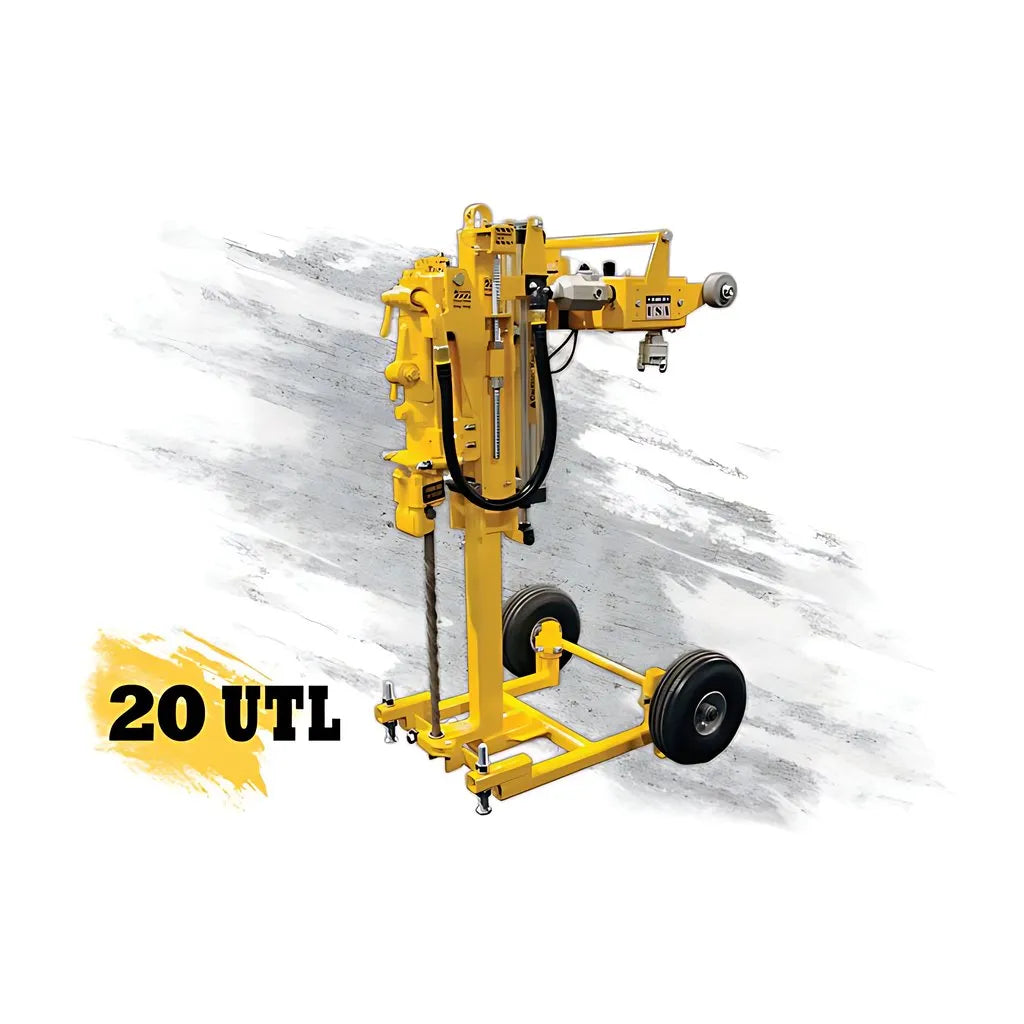

Use the 20 UTL to increase safety and speed on vertical drilling projects. The frame-mounted drill absorbs vibrations to prevent hand, arm and back injuries commonly associated with handheld drilling. Operators can use the 20 UTL in a variety of applications, such as pinpointing gas leaks, where speed, precision and safety are paramount. Users can drill 5/8- to 2-1/2-inch holes as deep as 18 inches with a minimum of 100 cfm. We also can configure the 20 UTL to drill several feet deep for specific application requirements.

Vertical Position

• Lower Length (C): 32 1/2 in (82.6 cm)
• Wheel Base (B): 29 in (73.7 cm)
• Height (A): 50 in (127.0 cm)
• Weight: 207 lbs (94 kg)
• Drill Distance From Corner: N/A
• Drill Distance From Ground: N/A
• Drill Depth (std.): 18 in (45.7 cm)
• Drill Bit Diameter: 5/8 in to 2 1/2 in (15.9 mm to 63.5 mm)
• Drill Motor (pneumatic): CP 32A
• Drill Motor Weight: 54 lbs (24.5 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 100 cfm (2.8 m^3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 36 fpb (49 J)
• Hammer Speed: 2200 bpm
• Speed: 288 rpm
