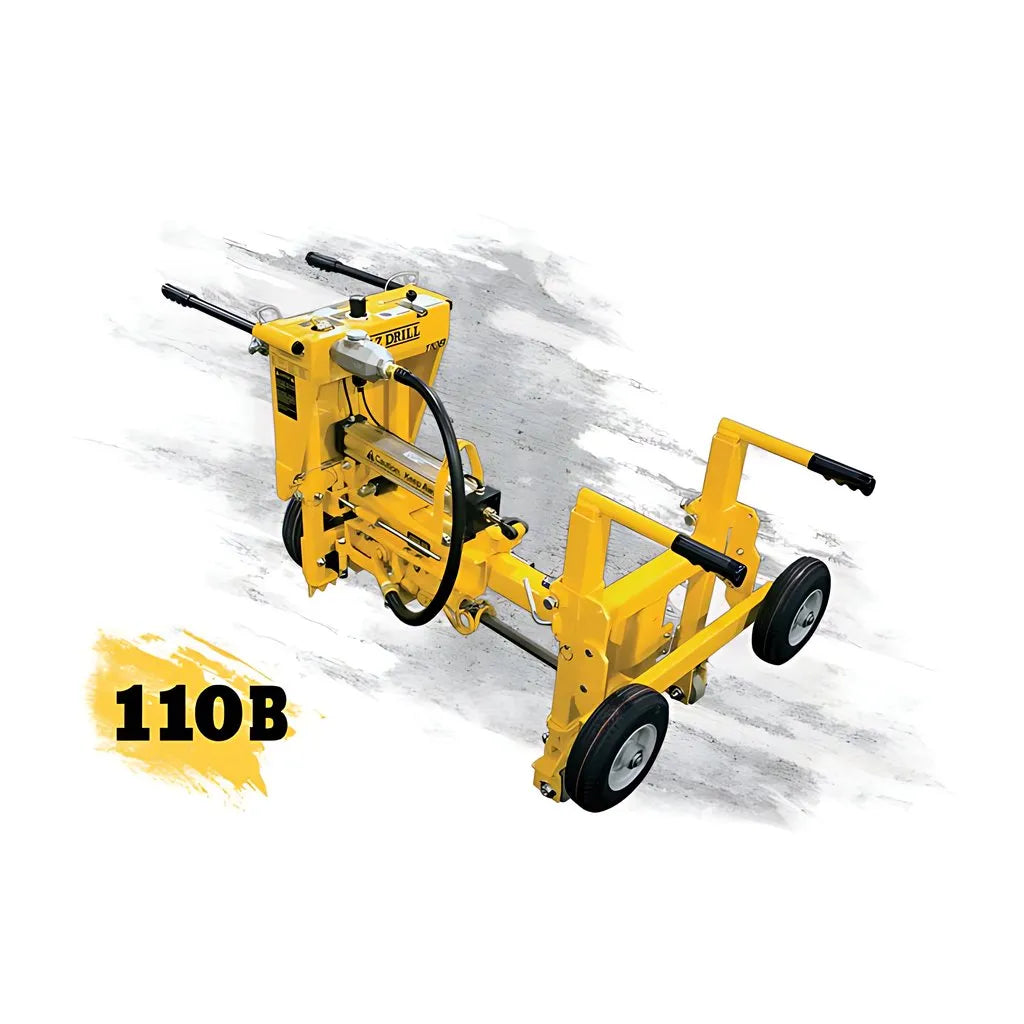

Achieve greater efficiency with the 110B single-gang, on-grade drill that’s equipped with dual-purpose guide wheels to quickly transition from riding along the face of the slab to moving around the jobsite. The drill operates on the subgrade and fits in a 3-foot patch. A minimum of 50 cfm is required to run the totally pneumatic system, which can drill holes as deep as 12 inches in diameters of 5/8 of an inch to 2 inches. Users can install the optional hole spacing guide, which clearly indicates where to place the 170-pound drill, for even greater accuracy and efficiency when repositioning.

Horizontal Position

• Lower Length (A): 41 3/8 in (105.1 cm)
• Lower Length w/ Back Wheel Removed: 34 3/4 in (88.3 cm)
• Width (B): 12 in (30.5 cm)
• Height (C): 29 in (73.7 cm)
• Weight: 170 lbs (77.2 kg)
• Drill Distance From Corner: 6 in (15.2 cm)
• Drill Distance From Ground: 3 in (7.6 cm)
• Drill Depth (std.): 12 in (30.5 cm)
• Drill Bit Diameter: 5/8 in to 2 in (15.9 mm to 50.8 mm)
• Drill Motor (pneumatic): CP 22
• Drill Motor Weight: 28 lbs (12.7 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 50 cfm (1.4 m3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 24 fpb (32.6 J)
• Hammer Speed: 2600 bpm
• Speed: 210 rpm

Vertical Position

• Lower Length (A): N/A
• Lower Length w/ Back Wheel Removed: N/A
• Width (B): 12 in (30.5 cm)
• Height (C): N/A
• Weight: 170 lbs (77.2 kg)
• Drill Distance From Corner: N/A
• Drill Distance From Ground: Up to 12 in (7.6 cm)
• Drill Depth (std.): 12 in (30.5 cm)
• Drill Bit Diameter: 5/8 in to 2 in (15.9 mm to 50.8 mm)
• Drill Motor (pneumatic): CP 22
• Drill Motor Weight: 28 lbs (12.7 kg)
• Chuck Size (std.): 7/8 in x 3 1/4 in (22.2 mm x 82.6 mm)
• Air Consumption (minimum): 50 cfm (1.4 m3/min)
• Operating Pressure: 90 psi (6.2 bar)
• Impact (ft. lbs./blow): 24 fpb (32.6 J)
• Hammer Speed: 2600 bpm
• Speed: 210 rpm
