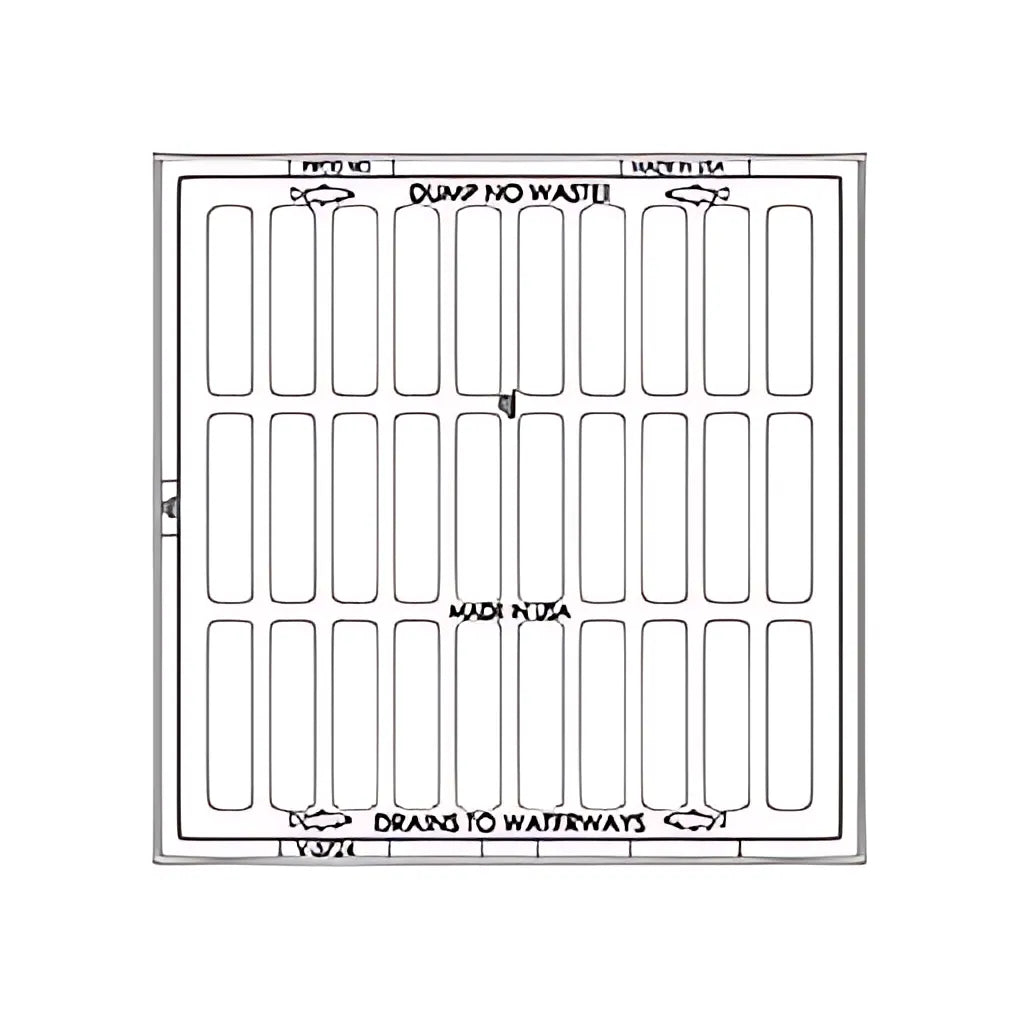

The EJ V5724 V5724-4 square catch basin assembly drains runoff from your property and offers you access to and protection for your underlying drainage structure. It includes a flat bar grate and angle frame, and features environmentally friendly 'Dump No Waste Drains to Waterways' badging.

• Grate dimensions: 24" long x 24" wide
• Frame outside dimensions: 25.875" long x 25.875" wide outer flange, with 2.625" overall height
• Frame clear opening dimensions: 24.25" long x 24.25" wide
• 335 sq. in. open area
• 'Dump No Waste Drains to Waterways' badging is cast directly into the cover, providing a longlasting environmentally friendly message alerting passersby to protect your local waterways
• Gray iron and ductile iron construction promise strength and integrity, offering the greatest protection for passersby and your underlying structure
• Undipped casting with natural patina for maximum environmental friendliness and resistance to rust and corrosion
• Heavy duty load rating is proof load tested to a minimum of 40,000lbs
• Meets material certifications ASTM A48 Class 35, ASTM A536 70-50-05, AASHTO M105, and AASHTO M306 standards
• Product made in USA
