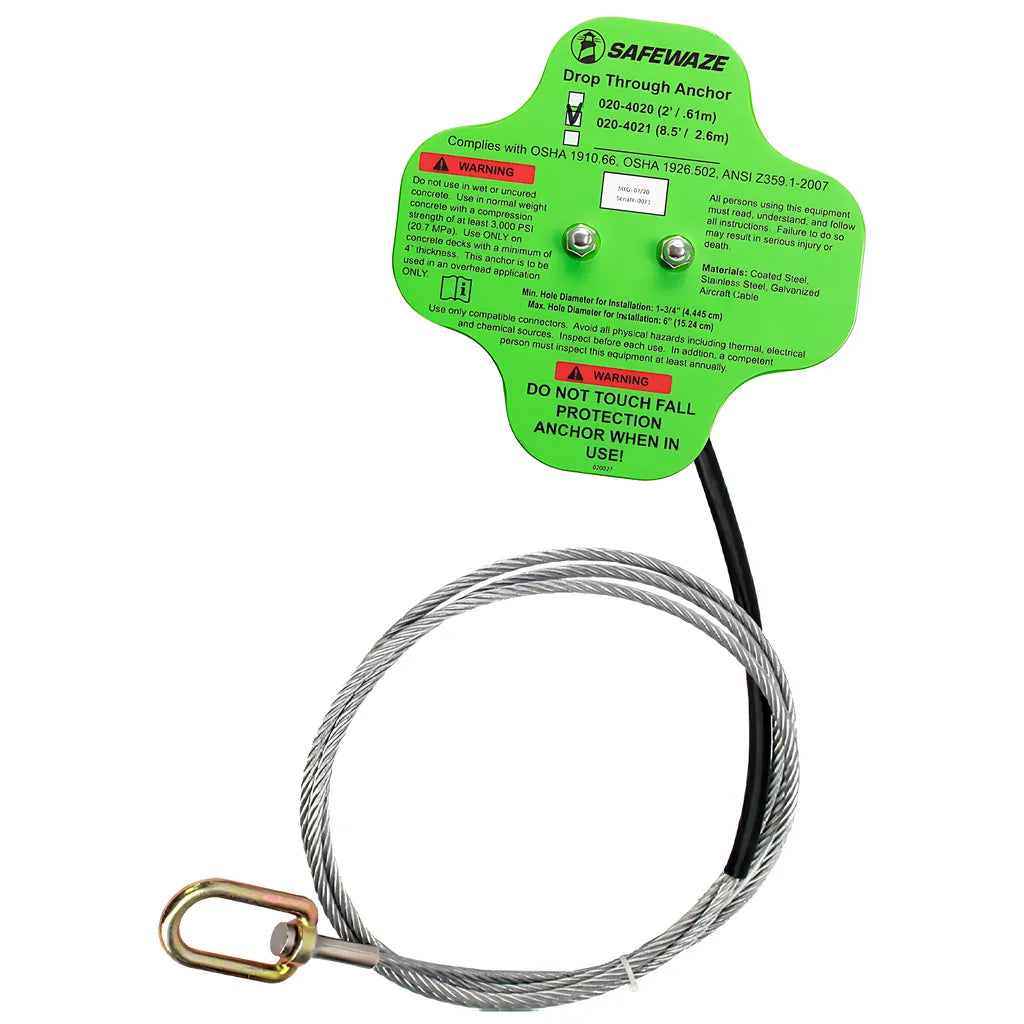

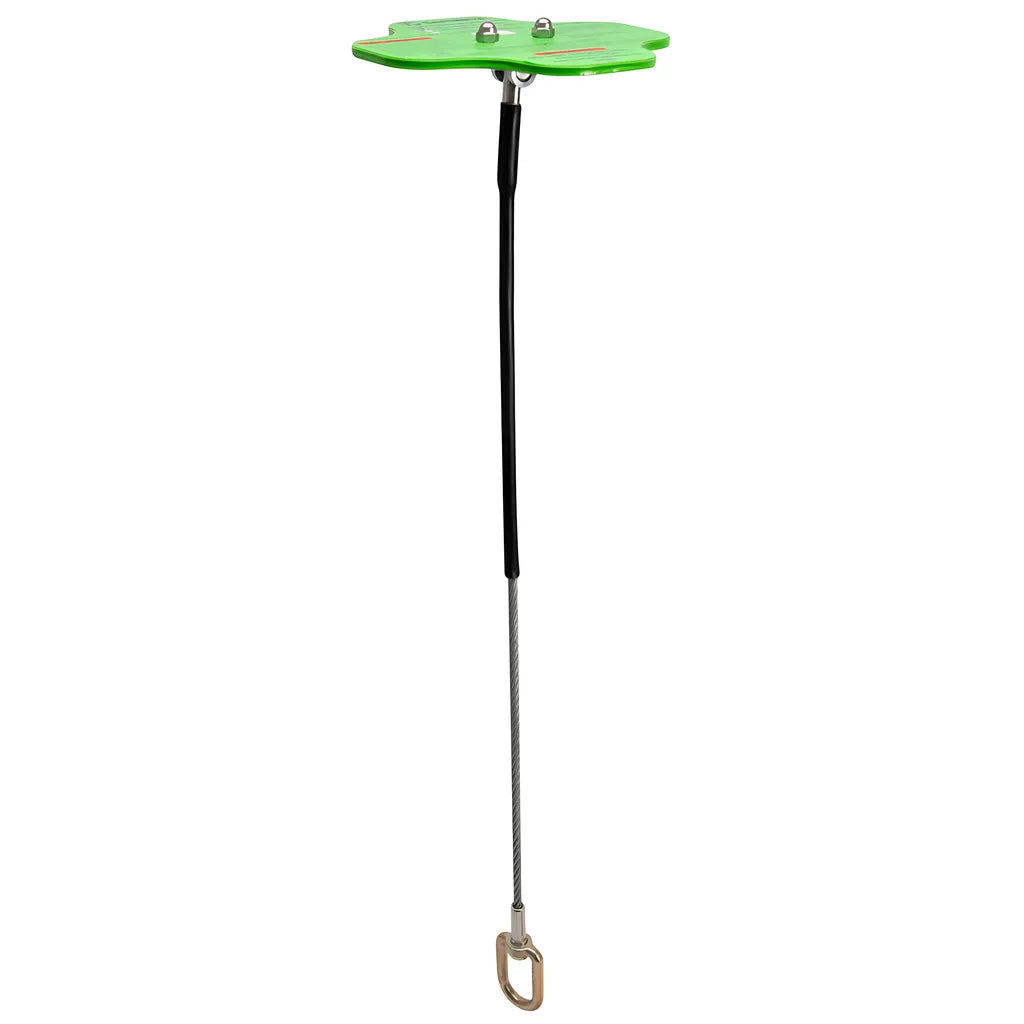

The Drop-Through Cable Anchor is a versatile anchor point for permanent or temporary use. Simply drop the captive eye and cable through openings in concrete, steel decking, grating or any 1-3/4" hole in a substrate compliant with fall protection requirements.

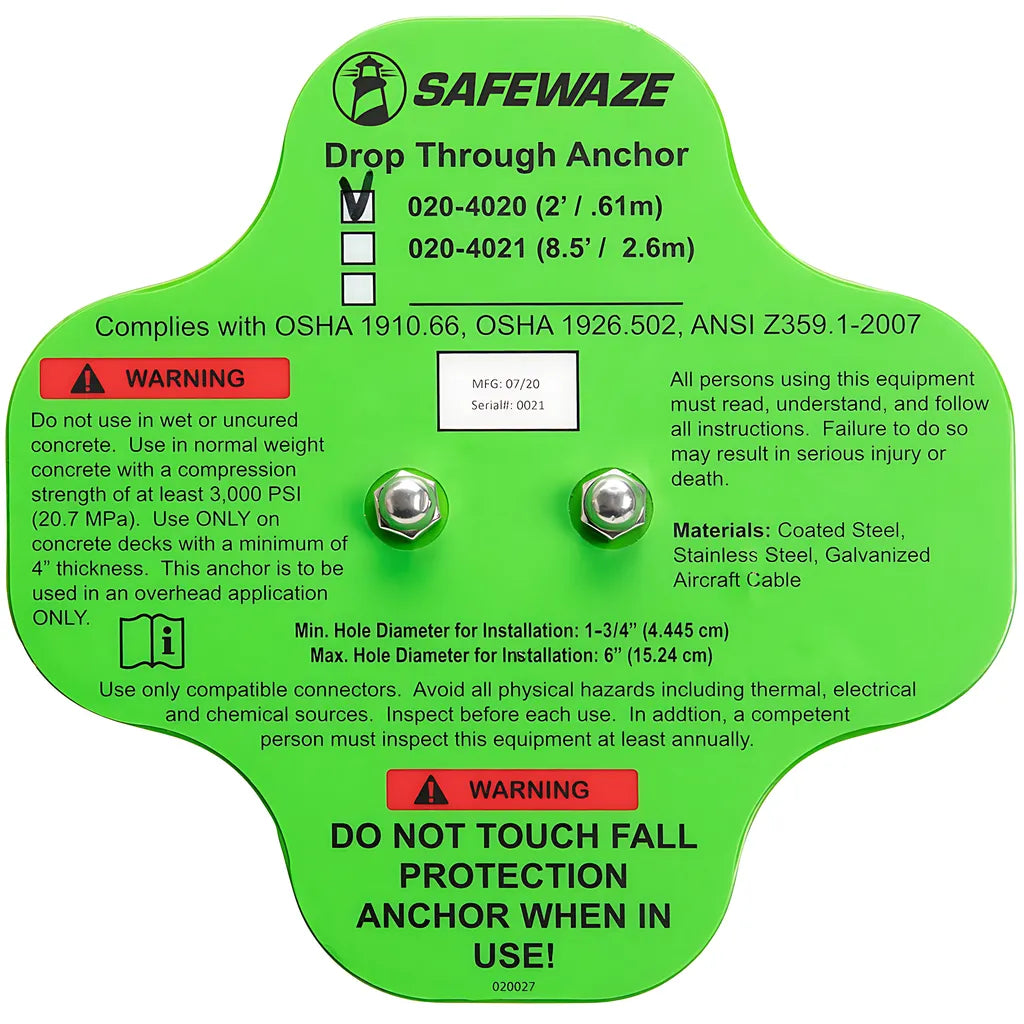

8? high visibility green steel plate
Forged steel swiveling connection point
1/4? steel cable with wear sleeve
Accommodates openings from 1.75? to 6?
Available in two lengths
Materials: Coated cable, stainless steel, galvanized steel
Weight: 3.9 lbs. (1.8 kg)
Length: 2.0' (0.6 m)
Minimum Breaking Strength: 5,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
OSHA Standards: 1926.502, 1910.140
