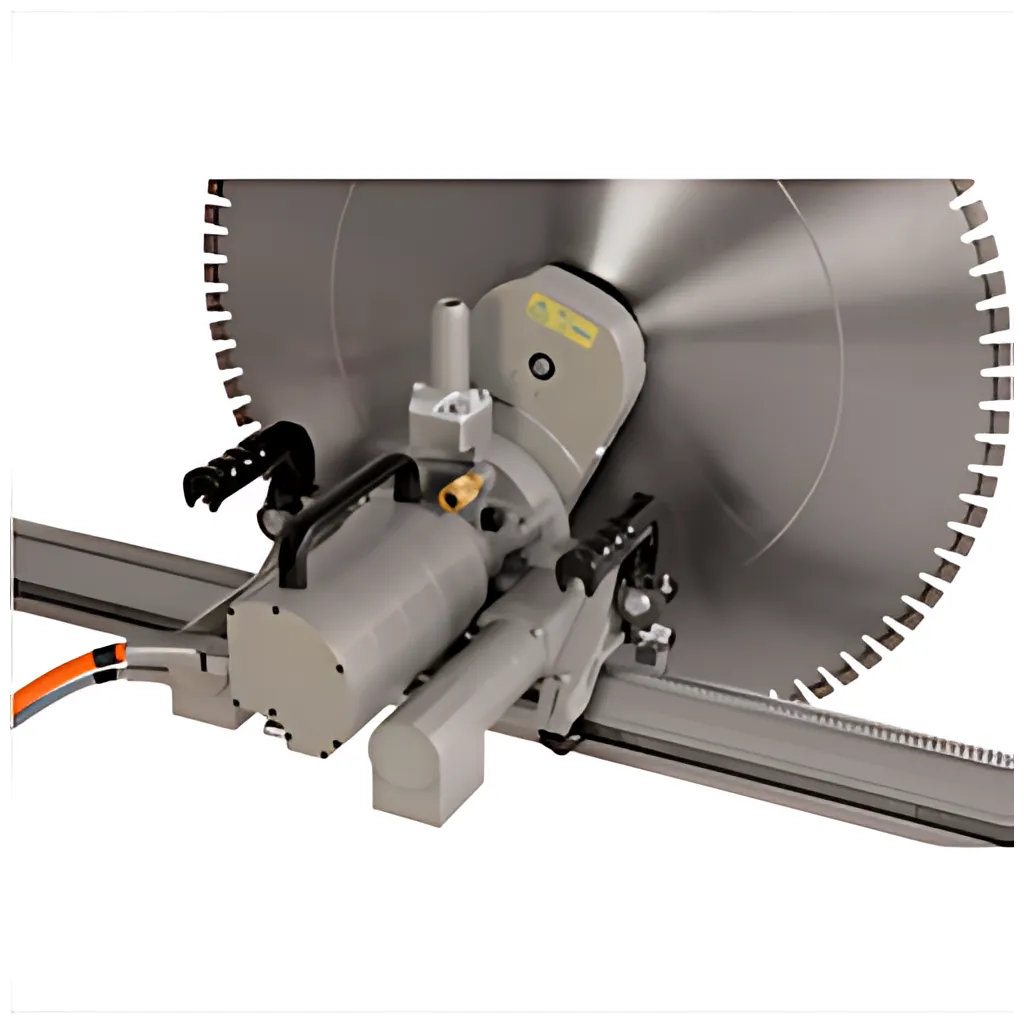

DIAMOND PRODUCTS: WSE1217 CONCRETE WALL SAW SYSTEM

BLADE:
-Maximum cutting depth: 22.5”
-Maximum blade capacity: 54”
-Maximum starter blade size: 32”
-Blade mount: Quick-release flange

DESIGN:
-Infinitely adjustable swivel arm rotates 360°
-2 carrying handles with locking function

MOTOR:
-Water cooled high frequency motor without gearbox
-Output at 32 amp 17 kW, 22.79 horsepower

POWER PACK/INVERTER INPUT:
-Voltage: 460 Volt
-Frequency: 50Hz/60Hz
-Output Frequency: 400 Hz

WEIGHT:
-Wall Saw WSE1217 including feed motors-without main drive blade motor: 56 lbs.
-Electric main blade motor only: 36 lbs.
-MINIMUM GENERATOR SIZE REQUIREMENT: 30kW
