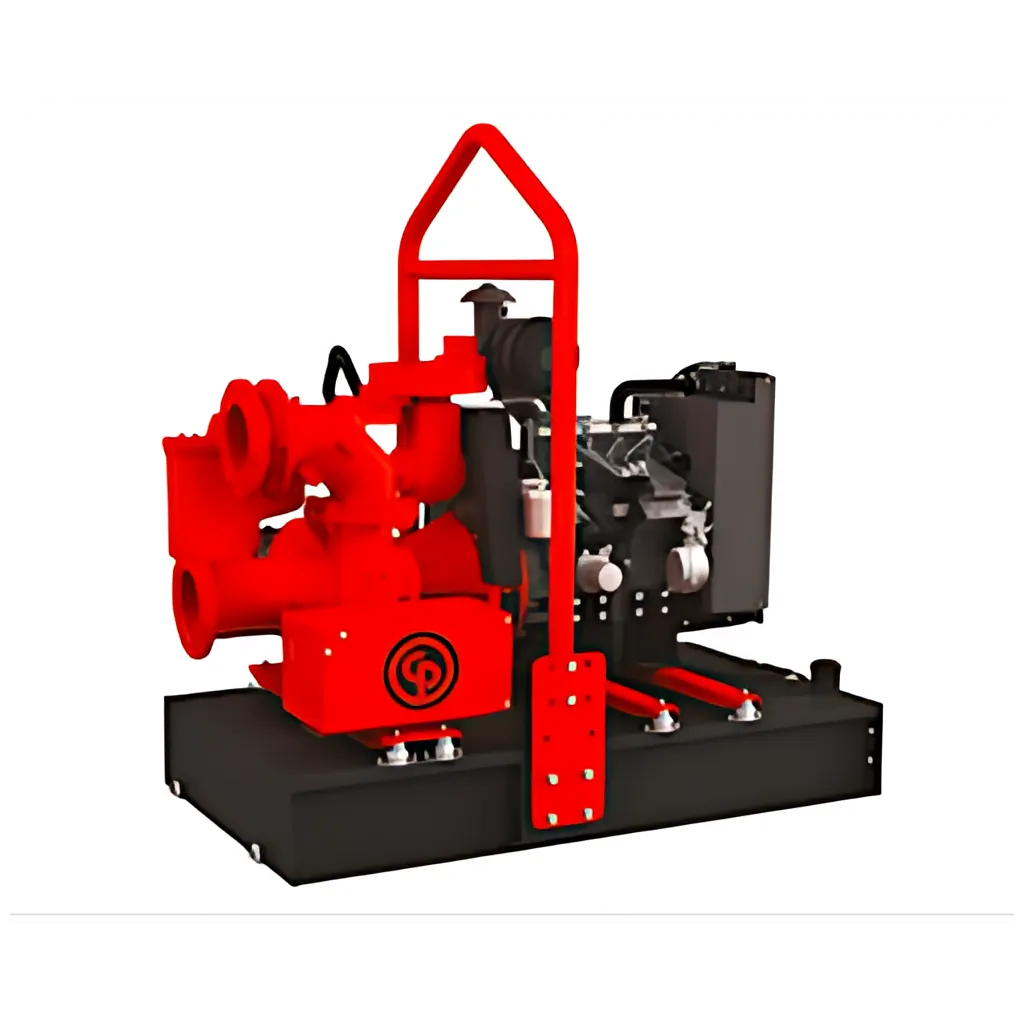

CHICAGO PNEUMATIC VACUUM PRIME CENTRIFUGAL PUMP

PUMP:

FEATURES:
Qmax: 300 m³/h - 5.000 l/min (1,320 USgpm)
Hmax: 28 m (91 ft)
Q max eff.: 200 m³/h - 3.330 l/min (880 USgpm)
Eff. max: 75%
Suction port: Flanged - ANSI 6"
Delivery port: Flanged - ANSI 6"
Impeller type: Semi-Open, 2 vane
Solids handling: 50 mm (2")

MATERIALS:
Casing: EN-GJL-200 cast iron
Impeller: EN-GJS-400 cast iron
-Wear plates: EN-GJL-200 rubber lined cast iron
-Number of plateS: 2
-Shaft: 39NiCrMo3 steel
-Flushing: Yes
-Mechanical seal: Tungsten carbide / Tungsten carbide
-Elastomers: VITON

PRIMING SYSTEM:

FEATURES:
Vacuum pump type: rotary vane
Nominal air capacity: 75 m³/h (44.1 cfm)
Max vacuum: 0,9 bar
Separator type: Simplex
Separator material: EN-GJL-200 cast iron
Drives: Link belt

ENGINE:

Make: Kohler
Model: KDI 1903TCR (KL31)
Type: Diesel turbo common rail
Displacement: 1.861 cm³ (114 in³)
No. cylinders: 3
Cooling: Liquid with radiator
Rpm type: Variable
Standard speed: 1.800 rpm
US emissions: EPA Tier IV final
Starting: Electric
Starting voltage: 12 V
