Features and Benefits

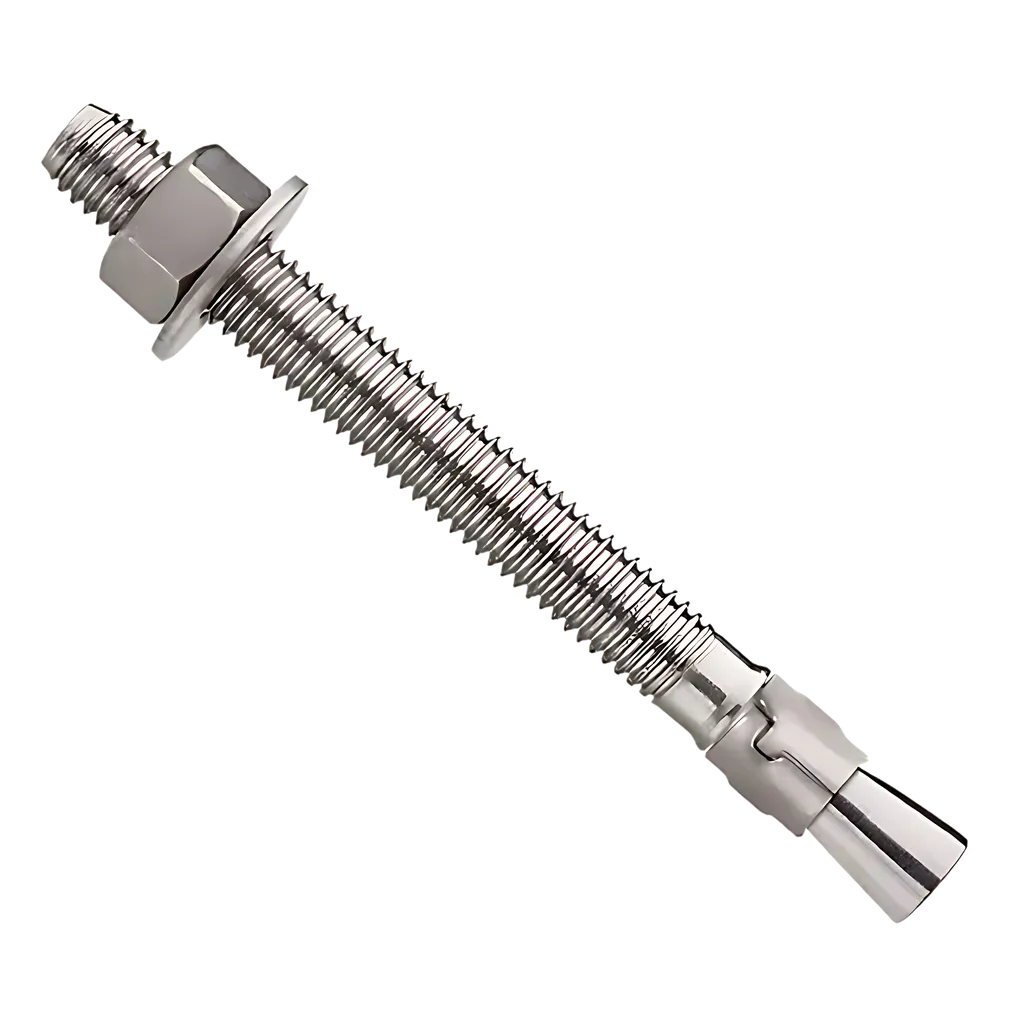

• Fully threaded, medium duty all-purpose anchor
• Length ID stamped on each threaded anchor
• Anchors can be installed through the fixture for hole spotting not required
• Chamfered impact section prevents damage to threads
• Clip design prevents spinning during installation
• Nominal drill bit diameter same as anchor diameter

General Applications

• Lighting standards and base plates
• Sills and support ledgers
• Retrofit projects and machinery anchorage
• Food and beverage facilities
• Water treatment plants and other marine applications

Approvals

• Tested in accordance with ASTM E488 and AC01 criteria
• FM Global (Factory Mutual) – File No. J.I. OK3A9.AH
• Underwriters Laboratory (UL Listed) – File No. EX1289
• Federal GSA Specification
• Meets the descriptive and proof load requirements of CID A-A-1923A, Type 4

Suitable Base Materials

• Normal-weight Concrete
• Structural Lightweight Concrete
• Grouted Concrete Masonry (CMU)
