• Power Stud+ Sd1 3/4"X4 14"-7440SD1-PWR-77
1 1

POWER STUD+ SD1 3/4"X4 14"

POWER STUD+ SD1 3/4"X4 14"

REQUEST QUOTATION

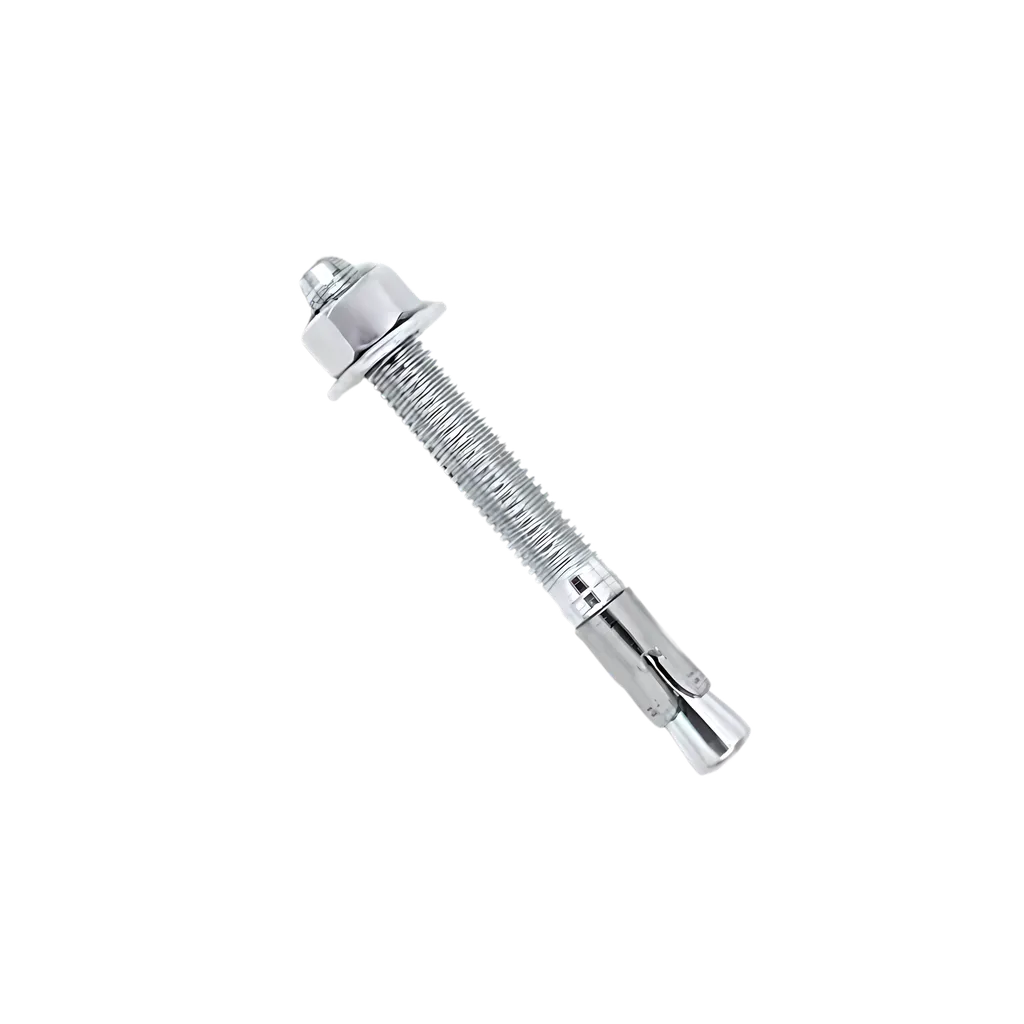

The Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.



Features:
  • Consistent performance in high and low strength concrete
  • Nominal drill bit size is the same as the anchor diameter
  • Anchor can be installed through standard fixture holes
  • Length ID code and identifying marking stamped on head of each anchor
  • Anchor design allows for follow-up expansion after setting under tensile loading



Approvals:
  • Structural connections, i.e., beam and column anchorage
  • Safety-related attachments
  • Interior applications / low level corrosion environment
  • Tension zone applications, i.e., cable trays and strut, pipe supports, fire sprinklers
  • Seismic and wind loading
