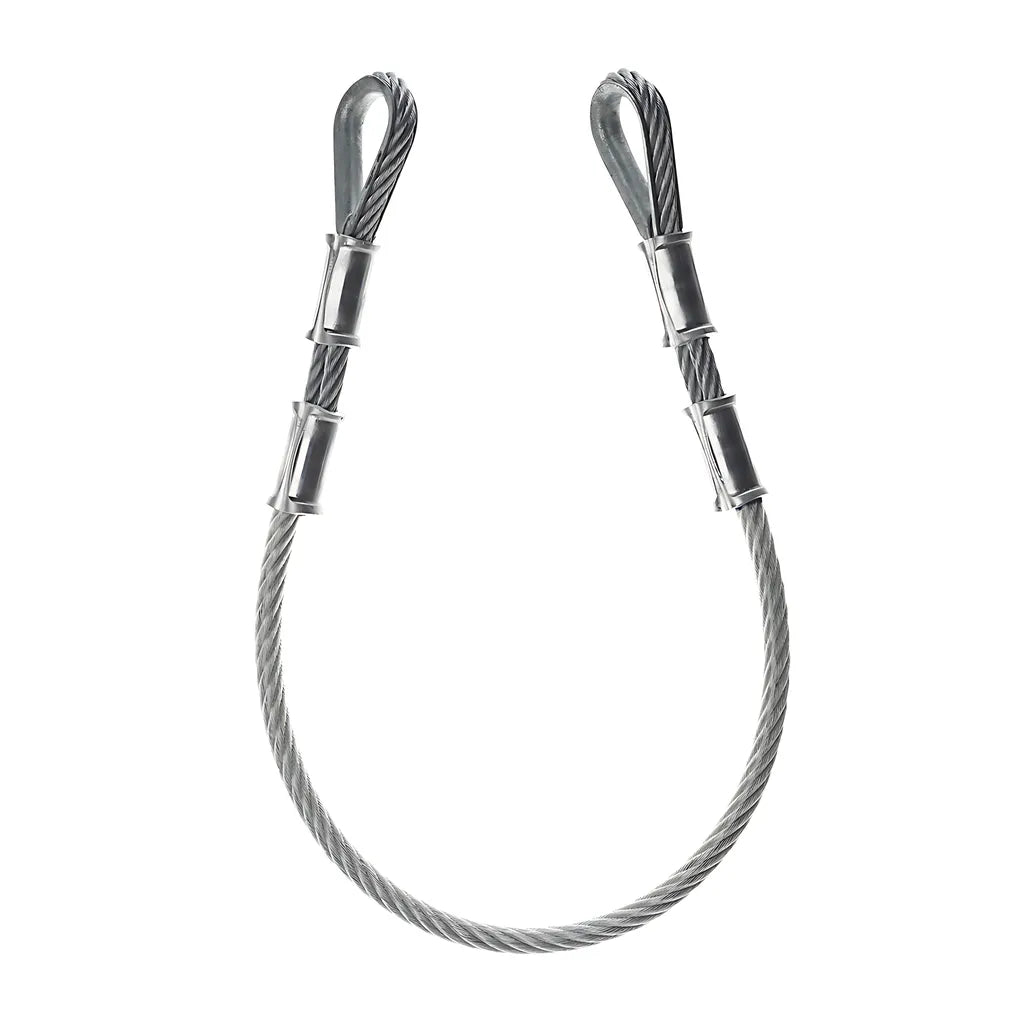

Cable Anchor
Cable Anchor
The Cable Anchor is designed to be used as a flip line anchor. Simply cinch around a compatible beam or other rated structure then attach a lanyard or SRL.
Lightweight and portable, easy install

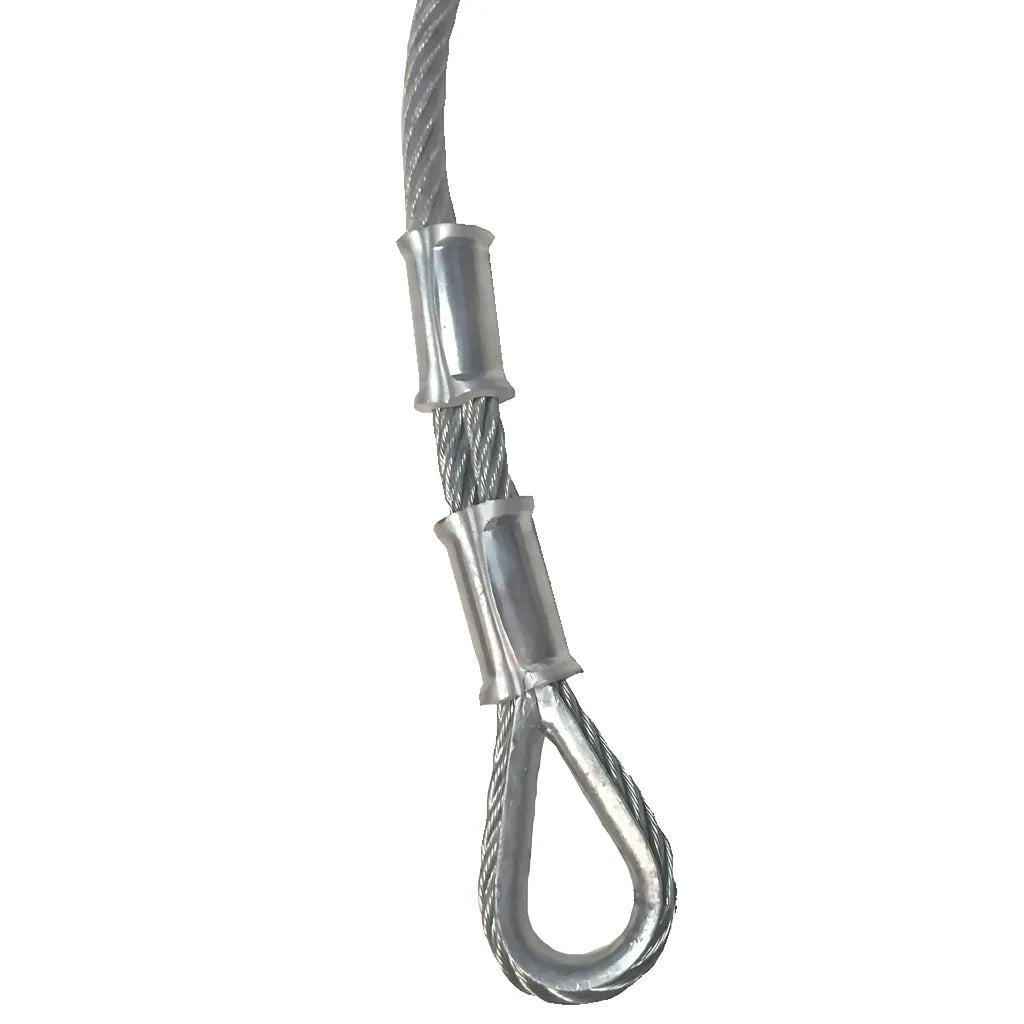

Thimble captive eye connection points on each end
Ideal for small-diameter anchorage situations
Attachment Points: Cable loops on each end

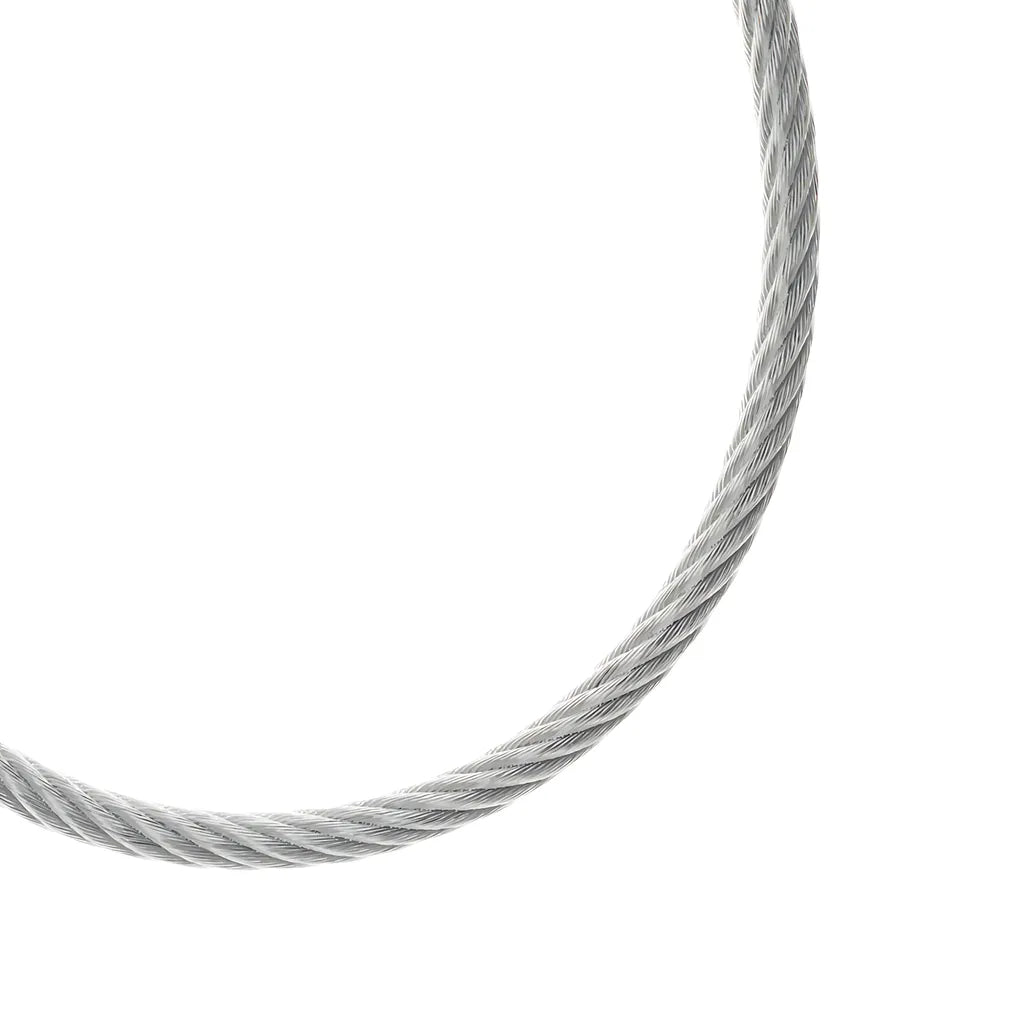

Materials: Coated 5/16" galvanized steel cable
Weight: 0.45 lb. (0.2 kg)
Length: 24" (457 mm)
Minimum Breaking Strength: 5,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.18-2017 Type T
OSHA Standards: 1926.502, 1910.140
