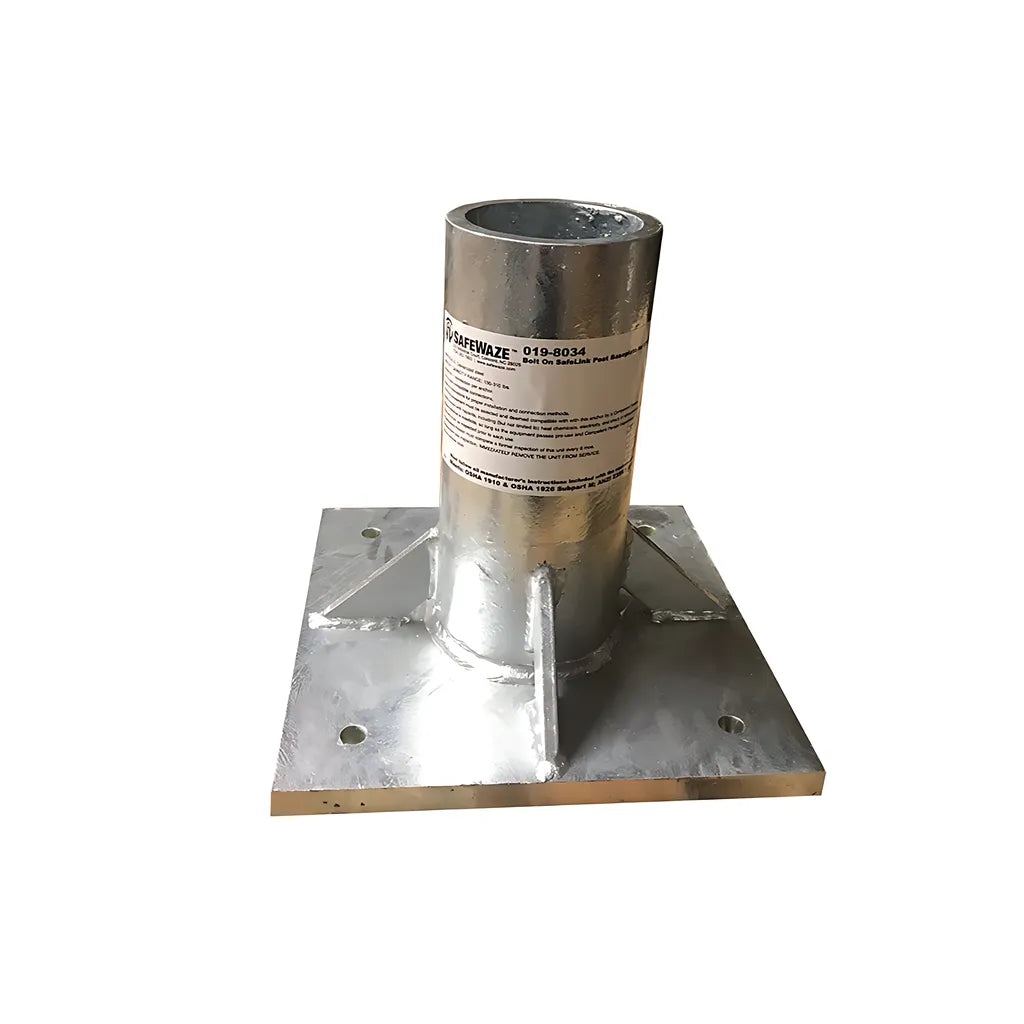

The Bolt-on SafeLink Post Baseplate is designed for use with the Safewaze SafeLink HLL System. Mounts securely to steel or concrete structures and used with our 7.5' aluminum post.
Use with FS-EX5501-5 aluminum post
For concrete installations:
– (4) 1/2” diameter anchor rods with epoxy
– (4) 1/2” diameter concrete mechanical anchors
For steel installation:
– (4) 1/2” grade 8 bolts with locking hardware
Materials: 3/4" (19.05 mm) galvanized plate steel
Weight: 53 lbs.
Height: 12.8"
Base Dimensions: 12" (304.8 mm) x 12" (304.8 mm)
ANSI Weight Capacity 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.1, A10.32
OSHA Standards: 1926.502
Mounting Surface: Concrete|Steel
