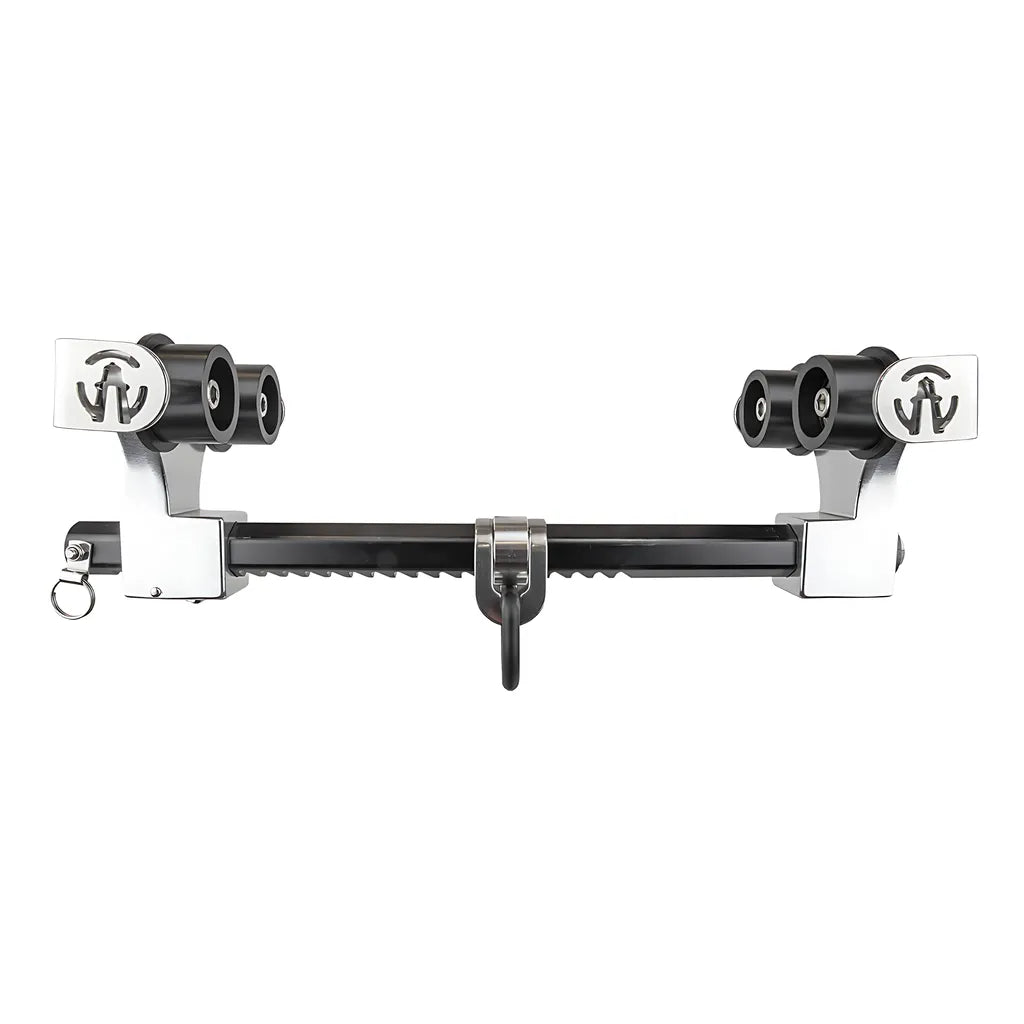

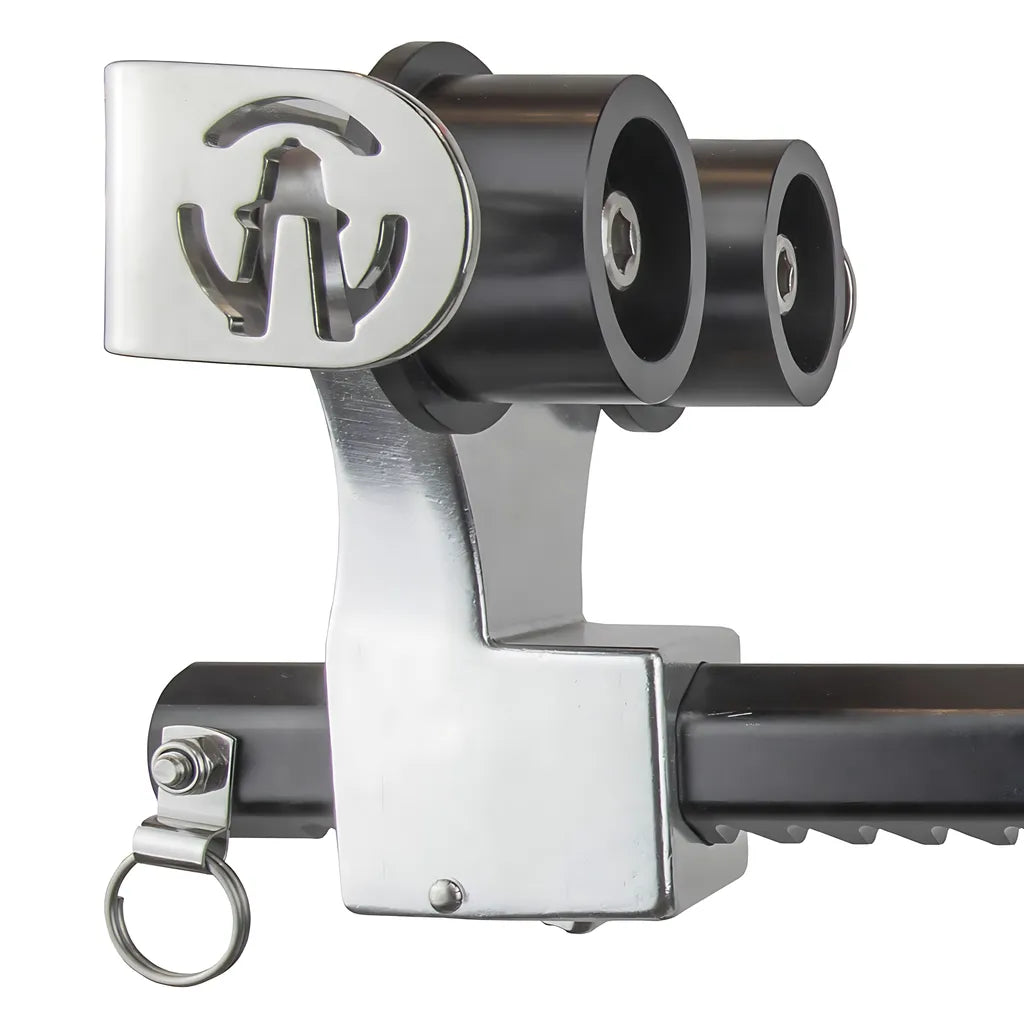

The Beam Trolley Anchor is easily positioned anywhere along an overhead horizontal I-beam. The durable nylon wheels glide smoothly over the beam surface while the steel D-ring provides an accessible tie-off point. The anchor is ideal for use in steel and specialty/food processing applications.
Lightweight aluminum body
Stainless steel rail guides

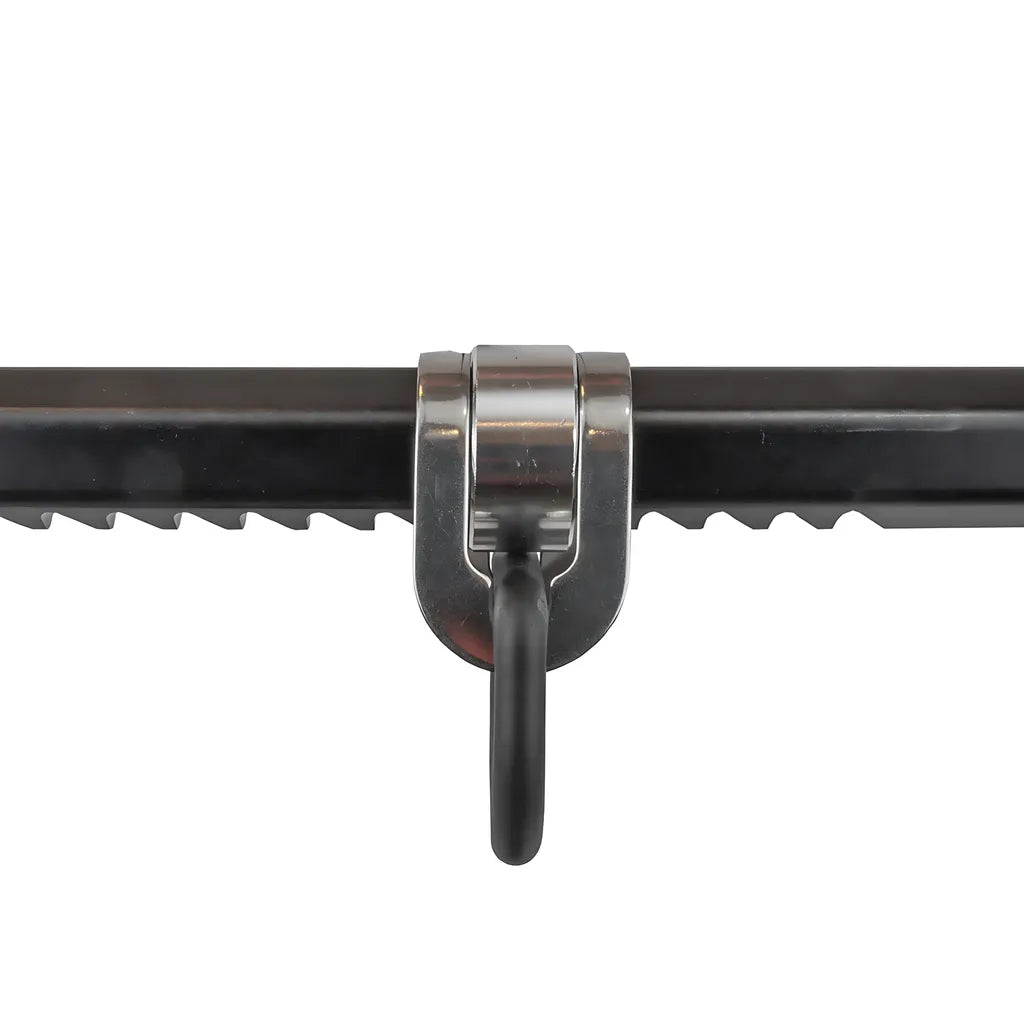

Coated steel D-ring attachment point
Abrasion, heat & chemical resistant nylon wheels

Materials: Aluminum; stainless steel; Ertalon® nylon wheels; Coated steel D-ring
Weight: 7.1 lbs. (3.2 kg)
Beam Flange Width Range: 3.5"-14"
Beam Flange Thickness: Up to 1.75"
Minimum Breaking Strength: 5,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.1
OSHA Standards: 1926.502
Other Standards: CE 0321, EN 795:1996 (+A1:2000) Class B
