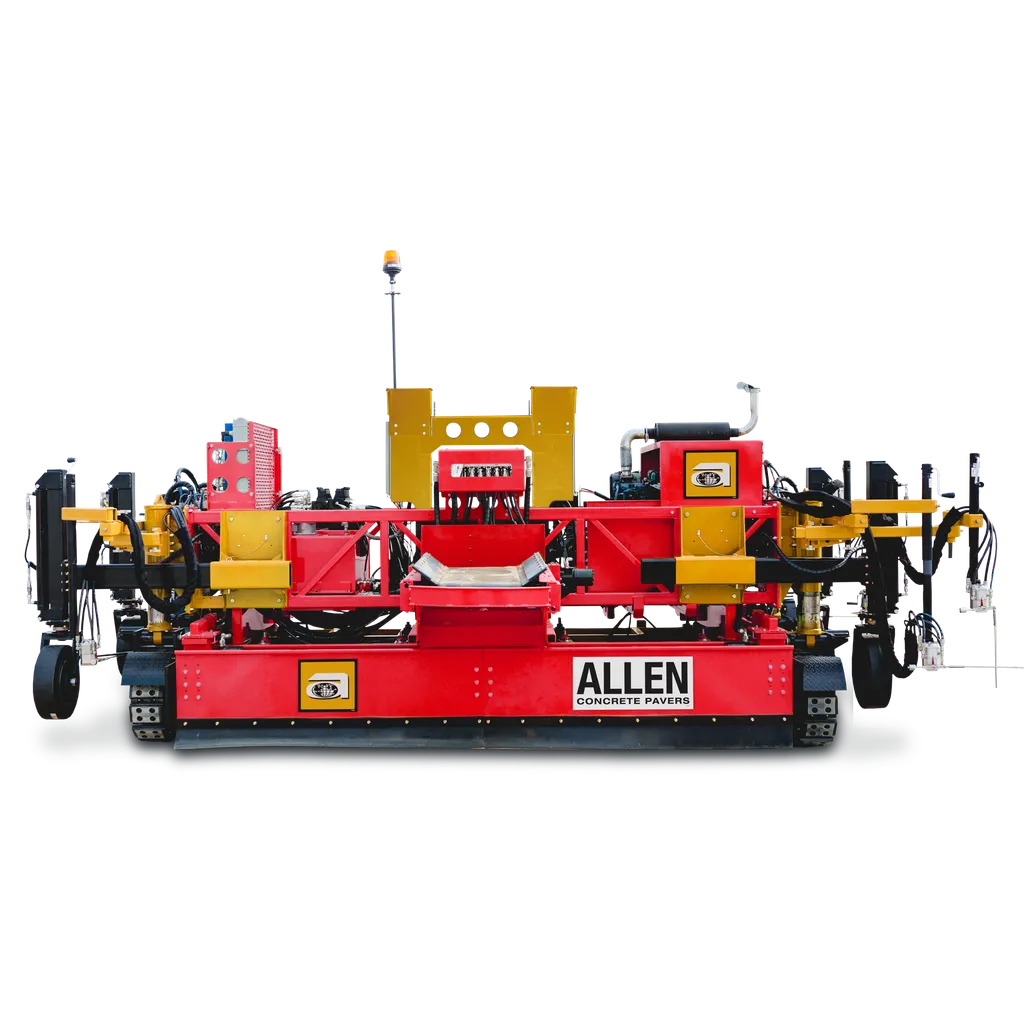

The Allen 800 Polyester Concrete Paver was designed for the polyester concrete overlay market and is used to pave overlays on roadways and bridge-deck surfaces. The standard option conveyor brings material straight from the truck to the auger chamber and disperses it to the paving pan (equipped with Minnich Pan Vibrators ™) where the material is “screeded” to grade and followed by tining rake to put a texture on the final surface. This process is complete in a single pass, making this paver ideal for any polyester overlay project. With the travel dolly wheel option, this unit can be mobilized in a timely manner for open traffic lanes. This unit has a built-in “cross-slope” grade sensing system to make sure the final surface elevations meet all project specifications.

Specifications:

• ENGINE: HATZ T4
• HORSEPOWER CLASS: 74 hp / 55.2 kW
• FUEL TYPE: Diesel
• FUEL RESERVOIR: 24 gal / 90.8 L
• PAVING WIDTHS: 12 ft / 3.6 m
• PAVING DEPTH: Up to 6 in / 15.2 cm
• VIBRATION SYSTEM: 6 Hydraulic Pan Vibrators
• CRAWLER TRACK LENGTH: 6.4 ft / 2 m
• HYDRAULIC OIL RESERVOIR: 42 gal / 159 L
• HEAVY DUTY MATERIAL CONVEYOR: Standard
• WEIGHT: 14,000 lbs / 6,350 kg
