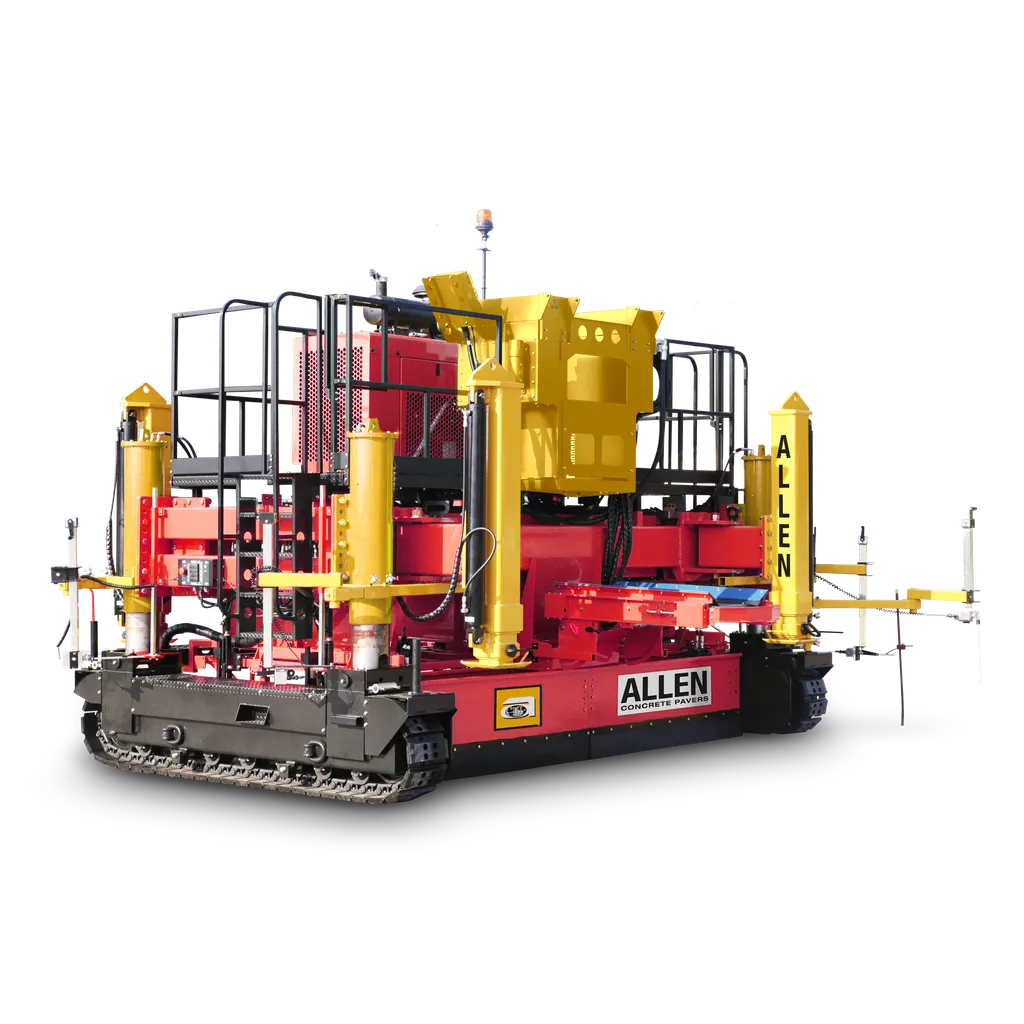

The Allen 1600 Polyester Concrete Paver is also designed for the polyester concrete overlay market and is used to pave overlays on roadways and bridge-deck surfaces, but with the ability to be used in a 12 foot or 16 foot application. The optional conveyor brings material straight from the truck to the auger chamber and disperses it the paving pan (equipped with Minnich Pan Vibrators ™) where the material is “screeded” to grade, followed by a tinning rake to put a texture on the final surface. This process is complete in a single pass, making this paver ideal for any polyester overlay project. This unit also has a built-in “cross-slope” grade sensing system making sure the final surface elevations meets the project specifications.

Specifications:

• ENGINE: Air-Cooled KOHLER CH440 or KOHLER CH740
• FUEL TYPE: Gasoline
• HORSEPOWER CLASS: 14 hp or 23.5 hp / 10.4 kW or 17.5 kW
• MAIN FRAME: 2x 15' x 36' Truss Sections w/ Leg Rail
• PAVING PROFILE HEADS: 2x 15' sections / 4 Paving Profile Heads comes with Base Machine
• BOGIES: 36" Power Drive Bogie Frames w/ Cupped Wheels and 36" Idle Bogie Frames w/ Cupped Wheels
