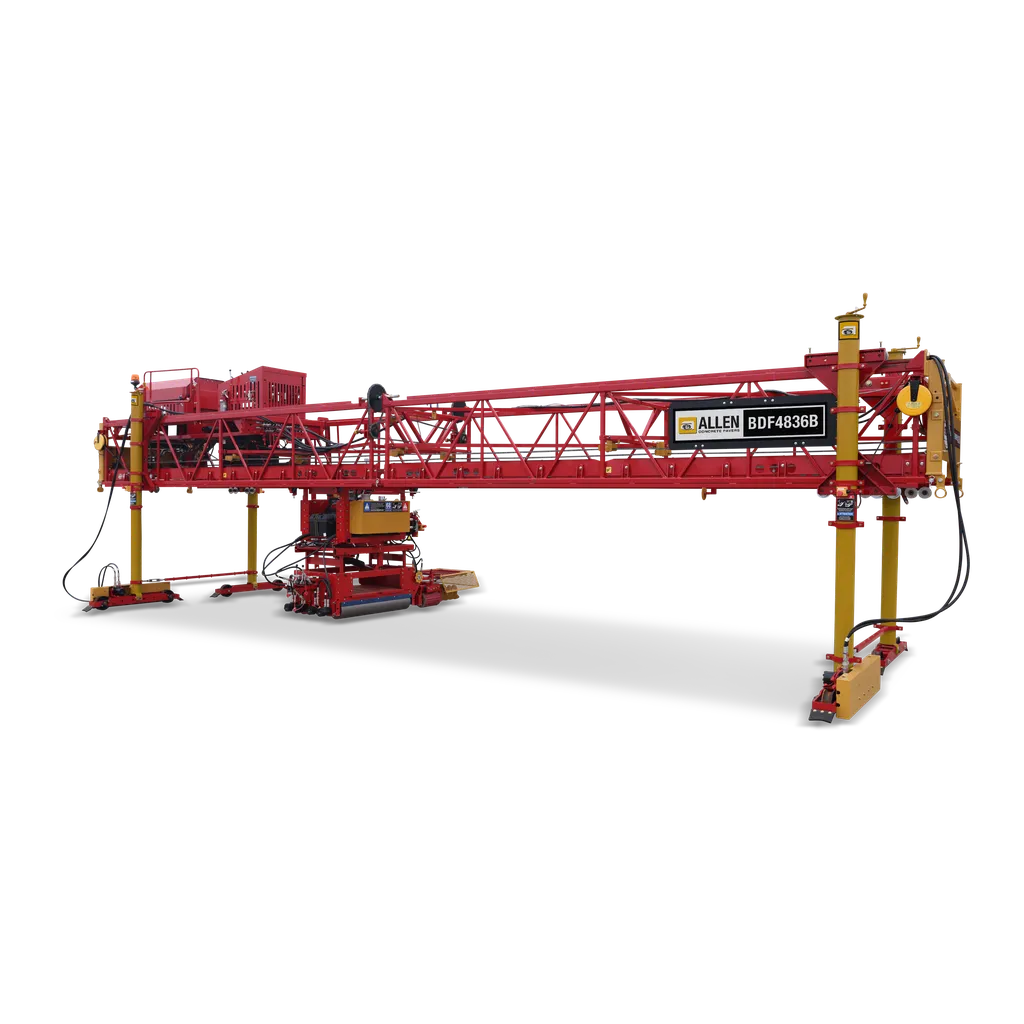

The Allen 4836 Bridge Deck Finisher can extend out to 90 feet and pave a width of 84 feet. This machine can be used on any full-depth bridge deck or overlay surface and can be equipped with a spud vibrator to pave any roadway. Additional frame sections and machine options allow the contractor to customize the paver to fit any project specifications.

Specifications:

• OPERATOR'S CONSOLE ENGINE: Air Cooled KOHLER CH740 / 725 cc
• HORSEPOWER CLASS: 23.5 hp / 17.5 kW
• FUEL TYPE: Gasoline (Diesel option available)
• PAVING CARRIAGE ENGINE: Air Cooled KOHLER CH740 / 725 cc
• HORSEPOWER CLASS: 23.5 hp / 17.5 kW
• FUEL TYPE: Gasoline (Diesel option available)
• MAXIMUM WIDTH: 90 ft / 27.4 m
• PAVING ROLLERS: Dual 48 in / 121.9 cm
• AUGERS: Dual 8 in Adjustable / 203 mm
• SECTION WIDTHS AVAILABLE: 3, 4, 6, 12, and 15 ft / 1, 1.2, 1.8, 3.7, and 4.6 m
• BOGIES-DRIVER: Two Cupped Wheels - 36 in / 91.4 cm
• BOGIES-IDLE: Two Cupped Wheels - 36 in / 91.4 cm
• LEGS HEIGHT ADJUSTMENT: 44 in (Vertical Adjustment) / 111.8 cm
• LEGS (WITH SOLID LEG PLATES): Manual 6 in or Powered 6 in / Manual 15.2 cm in or Powered 15.2 cm
