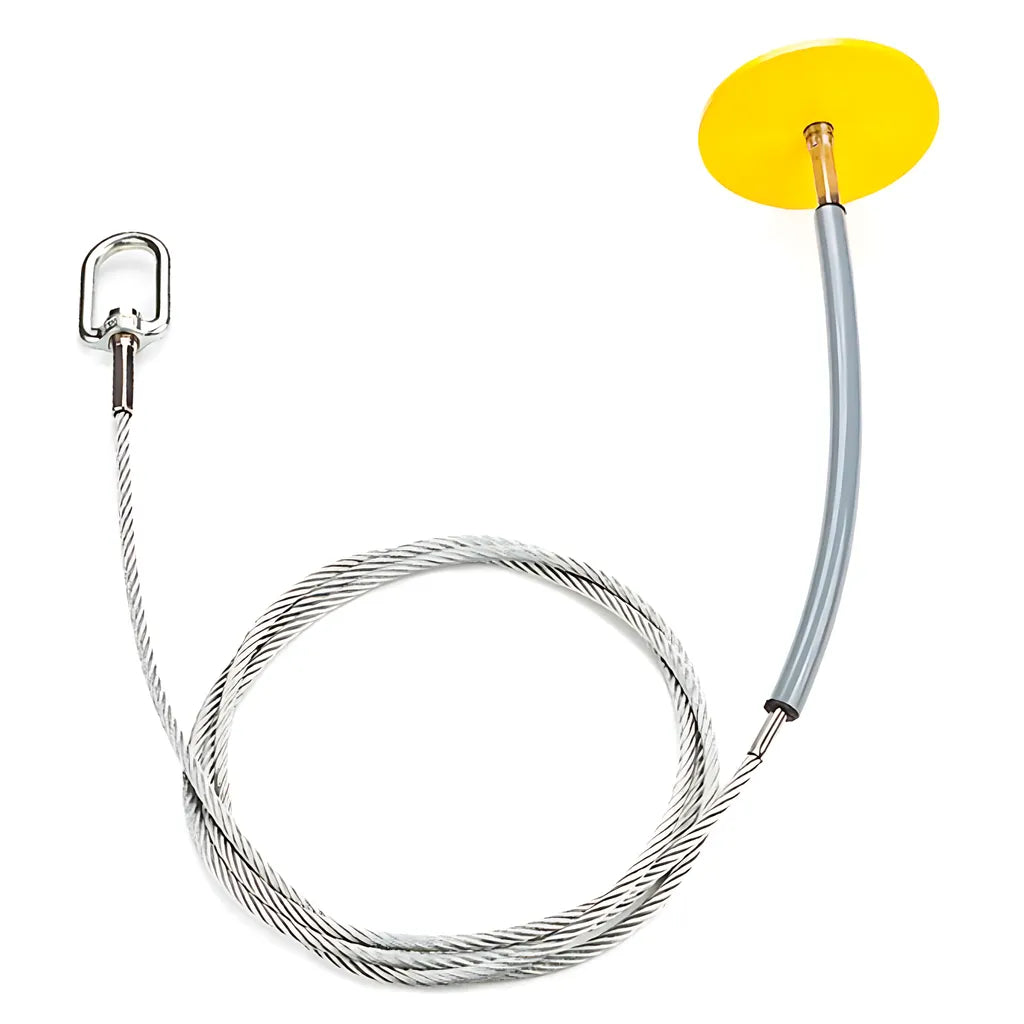

The Werner A710004-1 Drop Through Anchor is a 5,000lb capacity overhead anchorage connector. It is designed to drop through a 1.75 inch to 2 inch opening that is compliant with all applicable fall protection requirements. This anchorage connector features a 1/4 inch thick steel plate with a 1 foot cable attached to a swivel ring, and can be attached to concrete floors, steel girders and grates.

• Designed to drop through overhead opening for anchorage
• 4 inch plate with 1 foot cable
• Can be used with concrete floors, steel girders, and grates
• Minimum Breaking Strength (MBS): 5,000 pounds
• Meets ANSI and OSHA standards

Dimensions
Approx Product Length (in): 12
Approx Product Width (in): 4
Approx Product Height (in): 4
