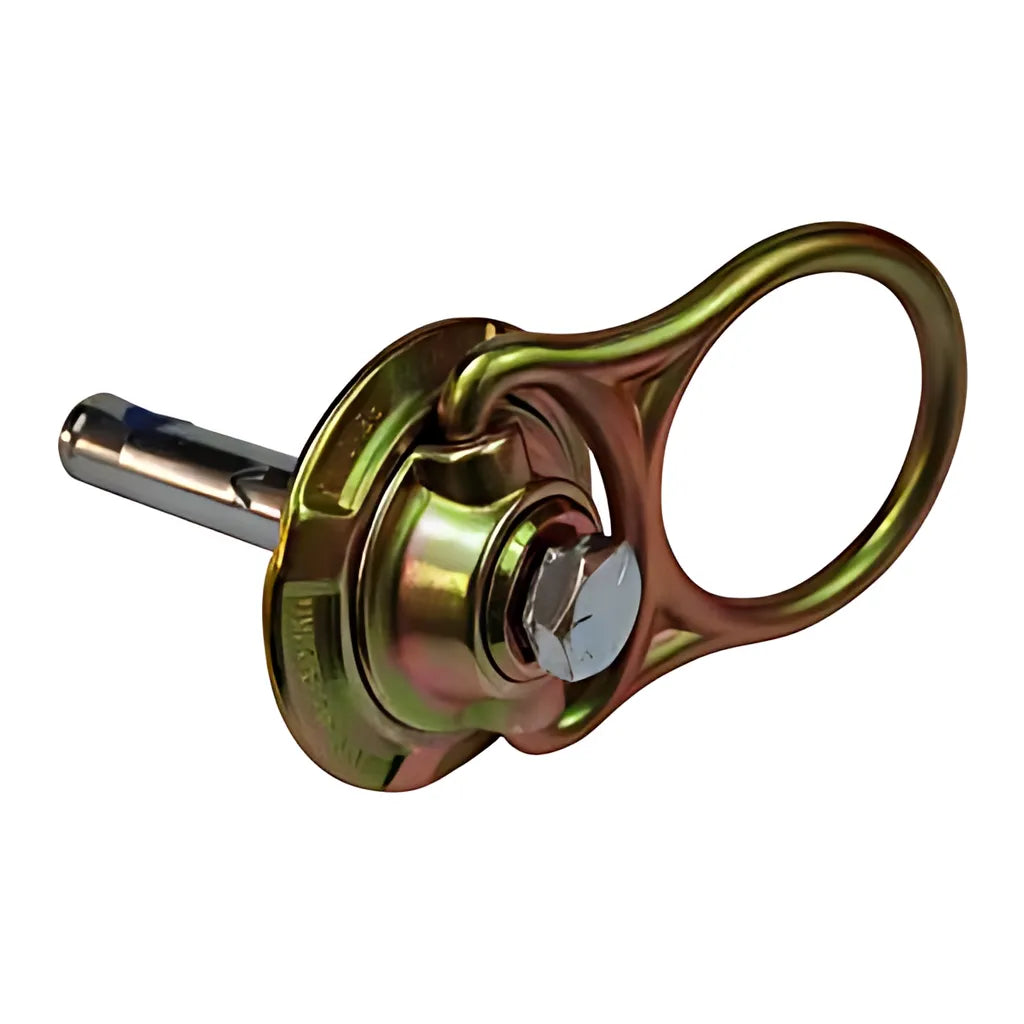

The Werner A510011 5K Mega-Swivel Concrete Anchor is a robust anchorage bolt for use in concrete applications. The bolt requires a pre-drilled hole of 1/2 inch and 4.5 inches depth in 3000 psi concrete with minimum concrete thickness of 7 inches.

• Robust steel design with 360 degree swivel of the forged D-ring
• Drill hole of 1/2 inch with 4.5 inch depth
• Minimum 3000 psi concrete and 7 inch thickness
• Minimum Breaking Strength (MBS): 5,000 pounds
• Meets ANSI and OSHA Standards

Dimensions
Approx Product Length (in): 5.5
Approx Product Width (in): 3
Approx Product Height (in): 1
