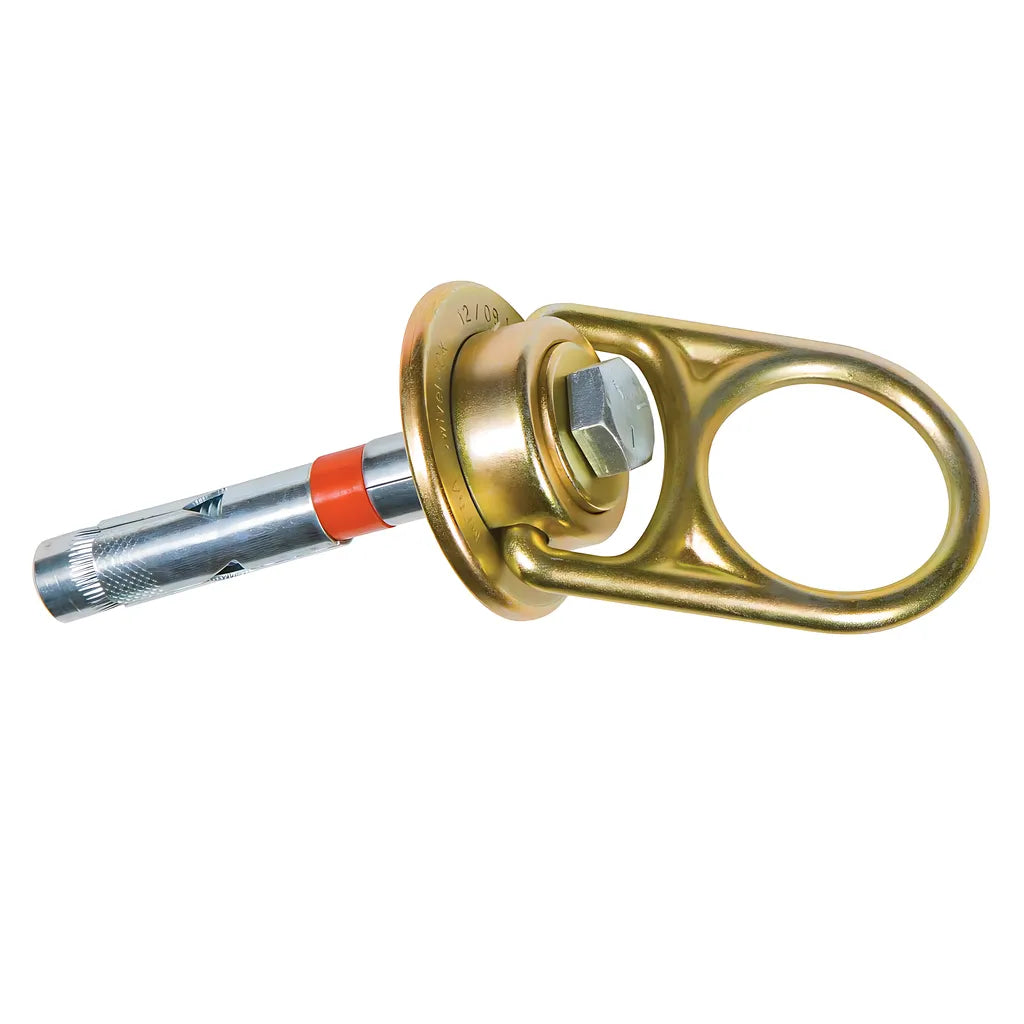

The Werner A510001 10K Mega-Swivel Steel Anchor is a robust anchorage bolt for use in concrete applications. The bolt requires a pre-drilled hole of 3/4 inch and 5 inches depth in 3000 psi concrete with minimum concrete thickness of 7 inches. The D-ring swivel provides a full range of motion at the anchorage.

• Robust steel design with 360 degree swivel of the forged D-ring
• Drill hole of 3/4 inch with 5 inch depth
• Minimum 3000 psi concrete and 7 inch thickness

Dimensions
Approx Product Length (in): 5.5
Approx Product Width (in): 3
Approx Product Height (in): 1
