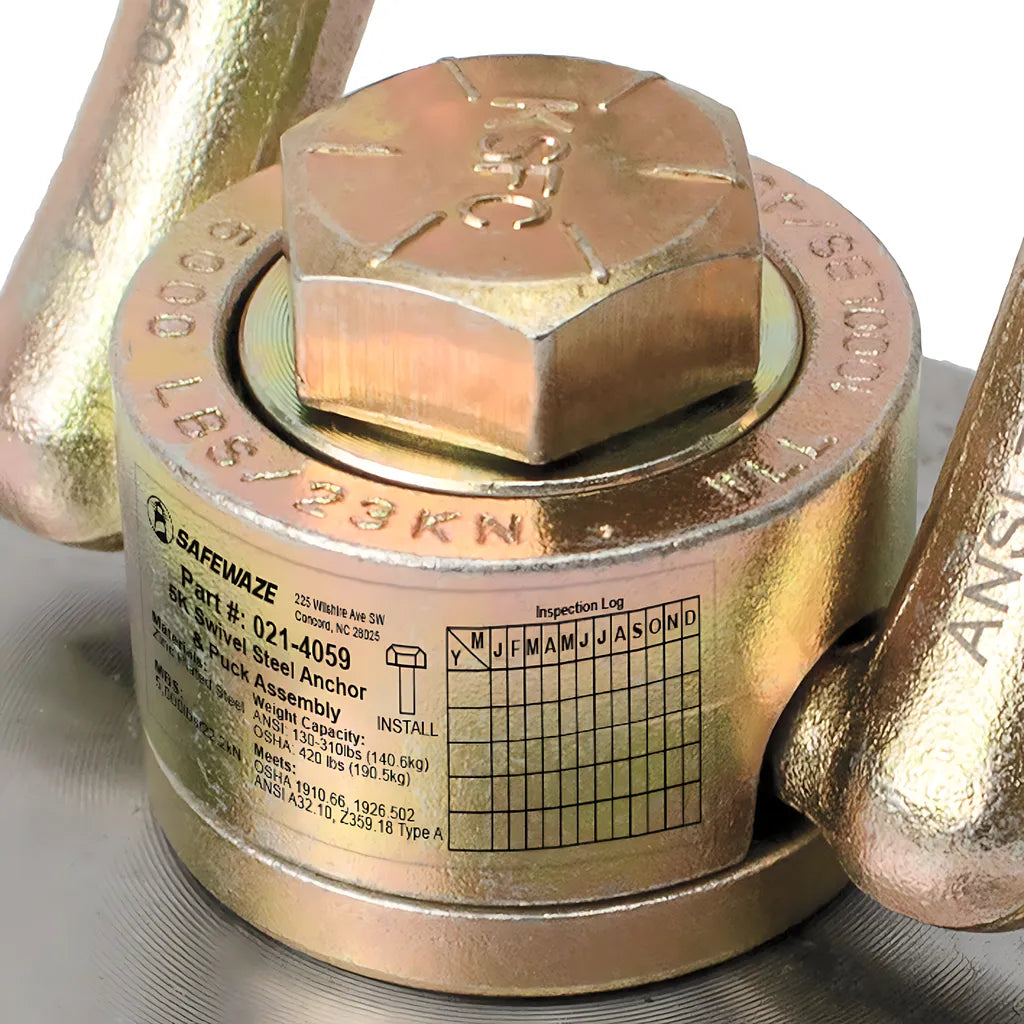

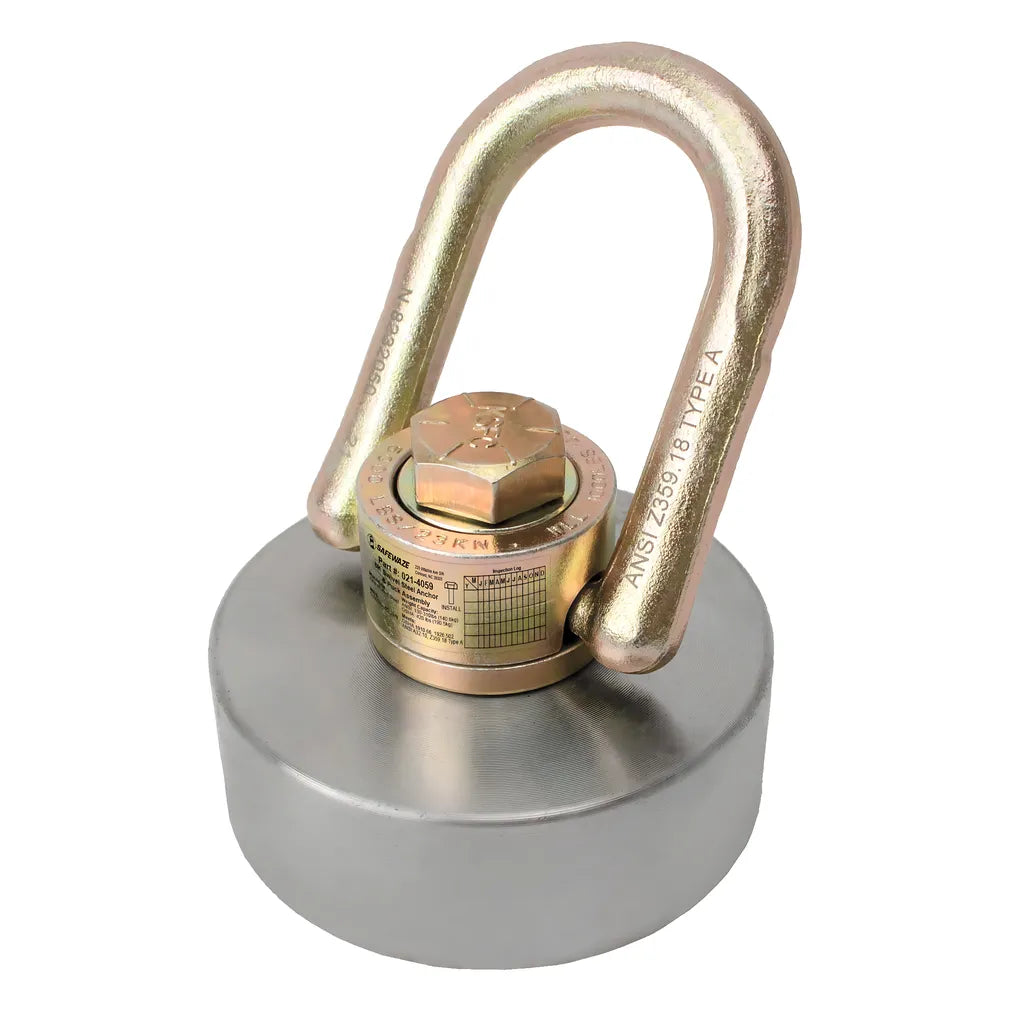

The 5K Swivel Anchor & Puck Assembly is a heavy duty all-steel anchor solution used in temporary or permanent installations. Built with corrosion resistant steel and equipped with a non-plated weld on puck plus 1/2" fastener.
180° / 360° rotating connection point for increased mobility
Heavy duty, corrosion resistant
Easy welding installation
Temporary or permanent
Materials: Zinc-plated steel, steel puck
Weight: 2.7 lbs. (1.2 kg)
Dimensions: 3.3" x 2.3"
Minimum Breaking Strength: 5,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.18 Type A, A10.32
OSHA Standards: 1926.502, 1910.66
