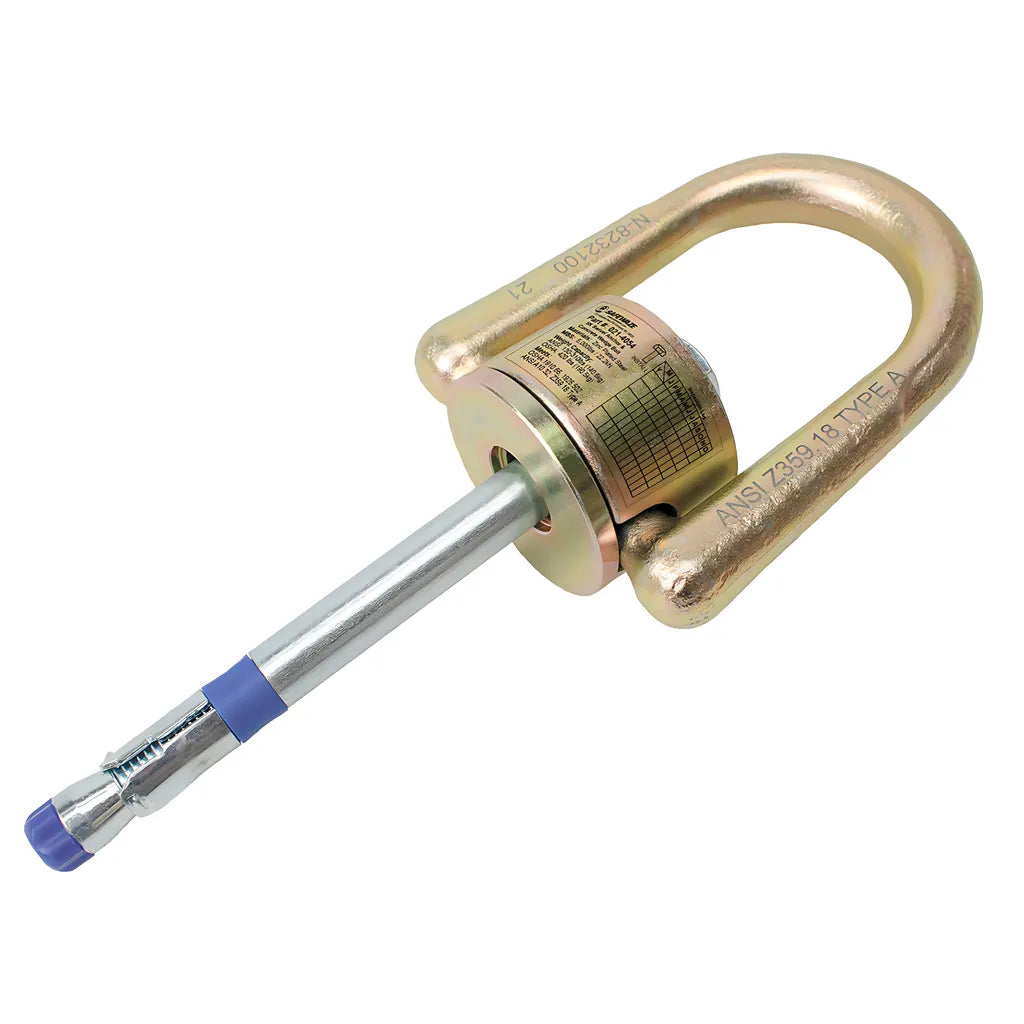

The 5K Swivel Anchor & Concrete Wedge Bolt is a heavy duty mobile solution for use as a single point anchor or part of a horizontal lifeline. Built with corrosive resistant materials and easily installed or removed in seconds.
180° / 360° rotating connection point for increased mobility
Engineered for superior durability
Installs quickly and easily
Temporary or permanent
Versatile vertical or horizontal use
Fits in 1” (25mm) concrete hole
Materials: High strength plated steel
Weight: 2.1 lbs. (952 g)
Length: 4.5" (114 mm)
Diameter: 3.5" (89 mm)
Minimum Breaking Strength: 5,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.18 Type A, A10.32
OSHA Standards: 1926.502, 1910.66
