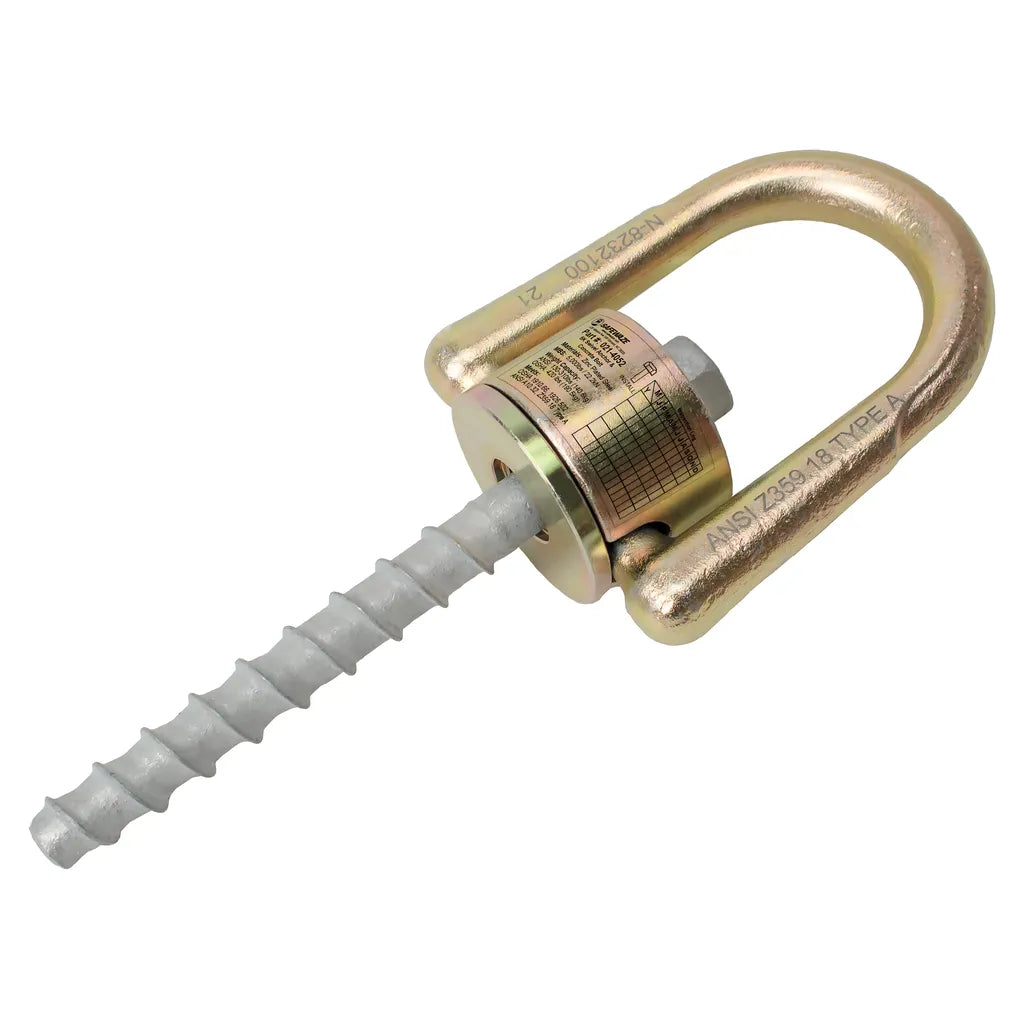

The 5K Swivel Anchor & Concrete Bolt is a heavy duty mobile solution for use as a single point anchor or as part of a horizontal lifeline system. Built with corrosive components and easily installed or removed in seconds.
180° / 360° rotating connection point for increased mobility

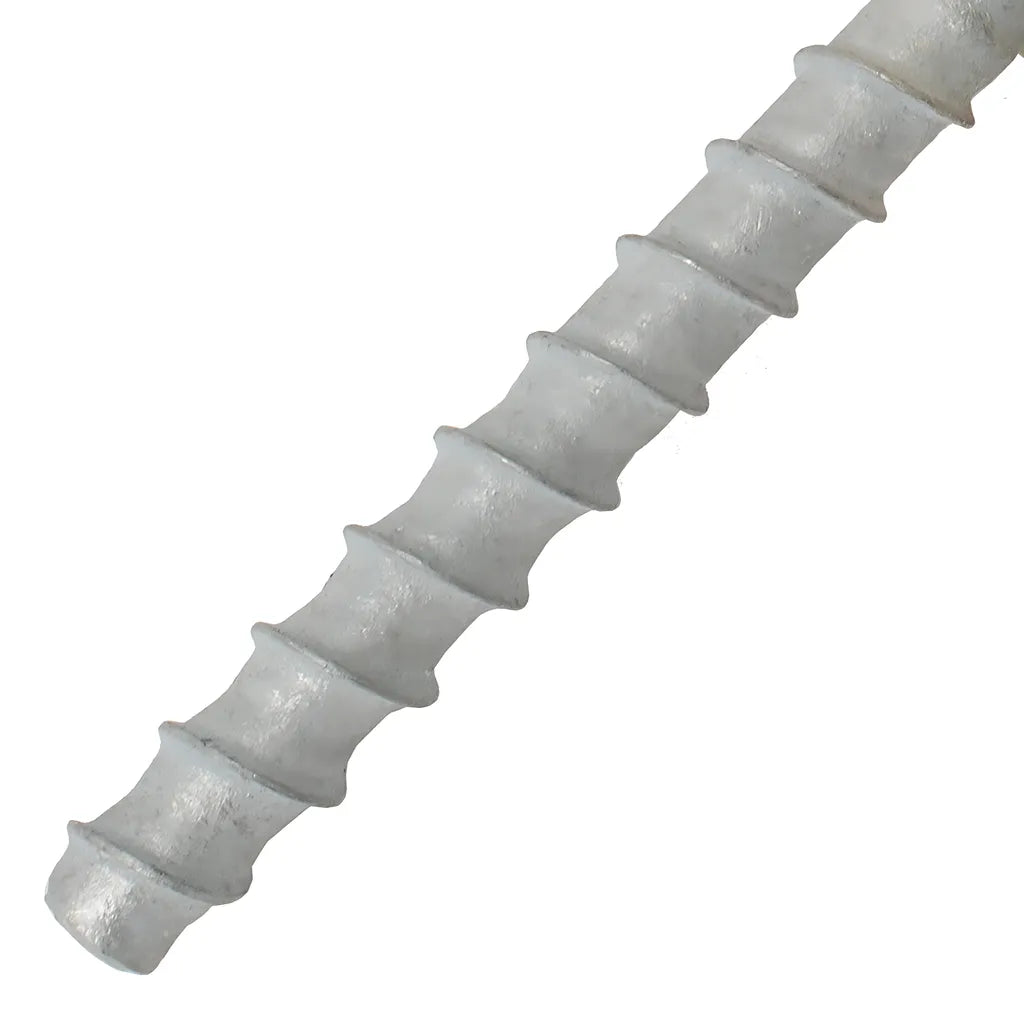

Galvanized 0.5" x 6" concrete bolt
Lightweight mobile design
Installs quickly and easily
Temporary or permanent
Versatile vertical or horizontal use

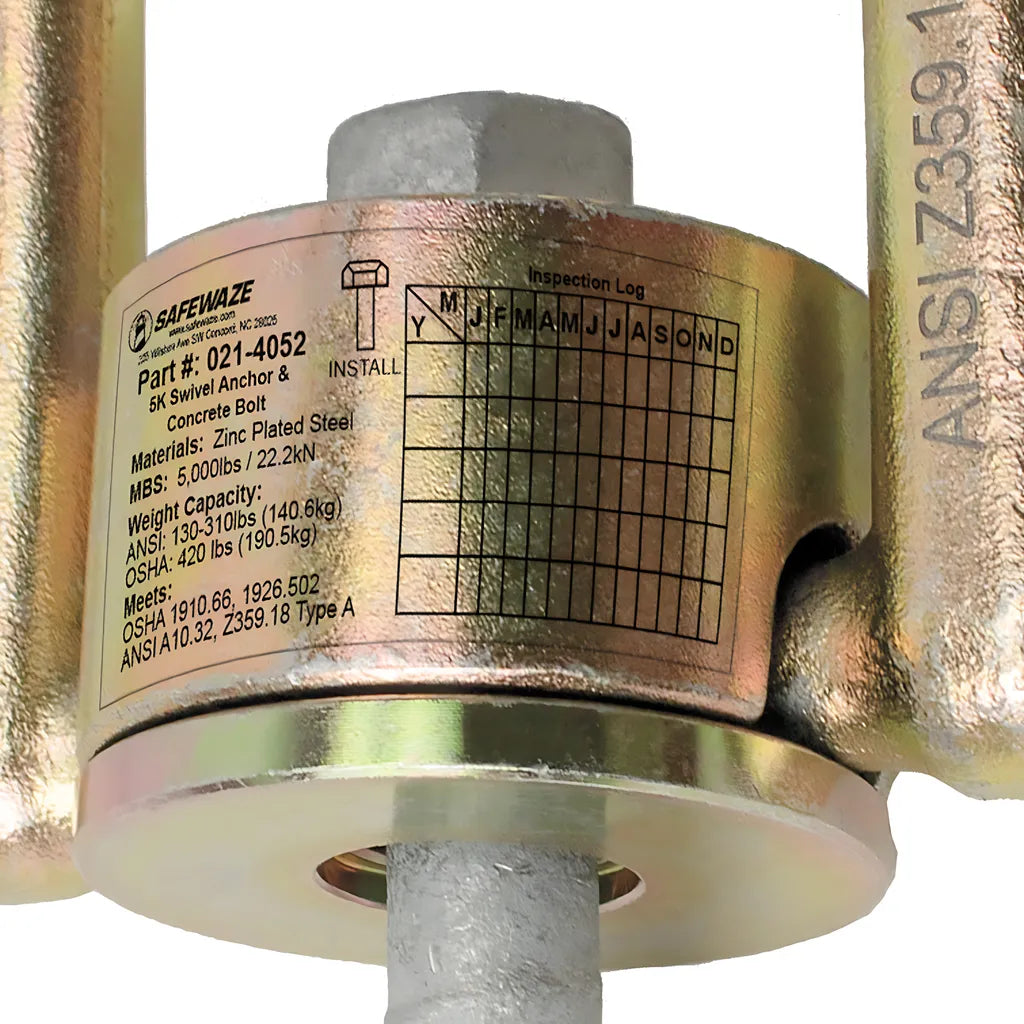

Materials: Zinc-plated steel
Weight: 2.1 lbs. (953 g)
Length: 6.3" (159 mm)
Diameter: 0.8" (19 mm)
Minimum Breaking Strength: 5,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.18 Type A, A10.32
OSHA Standards: 1926.502, 1910.66
