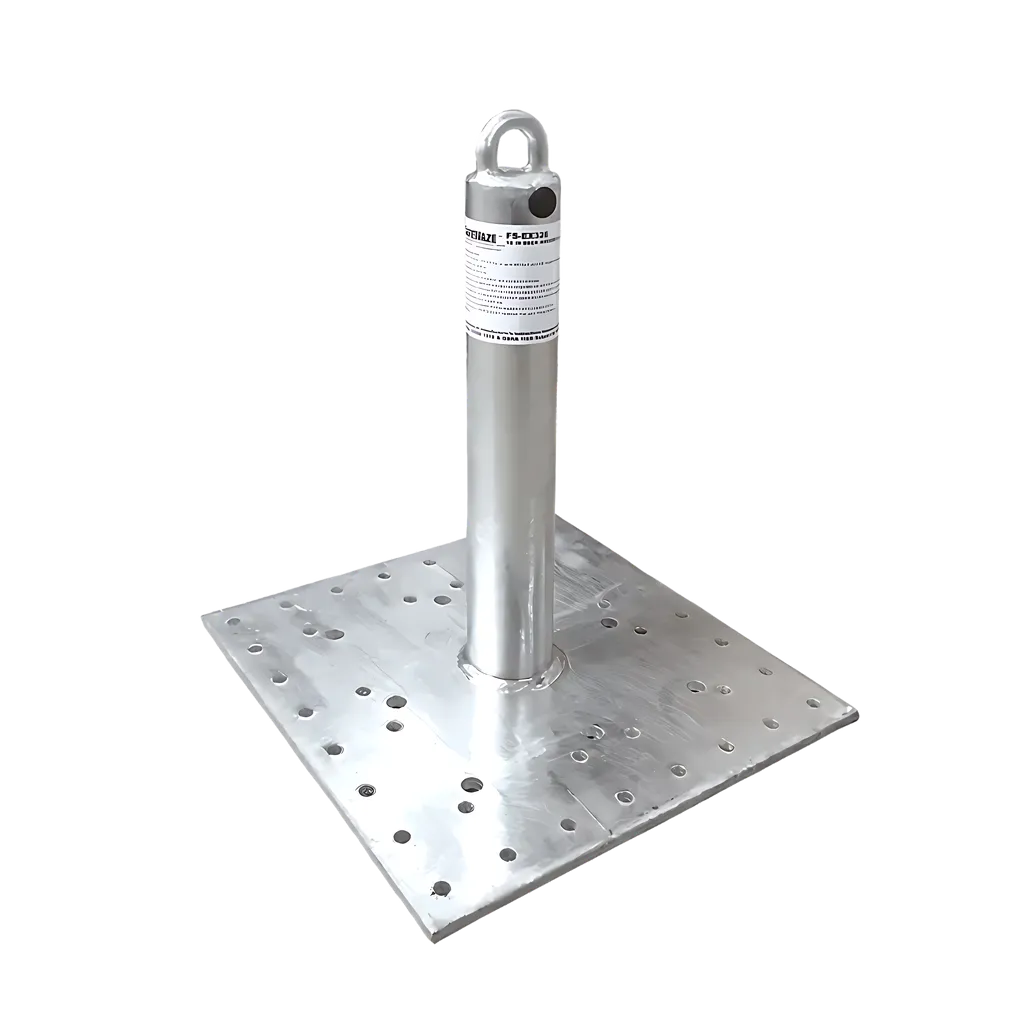

The 18" Post Anchor is a fixed, permanent anchor used as a single point anchor or with a horizontal lifeline system. This anchor can be installed on wood, steel or concrete structures.
For use on wood, steel, and concrete decks
Corrosion resistant galvanized coating


Materials: Galvanized steel
Weight: 36 lbs. (16.3 kg)

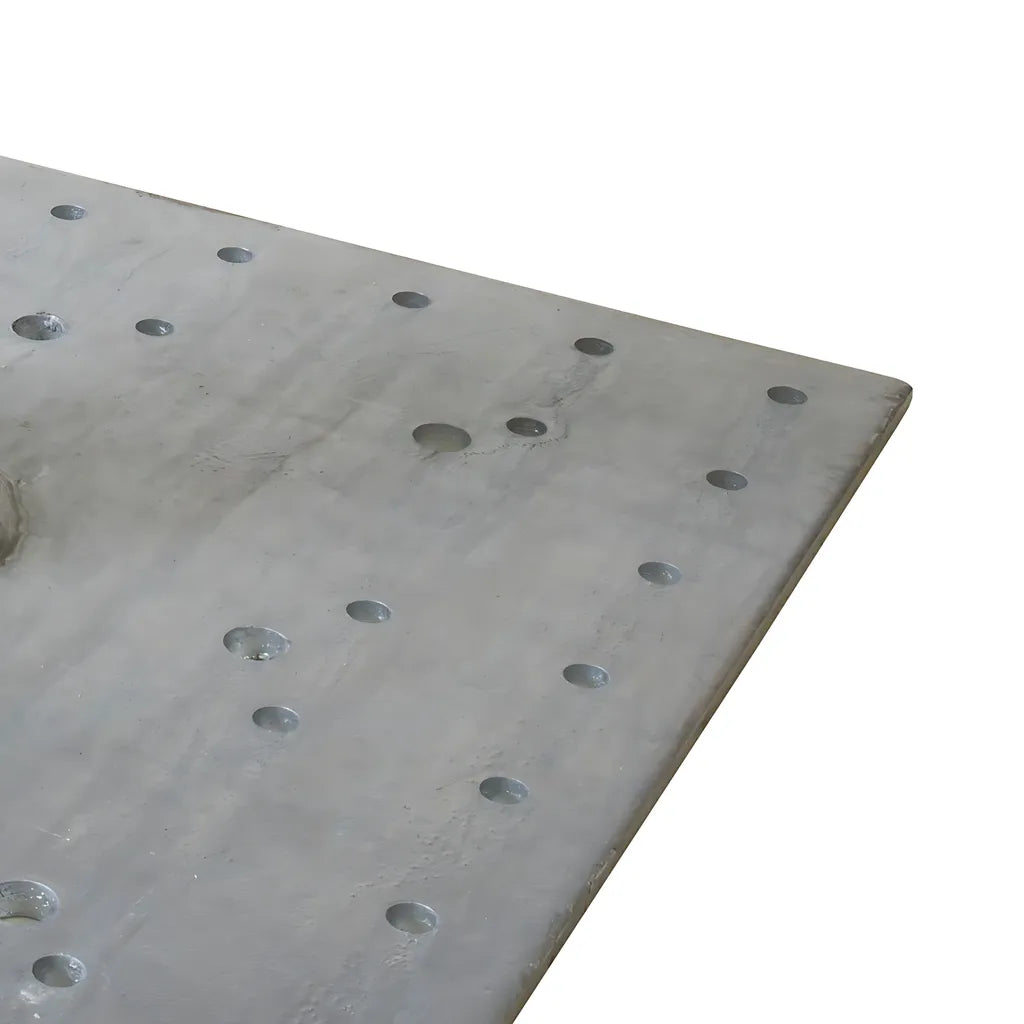

Baseplate: 16" x 16" (406 mm x 406 mm)

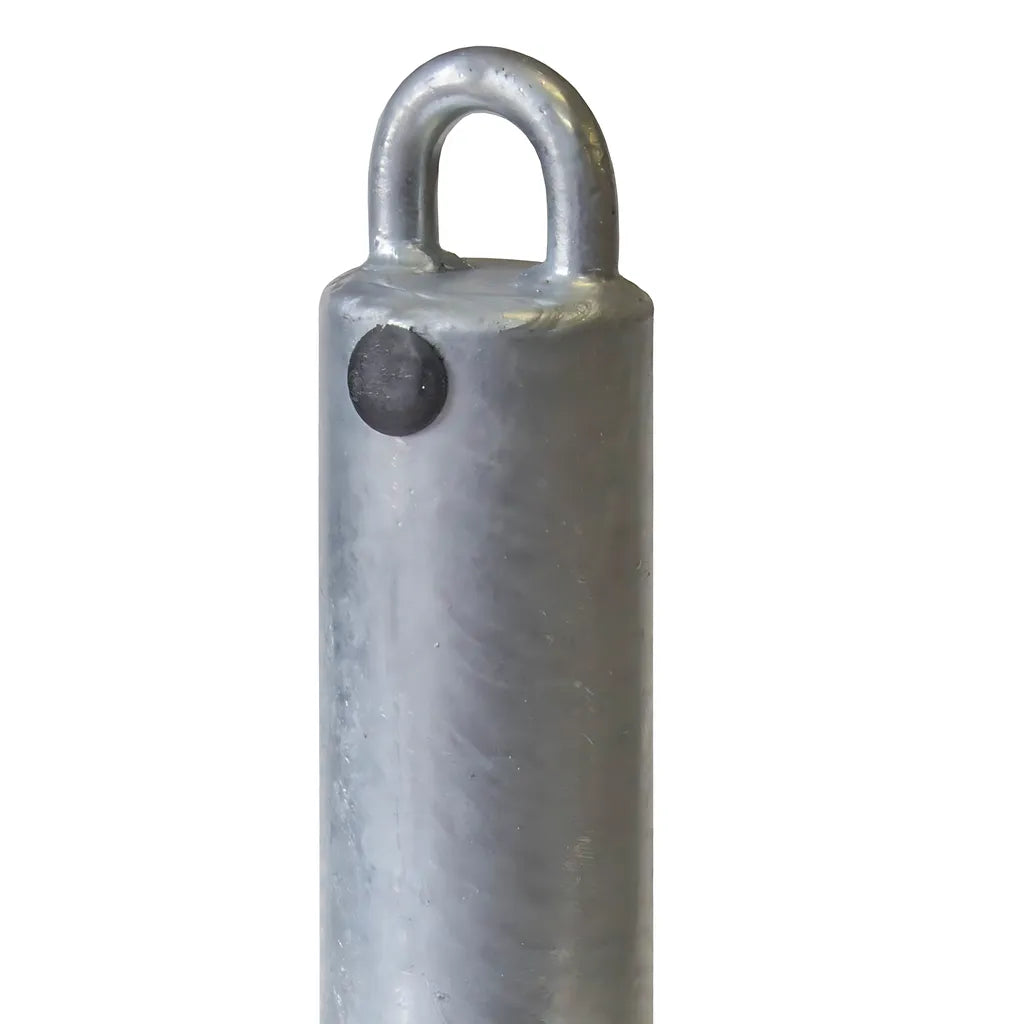

Height: 20” (508 mm) from baseplate bottom to top of loop
Minimum Breaking Strength: 5,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
OSHA Standards: 1926.502, 1910.140
