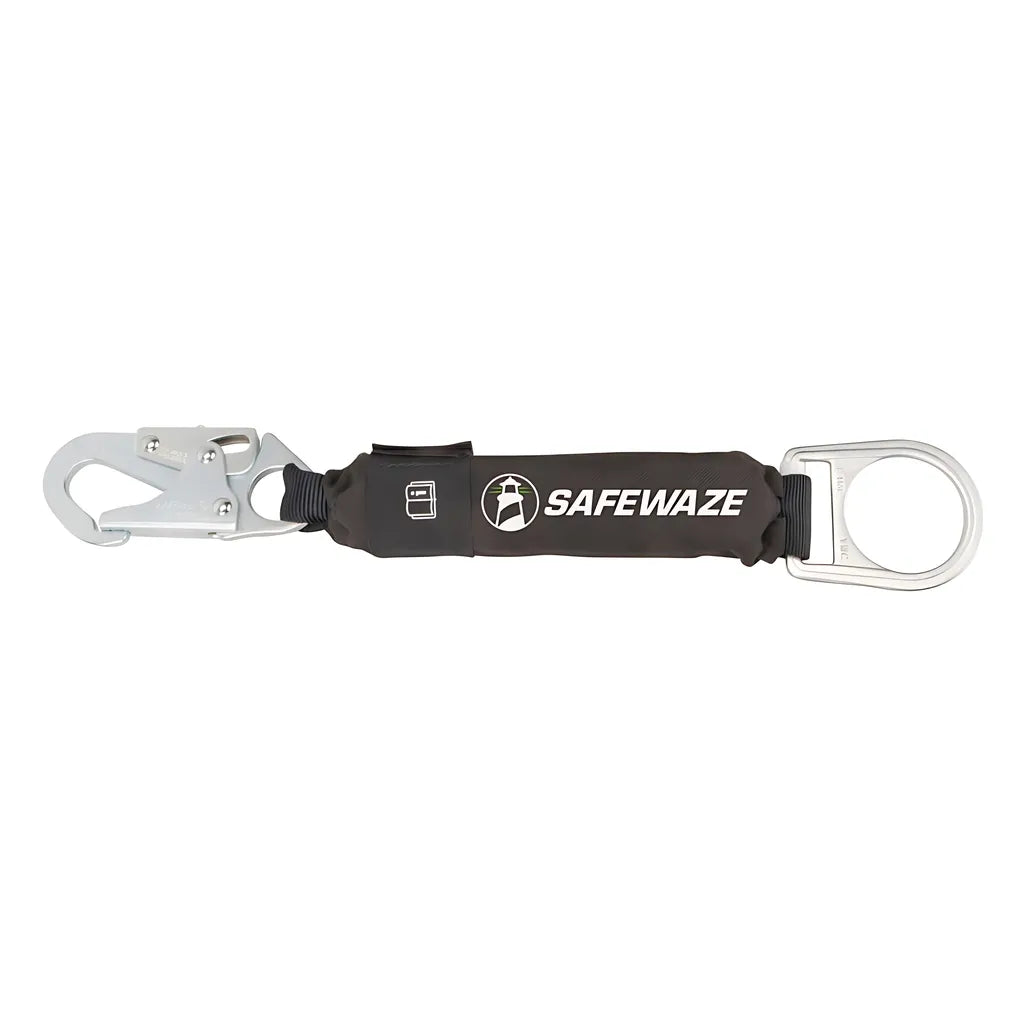

The 18" Energy Absorber extends the harness dorsal D-ring. Attach the snap hook to harness D-ring and connect the extended D-ring to the fall protection product not already equipped with an energy absorbing component. Important to consider the energy absorber in your free fall and fall clearance calculations.
18? length

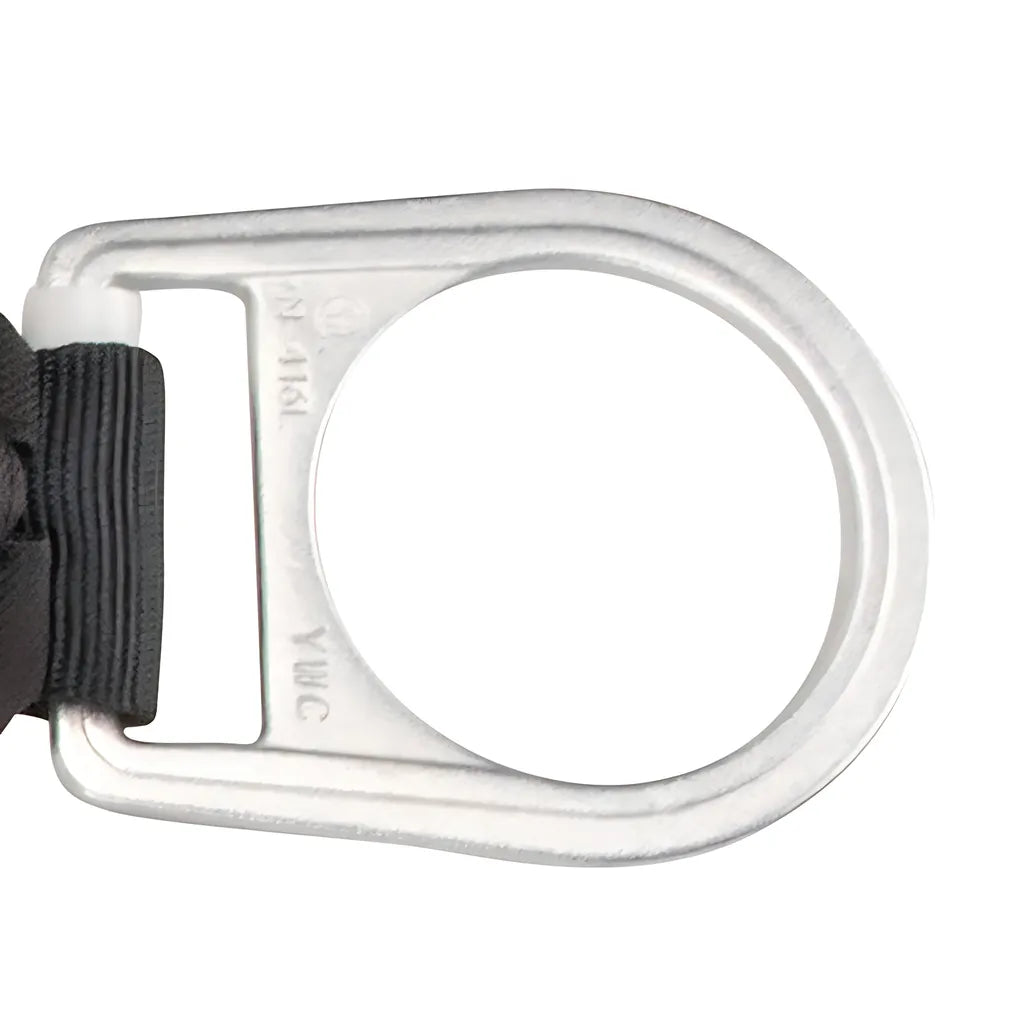

1 forged D-ring

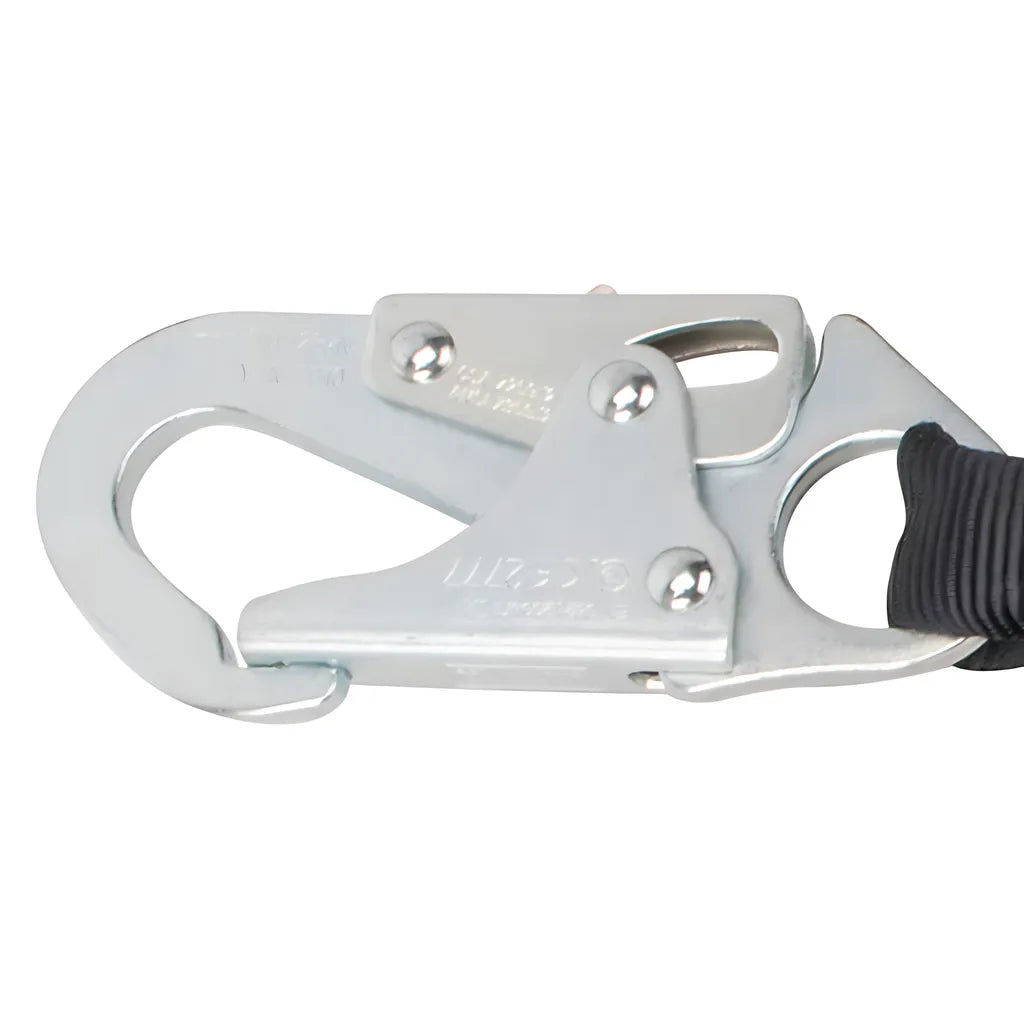

1 forged steel snap hook
Protective label cover

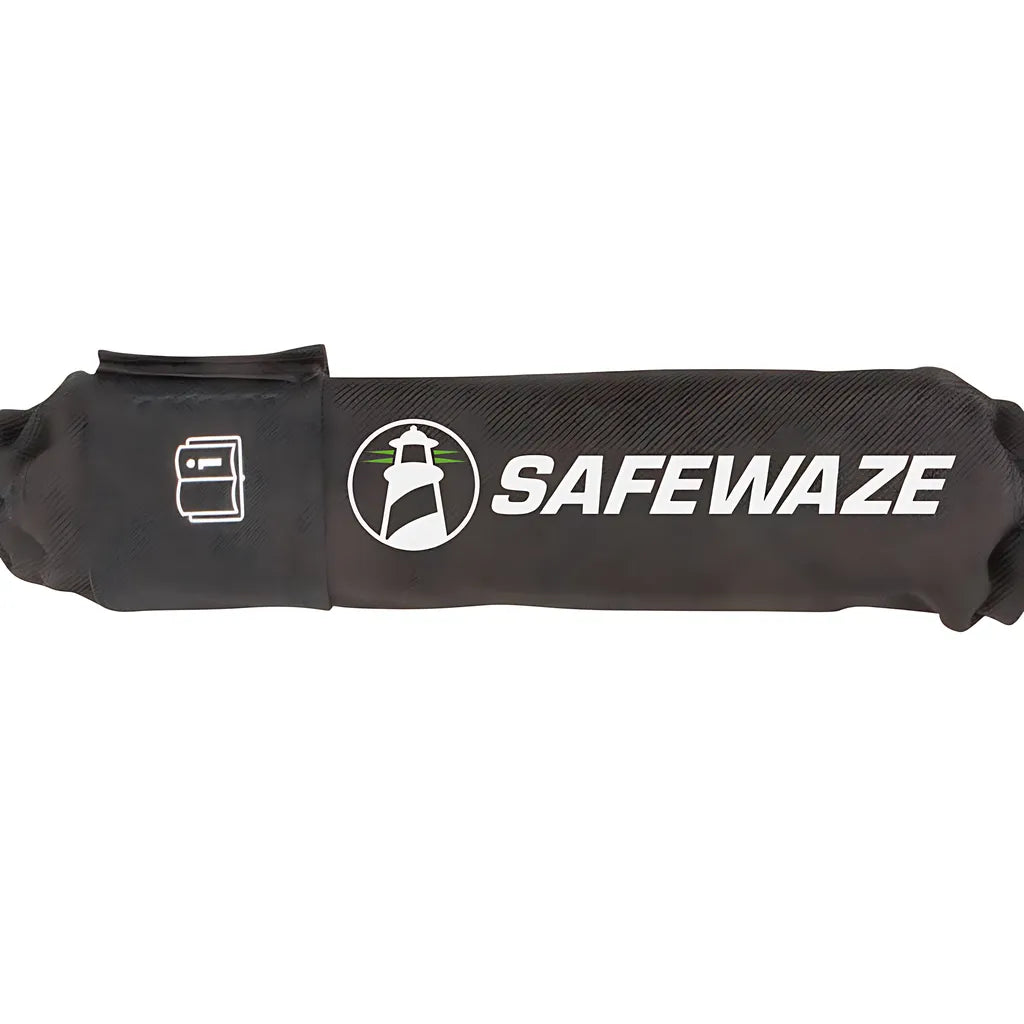

Durable shock cover
Attachment Points: 1 D-ring, 1 snap hook
Weight: 1.7 lbs. (.8 kg)
Length: 18" (0.5 m)
Breaking Strength: 5,000 lbs. minimum
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.3, A10.32
OSHA Standards: 1926.502
Material: Web
