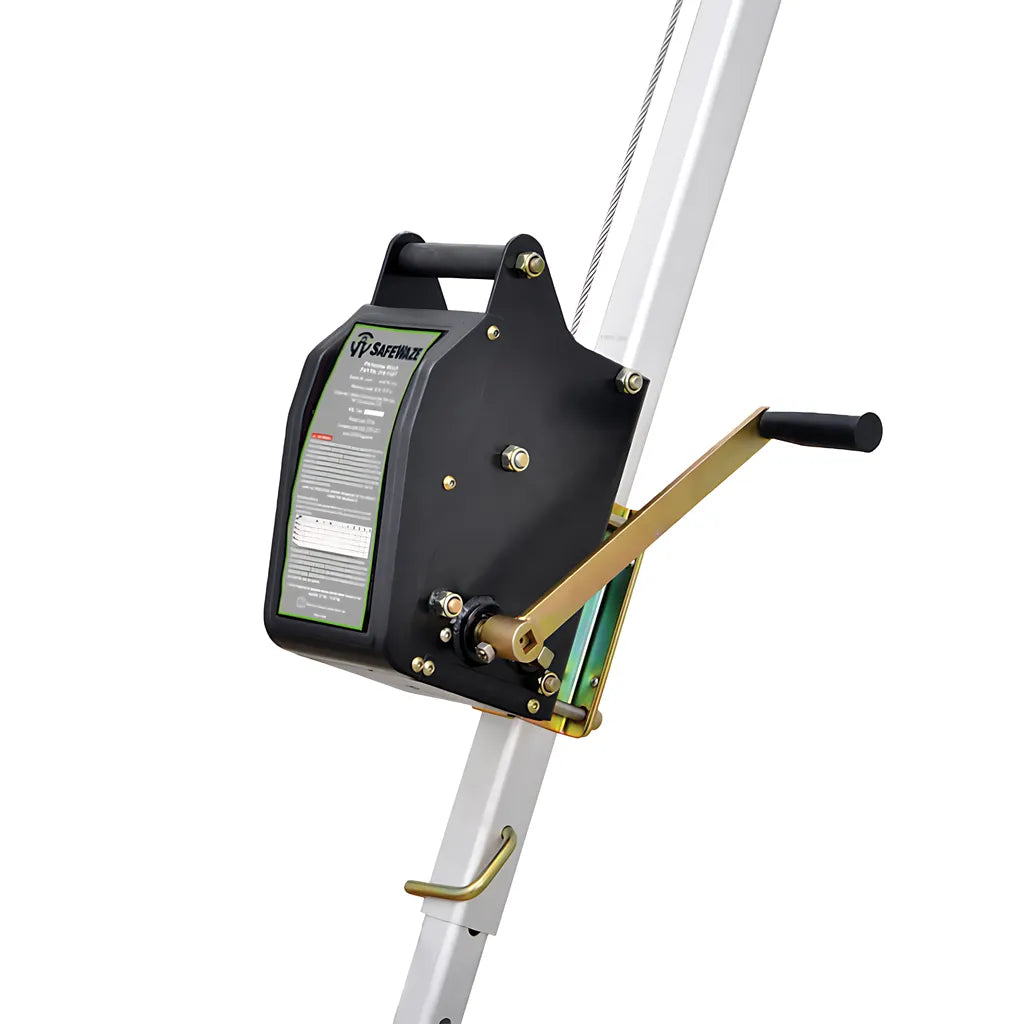

The 115' Personnel Winch is designed to safely and easily raise and lower workers in confined space applications. Built with high quality materials for smooth and reliable operation even in the toughest environments.
Plastic cable shroud
Free-wheel mode
6:1 gear ratio
Corrosion-resistant galvanized steel cable with swivel snap hook
Convenient attached carrying handle
Matching bracket 019-11010 must be on tripod before mounting (not included)
Materials: Steel, aluminum, stainless steel, galvanized cable
Weight: 39 lbs. (17.7 kg)
Weight Capacity: 130-310 lbs. (59-141 kg)
Material Capacity: Up to 620 lbs. (281 kg)
Max Operation Force: 30 lbs.
ANSI Standards: Z359.4-2013, Z117.1-2016, A10.32-2012
OSHA Standards: 1926.502, 1910.140, 1926.21
Mount: None
