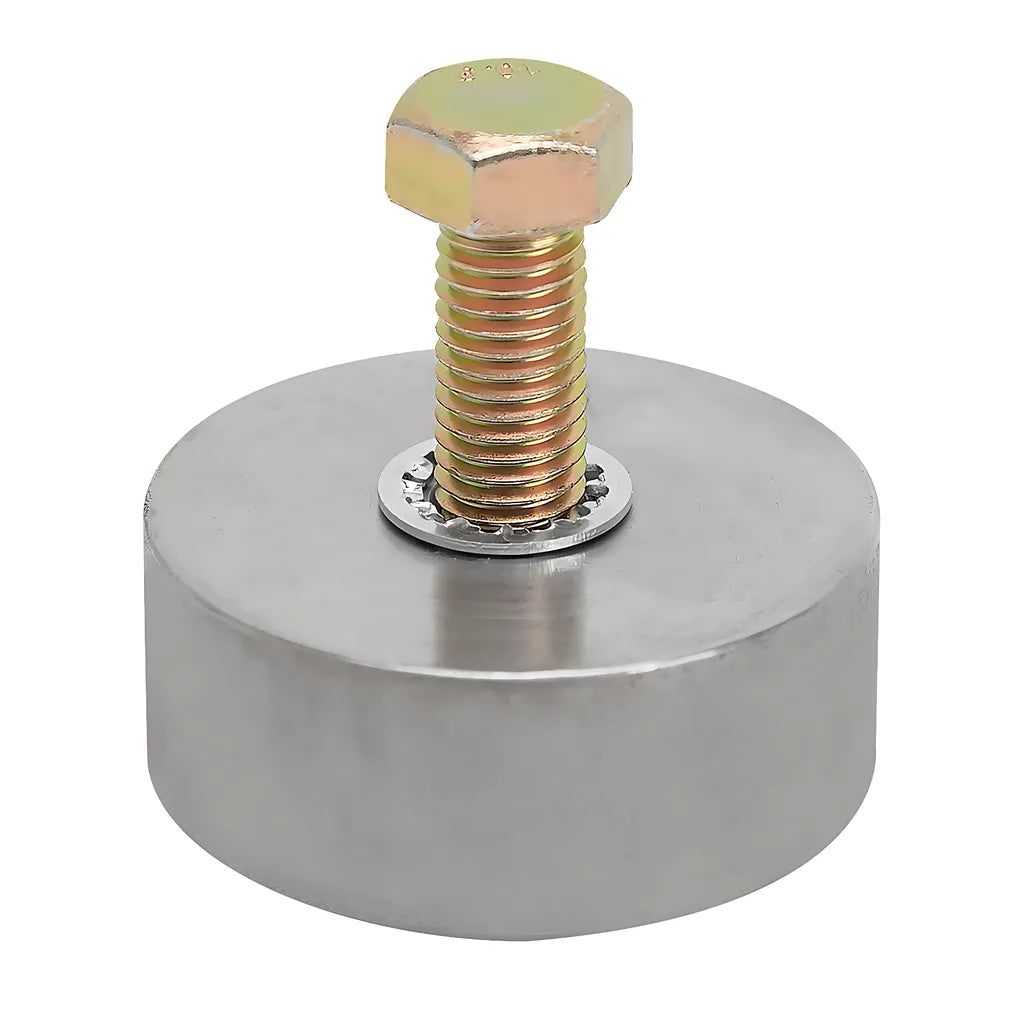

The 10K Steel Puck is used in temporary or permanent installations. Built with corrosion resistant steel and equipped with a non-plated weld on puck plus 5/8" fastener.
Heavy duty construction
Easy welding installation
Temporary or permanent
Material: Zinc-plated steel anchor, bolt and washer, steel puck
Weight: 2.3 lbs. (1.1 kg)
Dimensions: 1" x 2.8"
Minimum Breaking Strength: 10,000 lbs.
ANSI Weight Capacity: 130-310 lbs. (59-141 kg)
OSHA Weight Capacity: Up to 420 lbs. (191 kg)
ANSI Standards: Z359.18 Type A
OSHA Standards: 1926.502, 1910.66
