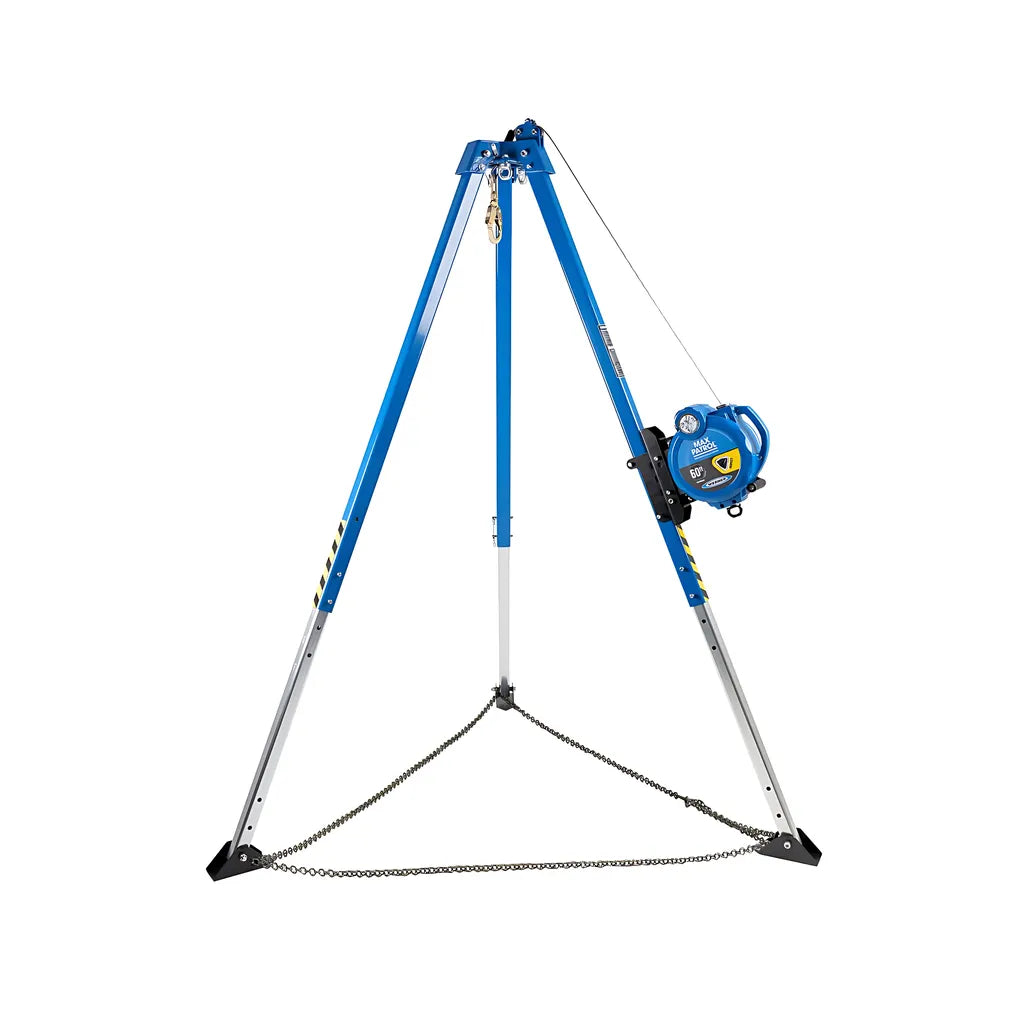

The Werner T700000XR Confined Space Kit includes the T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way Self-Retracting Lifeline with Rescue Capability (SRL-R) and T100008B Mounting Bracket that attaches the 60-foot 3-Way SRL-R to any leg of the tripod. The Tripod extends from 58-97-inches in height for installation over openings with a maximum diameter of 42-inches when fully extended and meets the requirements of ANSI Z359.18-2017 Type A. The 3-Way SRL-R is designed for a single user with a capacity up to 310 pounds total working weight and has an aluminum housing with a lifting ratio of 6.5:1. When tested to the requirements of the ANSI Z359.14-2021 standard for Class 1 for SRLs, the 3-Way SRL-R has an average arrest force of 1,350 pounds and a maximum arrest distance of 24-inches.

• Confined Space Kit includes T100108 8-foot Aluminum Tripod, the T410060 60-foot 3-Way SRL-R, and T100008B Mounting Bracket
• High strength, lightweight Aluminum Tripod extends from 58-inches to 97-inches in height
• Tripod meets ANSI Z359.18-2017 Type A and OSHA regulations
• The 60-foot 3-Way SRL-R has a maximum arrest distance of 24-inches
• 3-Way SRL-R meets ANSI z359.14-2021 Class 1 SRL-R and OSHA Standards
• The 3/16-inch steel cable on the 3-Way SRL-R has an 8,100 lb tensile breaking strength

Dimensions
Approx Product Length (in): 117.6
Approx Product Width (in): 39.6
Approx Product Height (in): 96
